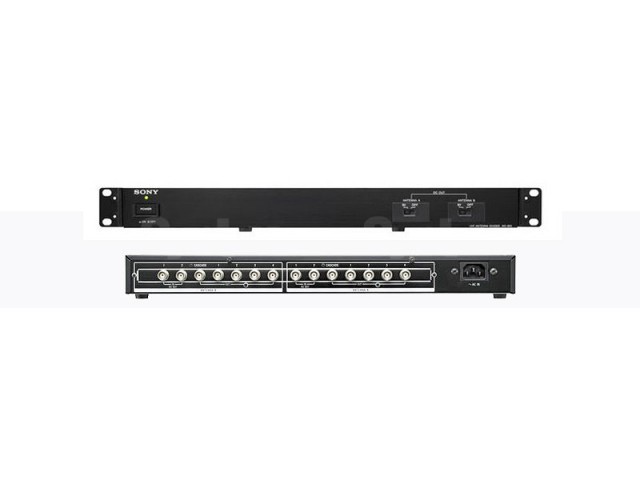

Sony WD-850A

UHF antenna splitter for DWX digital wireless system. It provides different outputs for four receivers. Allows multichannel operation in combination with MB-8N and WRU-8N or MB-X6 and WRU-806B. The cascaded output can be used for additional antenna splitters or recievers. Two pairs of antenna inputs for four AN-820A antennas will extend the operating area of the wireless microphone system.

Main features:

• Frequency range: 470MHz - 862MHz
• Distribution Channel: Inputs: 2 pairs Outputs: 4 pairs
• Input/output impedance: 50 ?
• Cascade Output: 1 pair
• Power supply for antenna amplifier (fed via antenna input connectors): DC 9 V/OFF switchable
• Power input: 16 W
• Dimensions: 482 x 44 x 300 mm
• Weight: 4.6 kg
• RF muting (squelch) level: 5 dBu, 10 dBu, 15 dBu or OFF
• Audio output level: -58 dBm at reference deviation
• Audio output connector: SMC9-4S (Sony 4-pin) (2), balanced
