SSL UF8

UF8 is the culmination of SSL’s 40+ year legacy of mastering production workflows and studio ergonomics built into generations of classic SSL consoles. This depth of understanding of studio production, combined with decades of engineering excellence, delivers a premium finish tactile USB controller that distills SSL workflow and quality.

Advanced Workflow

UF8 offers intuitive features that are developed from a true understanding of production workflow; Simultaneous control of multiple DAWs, multi-purpose Master Encoder for DAW timeline navigation, track banking and mouse wheel emulation for precision, hands-on control.

Dedicated automation section and dual-purpose Selection Keys permit rapid access to select functions; solo and mute clearing in Pro Tools® and Logic Pro X®. New CHANNEL and PLUG-IN control modes provide enhanced workflows for those using UF8 with Pro Tools® - easily access your sends and plug-ins without slowing down your creativity.

Features

• 8 x 100 mm high quality, touch-sensitive motorised faders.
• 8 x rotary endless rotary encoders with push.
• 8 x high-resolution colour displays.
• Backlit RGB soft-feel rubber buttons.
• All metal enclosure, finished with a brushed anodised top plate.
• Expandable - Connect up to 4 UF8s to create a 32-channel control surface.
• Works out of the box with the following major DAWs: Pro Tools, Logic, Cubase, Nuendo, Studio One, Ableton Live.
• Up to 3 different DAWs can be connected simultaneously and switched between using the Layer keys.
• DAW communication via HUI for Pro Tools. SSL software provides further workflow enhancements with the addition of features such as Channel and Plug-in Modes.
• DAW communication via MCP/MCU for Logic, Cubase, Nuendo, Studio One and Ableton Live.
• A large multi-purpose notched encoder allows for DAW timeline navigation, track banking and mouse wheel emulation for even more hands-on control.
• Customisable user keys ready to assign your favourite DAW commands or keyboard shortcuts.
• 2 x assignable foot-switch inputs.
• Included stands allow for 6 different elevation angles. Or, use without stands.
• Optional 19” 6U rackmount kit available.
• Connects to your computer via hi-speed USB – no need to deal with computer networks or ethernet cables.
• Powered by the SSL 360° Software application.

100 mm Touch-Sensitive Faders

Quality feel, engineered response and a volume curve that keeps engineers in the sweet spot. Anyone who has driven an SSL console knows not all faders are equal.

Hi-Resolution Colour Displays

Constant, clear visual feedback that only a full colour, high resolution display can provide. Key track information including level, pan, routing and names can be found here, keeping you focused on what matters.

8 Endless Rotary Encoders

V-POT technology and workflow as found in SSL AWS and Duality consoles. Seamlessly jump between parameters whist maintaining absolute control.

Intelligent CHANNEL Encoder

Featuring mouse scroll emulation, control any plug-in parameter you hover the mouse over with precision.

Custom Workflows

Configure essential shortcuts and custom macros for total session control via the 43 assignable, backlit user keys found on UF8.

Human Engineering

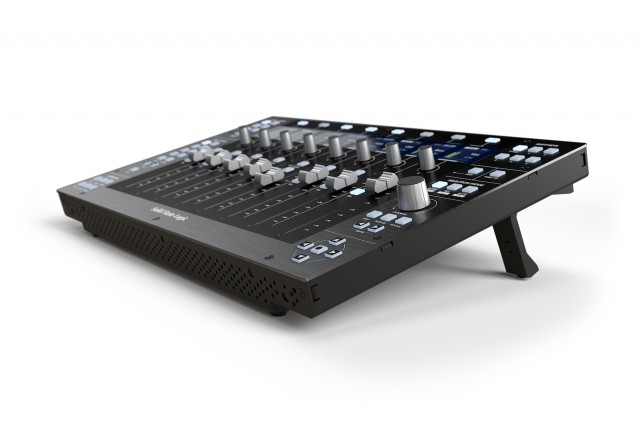

For perfect positioning, each UF8 includes a pair of adjustable stands allowing for six different angles of elevation for user defined placement. 19” rack mount kits are also available.

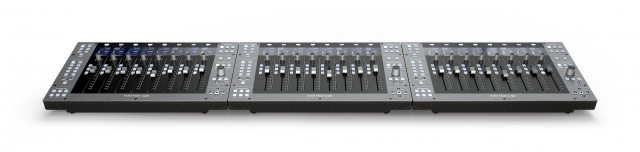

Chain multiple UF8's together to create your unique mixing system; build your perfect 16-24 channel music creation hub, or connect 4 UF8’s within a single system to create a 32-channel controller ideal for large post production or mixing sessions. (Image shows 3 units / 24 channel system)

[HASH_PROD_TABS_3ah2]

• SSL UF8 DAW Controller
• PSU 12V 5A
• IEC Cable
• 1.5m C to C USB Cable
• 1.5m C to A USB Cable
• 2x Stands
• 1x Hex Key
• 4x Screws

[HASH_PROD_TABS_3ah2]

System Requirements

SSL 360° software must be installed on your Mac or Windows computer in order to use SSL UF8. SSL 360° is available for FREE from the downloads page.

SSL 360° software requires the following:

• Mac - 10.13 (High Sierra) and above
• Windows - Windows 8.1 (64-bit) or Windows 10 (64-bit)
• Intel 3rd Gen Core i5 (or comparable AMD processor) CPU running at 2.4GHz or higher
• 8GB RAM or more is recommended
• Internet-connection for software updates from SSL 360° application

Supported DAWs

The following DAWs are officially supported by UF8 and have dedicated profiles in SSL 360°. We only officially test with the most recent versions of each DAW software. In most cases, previous versions will also work fine.

• Pro Tools®
• Logic Pro X®
• Cubase™ / Nuendo™
• Ableton® Live™
• Studio One®

It’s always recommended for you to be working with the latest major version and maintenance release of your DAW supported by your operating system.

Don’t See Your DAW in the list?

Many other DAWs have HUI & MCU controller integration. At the time of writing, we provide dedicated UF8 profiles for the list of DAWs above. For more information on the kind of integration you can expect between UF8 and DAWs not listed above, please see this FAQ page via the button below.

UF8 Physical Specification

Dimensions:

17” x 10.5” x 2.4” / 431 x 266 x 62.7 mm (Width x Depth X Height)

Weight:

Unboxed - 2.9 kg / 6.4 lbs

Boxed - 5.0 kg / 11.02 lbs

UF8 builds on more than 40 years of experience of the company. SSL's 40 years of experience in sound mixing and mastering. The result is a USB control console with excellent ergonomics and a wide range of control options for popular DAW programs incl. Pro Tools and Logic Pro X, which can be easily used in both desktop (adjustable stand offers six positions) and rack-mount (rack-mount sold separately) configurations. UF8 units can be easily daisy-chained (e.g. 16-24 channels for music production or up to 32 channels for large post-production workstations).

Features

• 8x 100mm high quality motorised sliding potentiometers
• 8x rotary encoders
• 8x high-resolution color displays
• Backlit (RGB) buttons
• Rugged metal body
• Chainable and 4x UF8 options for 32 controlled channels
• Direct support for common DAW applications: Pro Tools, Logic, Cubase, Nuendo, Studio One, Ableton Live
• Ability to use up to 3 DAW applications simultaneously (can be switched using Layer buttons)
• Communication with Pro Tools using HUI protocol
• Communication with Logic, Cubase, Nuendo, Studio One and Ableton Live using MCP/MCU protocol
• Universal large rotary encoder for navigation in timeline emulation with mouse, etc.
• Fully configurable buttons
• 2x pedal inputs
• Stand with 6 positions
• Optional 19" rack mount frame (6U height)
• USB interface for connection to computers,
• SSL 360° software
