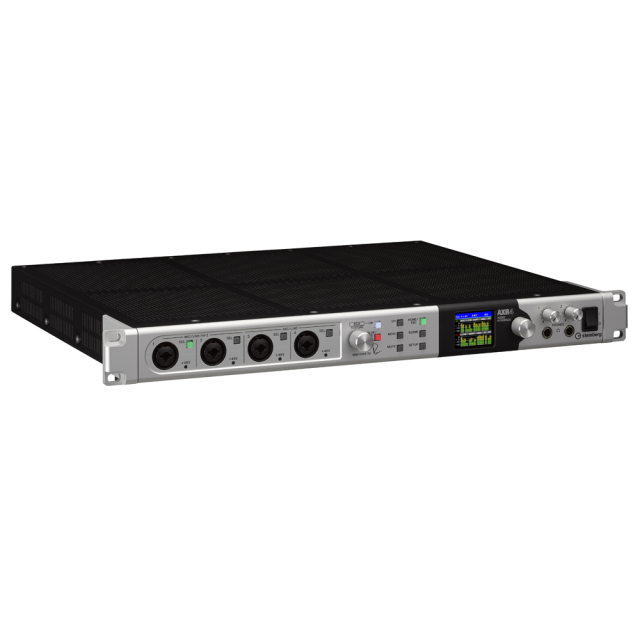

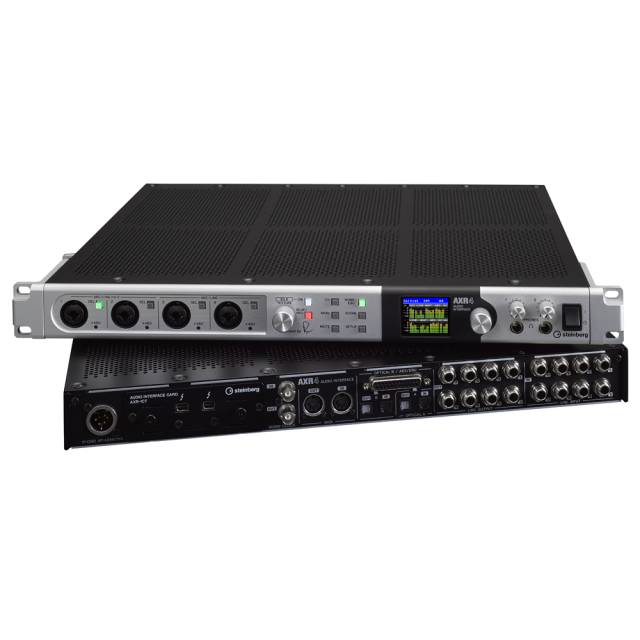

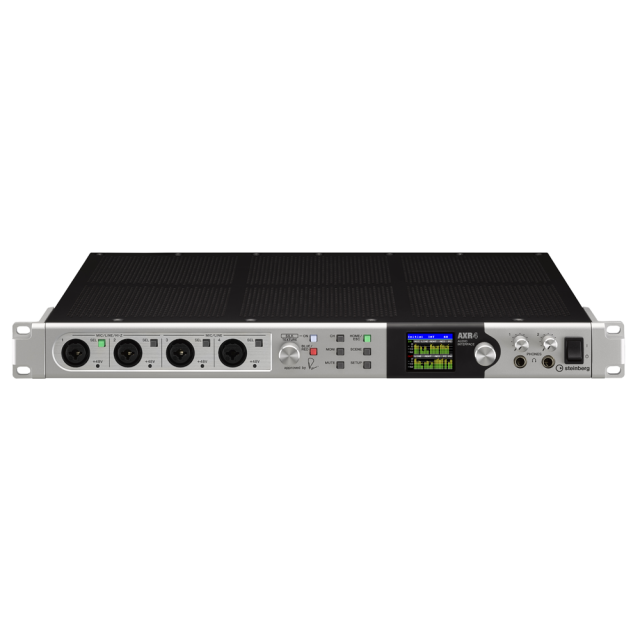

Steinberg AXR4T

Steinberg AXR4T - Thunderbolt2 Audio Interface with 32-bit and hybrid microphone preamps featuring Rupert Neve Designs Silk.

More information

Call us for pricing information
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Steinberg AXR4T - Thunderbolt2 Audio Interface with 32-bit and hybrid microphone preamps featuring Rupert Neve Designs Silk.

With the AXR4T, Steinberg introduces a new high-end professional audio interface, featuring switchable Rupert Neve Designs SILK emulation, 32-bit resolution and a sample rate of up to 384 kHz. Thunderbolt 2 connectivity delivers the 20 Gbps bi-directional throughput necessary for professional level recording, while ultra-low latency drivers ensure that recording and monitoring are optimized for any use case. A comprehensive range of input/output options, robust build quality and the intelligent dspMixFx AXR application make AXR interfaces the logical choice for professionals.

Features:

  • 28x24 Thunderbolt 2 audio interface
  • 32-bit integer / 384 kHz recording and playback
  • AXR hybrid mic preamps with Rupert Neve Designs SILK
  • 28x24 full matrix mixer
  • Latency-free DSP-powered monitoring with REV-X reverb, Channel Strip, VCM compressor 276 and EQ 601, including VST 3 plug-in versions
  • Plenty of I/O ports like 2 ADAT, S/PDIF, AES/EBU, MIDI and Word clock
  • SSPLL ultra-low jitter reduction
  • Stack support for up to 3 units
  • New custom panel for perfect integration into Cubase
  • Bundled Cubase AI fully supports 32-bit integer format



PACKAGE CONTENT

  • AXR4T hardware unit
  • AC adaptor (PA-700 or equivalent)
  • Setup Guide (brochure)
  • Cubase AI download access code paper sheet
  • Essential product license information Advanced FX Suite
  • AXR4T caution paper sheet

SPECIFICATIONS

  • 32-Bit integer / 384 kHz recording and playback

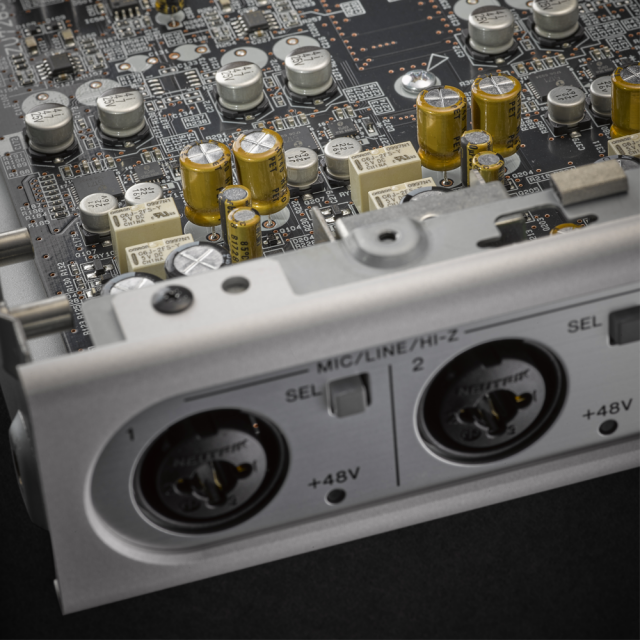

  • 4 AXR Hybrid Microphone Preamplifier with Rupert Neve Designs SILK Circuit Emulation
  • SSPLL technology for extremely low jitter values

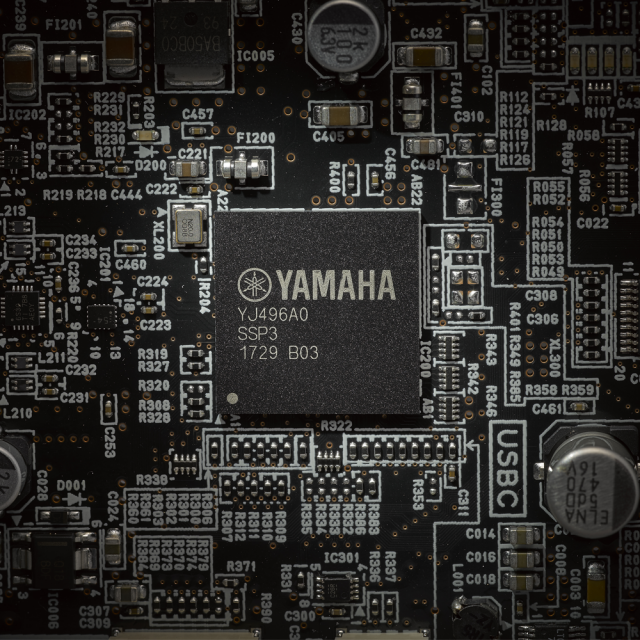

  • DSPX chip and dspMixFX technology for latency-free monitoring with DSP-based effects
  • 28 x 24 Matrix mixer
  • 48V Phantom power

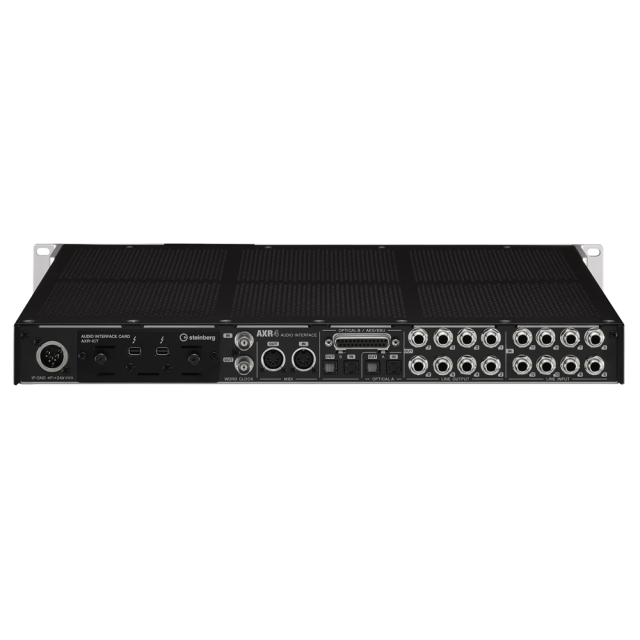

  • 2 Mic / Line / Instrument combo inputs: 6.3 mm XLR / jack
  • 2 Mic / Line combo inputs: 6.3 mm XLR / jack
  • 8 Line inputs: 6.3 mm Jack
  • 8 Line outputs: 6.3 mm Jack
  • 2 ADAT / S/PDIF inputs and outputs
  • AES/EBU Sub-D25
  • 2 Stereo headphone outputs: 6.3 mm Jack
  • MIDI input and output
  • 2 Thunderbolt 2 Connectors
  • BNC word clock input and output
  • LCD
  • Power supply connection
  • Up to three AXR4 cascadable
  • Design: 19"/1 U
  • Dimensions (W x H x D): 480 x 45 x 378 mm
  • Weight: 4.6 kg
  • Includes Cubase AI version with full 32-bit support
Parameters

Parameters

Manufacturer: Steinberg
Category: Audio interface
