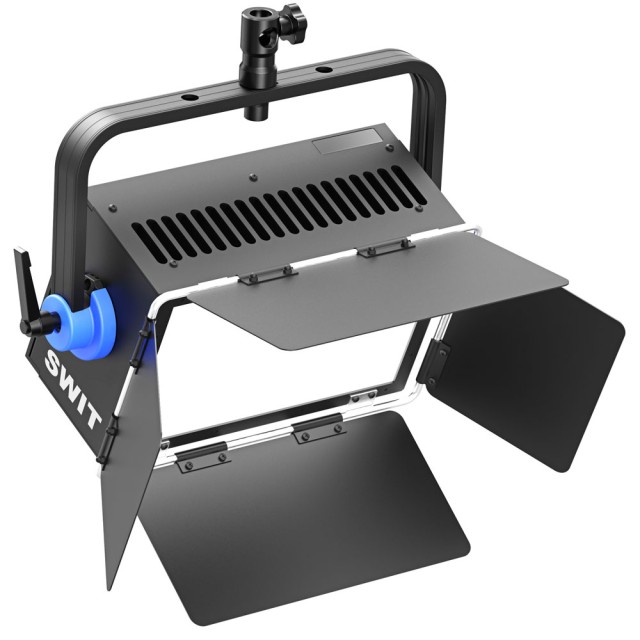

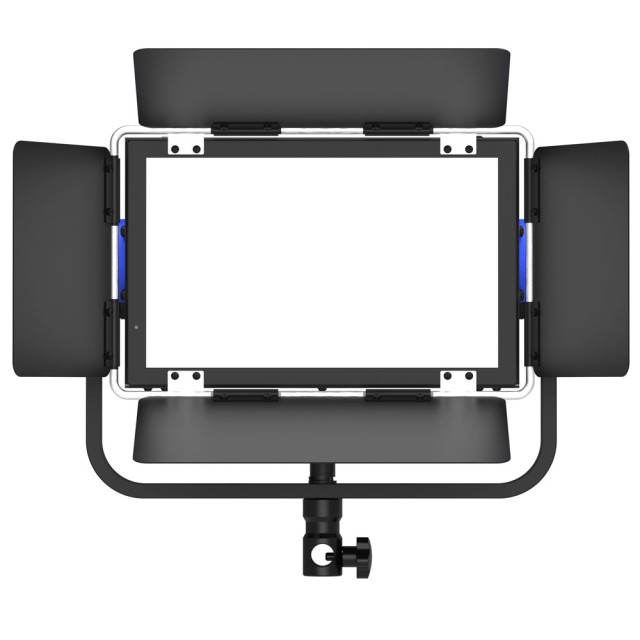

Swit CL-M100C 100W Mini Size Studio RGBW Light

CL-M100C is an 100W RGBW SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low celling space setup.

3000 Lux @ 1 meter
With 170pcs RGB LEDs and 340pcs White LEDs, CL-M100C provides 100W light output, 3000Lux luminance at 1 meter distance, 62° half-peak wide beam angle, 2800K-10000K continuously adjustment and G/M ±1.00 support. 0 to 100% PWM digital dimming, smoothly and non-flickering.

Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W CL-M100C color light intensity equals to a regular 300W RGB color light intensity.

No Fan, No Noise
The large size fin consender inside CL-M100C ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.

Control Panel

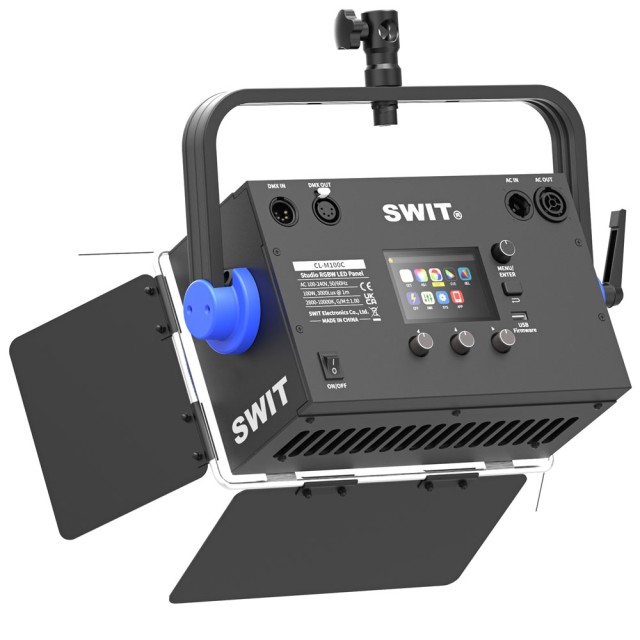

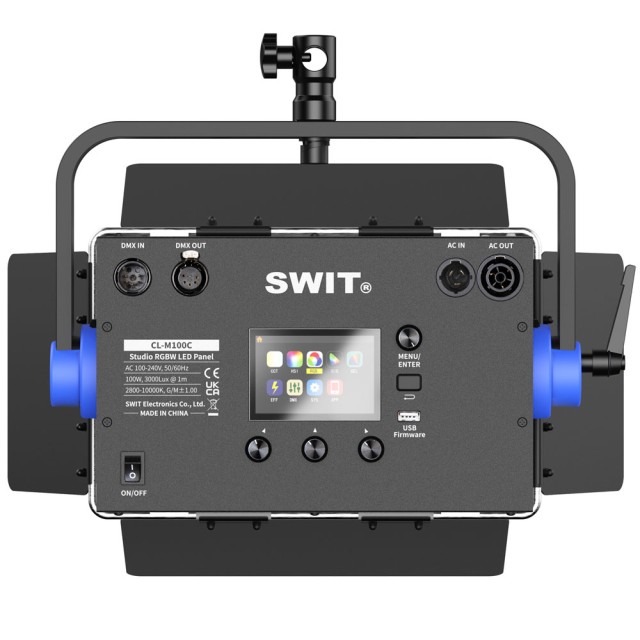

CL-M100C rear control panel supports 5-pin DMX in & out, and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver. On-board 3.5-inch Color LCD with visualized color selection.

Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control CL-M100C lights via Bluetooth.

SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects

PowerCON TRUE1 AC IN & OUT

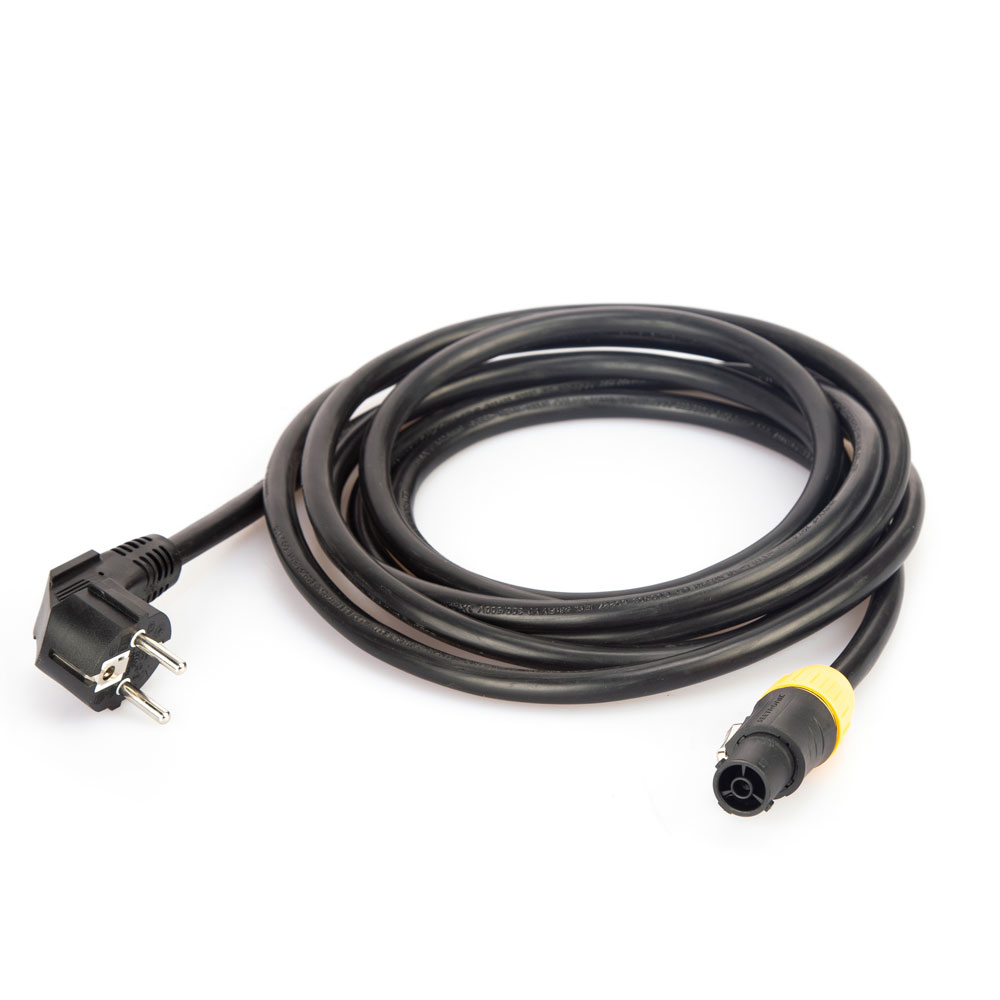

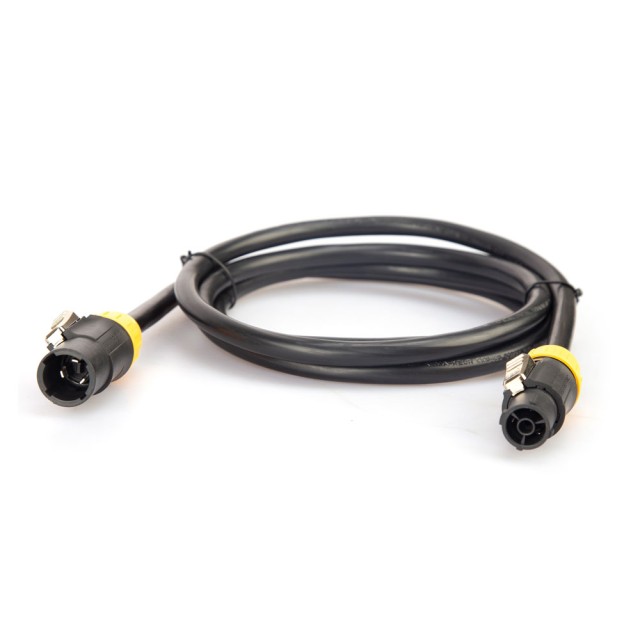

CL-M100C adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100C lights under 220V AC voltage, and 13x CL-M100C lights under 110V voltage.
