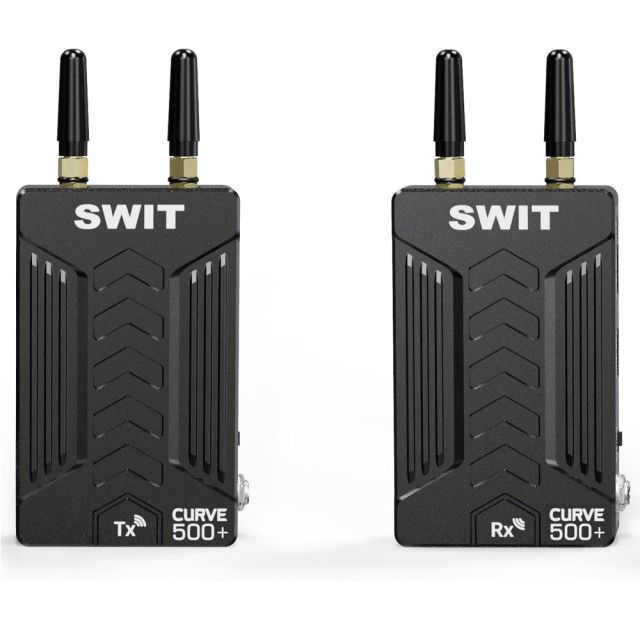

SWIT CURVE500+ HDMI 500ft Wireless System

New Update with USB Video Capture. CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance. As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

• KUWI 5.1-5.9GHz Wireless Technology
• DFS Comply
• HDMI input and loop output
• USB Video Capture output for PC/Mac
• 500ft/150m (Line-of-Sight) distance
• Strong Wall-Cross Performance
• 2-ch HDMI audio transmission
• Auto detecting wireless environment and switching
• Support 7 pairs working in one location
• Wireless protocol & content double encryption

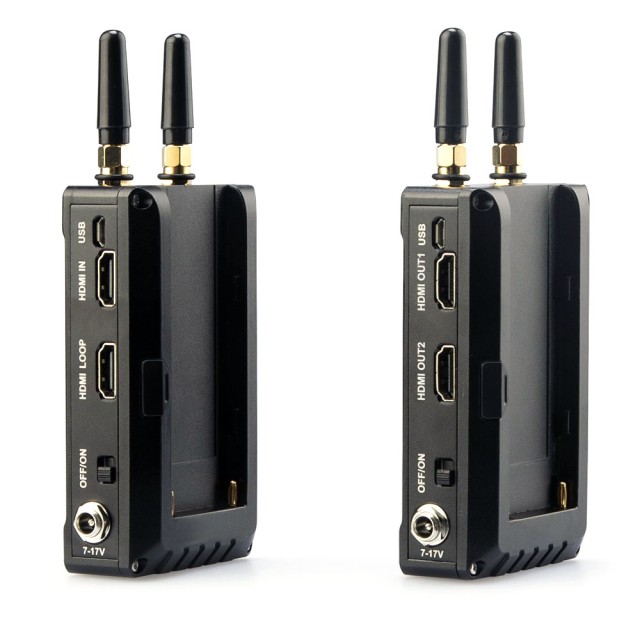

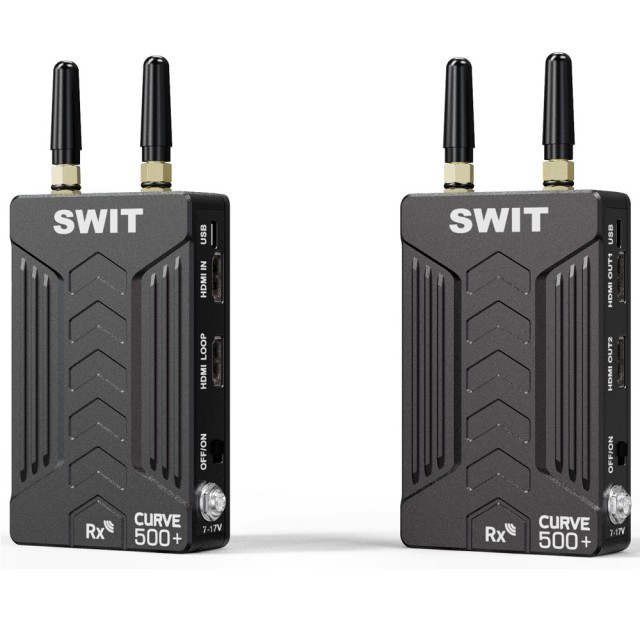

Input & Output
The Transmitter (Tx) supports
1x HDMI input
1x HDMI loop output

The Receiver (Rx) supports
2x HDMI output
1x Micro USB Video Capture output

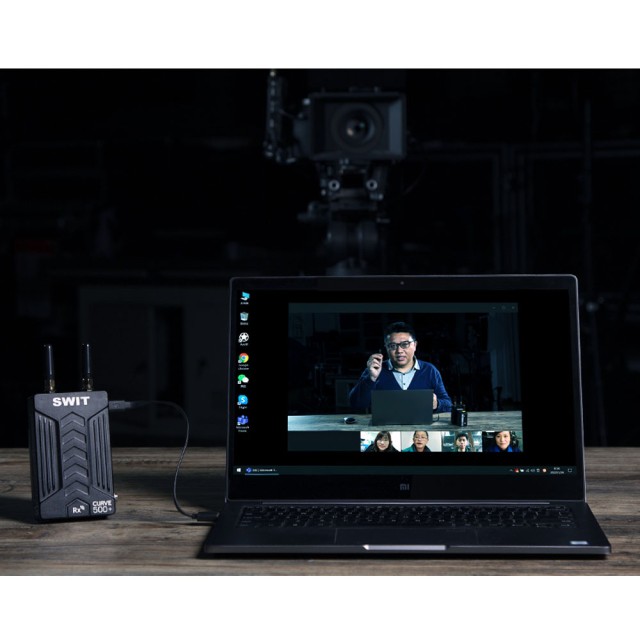

USB Video Capture for PC/Mac
CURVE500+ Receiver provides an USB port for video capture output to computer. You can find CURVE500+ wireless video source from video conference software like MS Team, ZOOM etc, to capture high quality up to 1080p60 video instead of computer webcam.

USB Video Capture for PC/Mac
You can pull CURVE500+ wireless receiving video source to OBS studio, editing, switching and live streaming broadcasting.

500ft/150m Strong Wall-cross
CURVE500+ supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports HDMI embedded audio (CH1&2) transmission.

Backstage Frequency Jumping
CURVE500+ works between 5.1-5.9GHz, DFS comply, and has built-in wireless scanner to detect wireless condition and automatically jump to the best wireless channel to keep reliable connection and transmission.

Up to 7 Pairs Work Together
At one location, you can use up to 7 pairs of CURVE500+ wireless system, without interference to each other.

Specifications:

Input / Output

Transmitter

• HDMI 1.3 input ×1
• HDMI 1.3 loop output x1

Receiver

• HDMI 1.3 Primary output ×1
• HDMI 1.3 Secondary output x1
• Micro USB video capture output x1

Video Formats
HDMI

• 1080p60, 1080p59.94, 1080p50
  1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
  1080psf23.98, 1080psf24
  1080i60, 1080i59.94, 1080i50;
  720p60, 720p59.94, 720p50

USB

• 1080p60, 1080p59.94, 1080p50
  1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
  720p60, 720p59.94, 720p50

Wireless

• Frequency - 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
• RF Modules - OFDM 16QAM, 64QAM, QPSK, BPSK
• RF Power - 50mW
• Transmission Distance - 500 feet / 150 meters (Line of sight)

General
Input voltage

• Transmitter DC 7-17V
• Receiver DC 7-17V

Power Consumption

• Transmitter 7.5W
  Receiver 7W

Dimension(w/o antenna)

• Transmitter 114.18×69.55×28 (mm)
  Receiver 114.18×69.55×28 (mm)

Net weight

• Transmitter 180.8g
  Receiver 181.2g; With package 1.05kg

Working Temperature

• 0°C -+40°C
