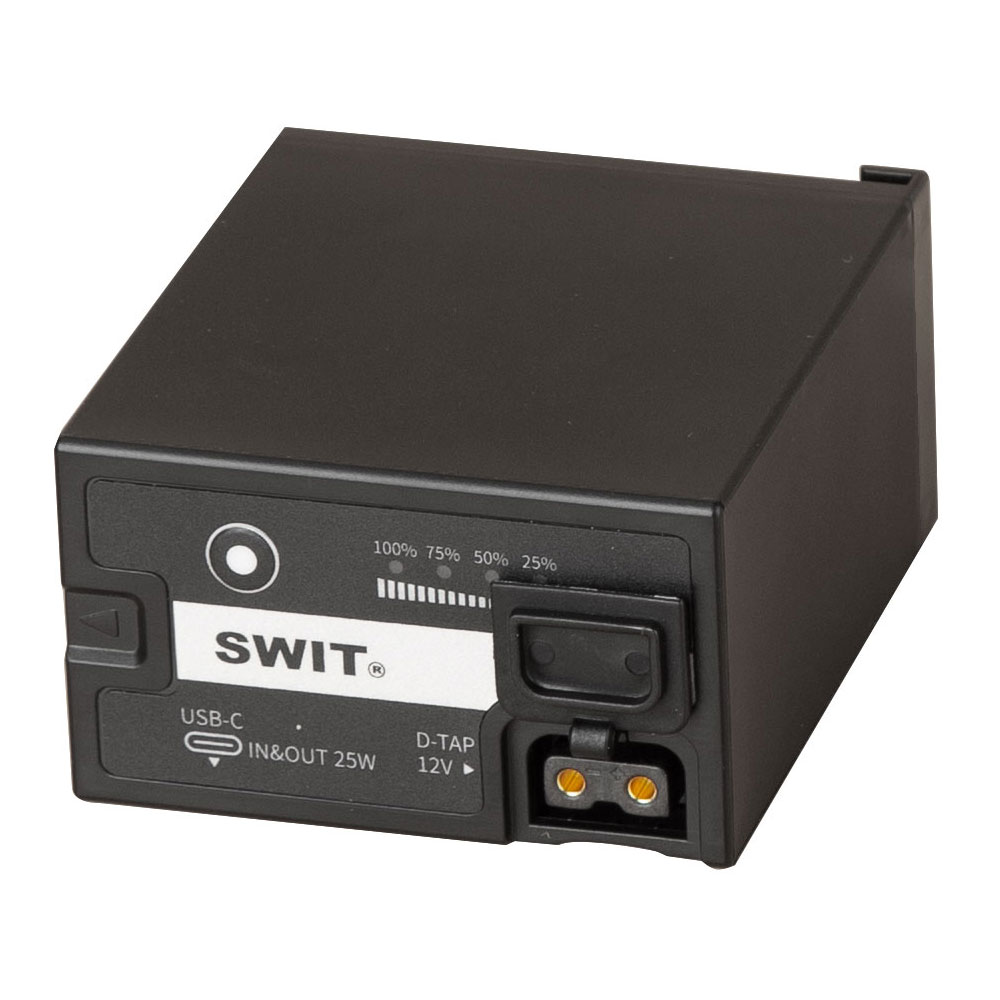

Swit LB-PD65C Panasonic VBR59 Series Battery

65Wh Panasonic VBR59 Battery with D-tap and USB-C, LB-PD65C is a 65Wh large capacity Panasonic AG-VBR59 compatible battery with regulated 12V D-tap output and 25W USB-C in/out, diversity power for camera top devices.

Features:

• Panasonic VBR59/89/118 comparable
• For Panasonic AU-EVA1, AG-DVX200
• For Panasonic AJ-PX230/270, UPX360
• For Panasonic AG-CX350, UX90/180 etc
• 7.2V nominal voltage Li-ion battery
• 65Wh / 9.02Ah capacity
• 30W / 4A constant power load
• Built-in 12V reg. D-tap output
• Built-in 25W USB-C input and output
• 4-level LED power indicator
• Multiple circuit protections

65Wh Large Capacity

LB-PD65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.

Compatible Panasonic cameras: AU-EVA1, AG-DVX200, AJ-PX230/270/UPX360 AG-CX350, AG-UX90/180, AG-AC30, etc.

Reg. 12V D-tap Output
The LB-PD65C battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices.

The D-tap has 7.2V to 12V (Reg.) conversion and it’ s not allowed to charge input via this D-tap socket.,

USB-C 25W Output
Fast Charging iPhone 12/13

LB-PD65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

USB-C 25W Charging Input
You can also charge LB-PD65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.

4-way Charging
LB-PD65C can be charged by Panasonic original charger, and SWIT LC-D421 4-way charger you can charge 4 batteries simultaneously, and fully charging within 5 hours.

Specifications:

• Nominal Voltage -7.2V
• Capacity - 65Wh, 9.02Ah
• Max power load - 30W, 4A
• D-tap - 12V (reg.) 1.7A, 20W
• USB-C - 25W input: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
• 25W output: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
• BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
• Original batteries - Panasonic AG-VBR59/89/118G
• Compatible Cameras - Panasonic AU-EVA1, AV-DVX200, AJ-PX230/270
• Panasonic AJ-UPX360, AG-CX350, AG-UX90/180, AG-AC30
• Dimension - 41×70×83mm
• Charging Temperature - 0-40°C
• Discharging Temperature - -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
• Net weight - Approx 356g
