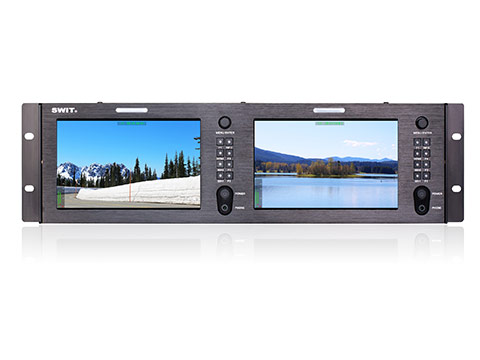

SWIT M-1073H 2x7" LCD 19" rack 3U monitor

  • Free transport
SKU: M-1073H

SWIT M-1073H 2x7" LCD 19" rack mount 3U monitor with 1920×1200 resolution and 2K/3G/HD/SD-SDI input (+loop output) and 4Kp60 HDMI input (+loop output).

More information

1 659 € with VAT 1 371.07 € without VAT
Add to Compare Price history
Availability
on request
SKU:
M-1073H
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SWIT M-1073H 2x7" LCD 19" rack mount 3U monitor with 1920×1200 resolution and 2K/3G/HD/SD-SDI input (+loop output) and 4Kp60 HDMI input (+loop output).

M-1073H

Dual 7-inch FHD Rack LCD Monitor

  • Dual 7" non-glaring LCD, 1920×1200
  • 19-inch 3U rack mount, ±30° rotatable
  • 2K/3G/HD/SD-SDI input & loop output
  • HDMI 2.0 (4K60p) input & loop output
  • 16-ch embedded audio meters with alert
  • Select any 2 audio channels to output
  • 9 steps quick zoom-in and mapping
  • Focus assist with precision adjustment
  • Build-in multi-camera logs to Rec.709
  • User 3DLUT cube file import by USB
  • On-screen TALLY display and GPI
  • Zebra stripes, False color, R/G/B/Mono
  • H/V delay, AFD, Timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • USB firmware upgrade

3DLUT Log to Rec709

User LUT cube import

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable

On-screen Tally


M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.

Power Supply

M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

M-1073H is standard 19" rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks

PACKAGE CONTENT


.

SPECIFICATIONS

Input Video Formats

M-1073H supports the following input video formats:

HDMI 4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i/ 576i / 480p / 576p
SDI SMPTE 2048-2 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
SMPTE-425M 1080P (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)










Parameters

Parameters

Manufacturer: Swit
Category: Studio Monitors
