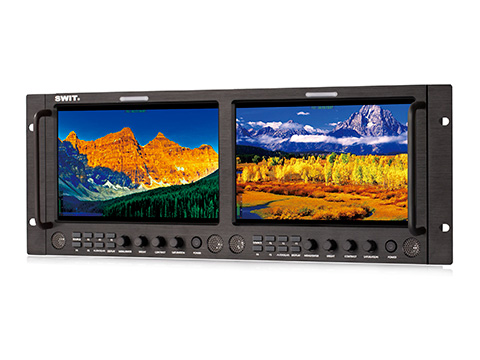

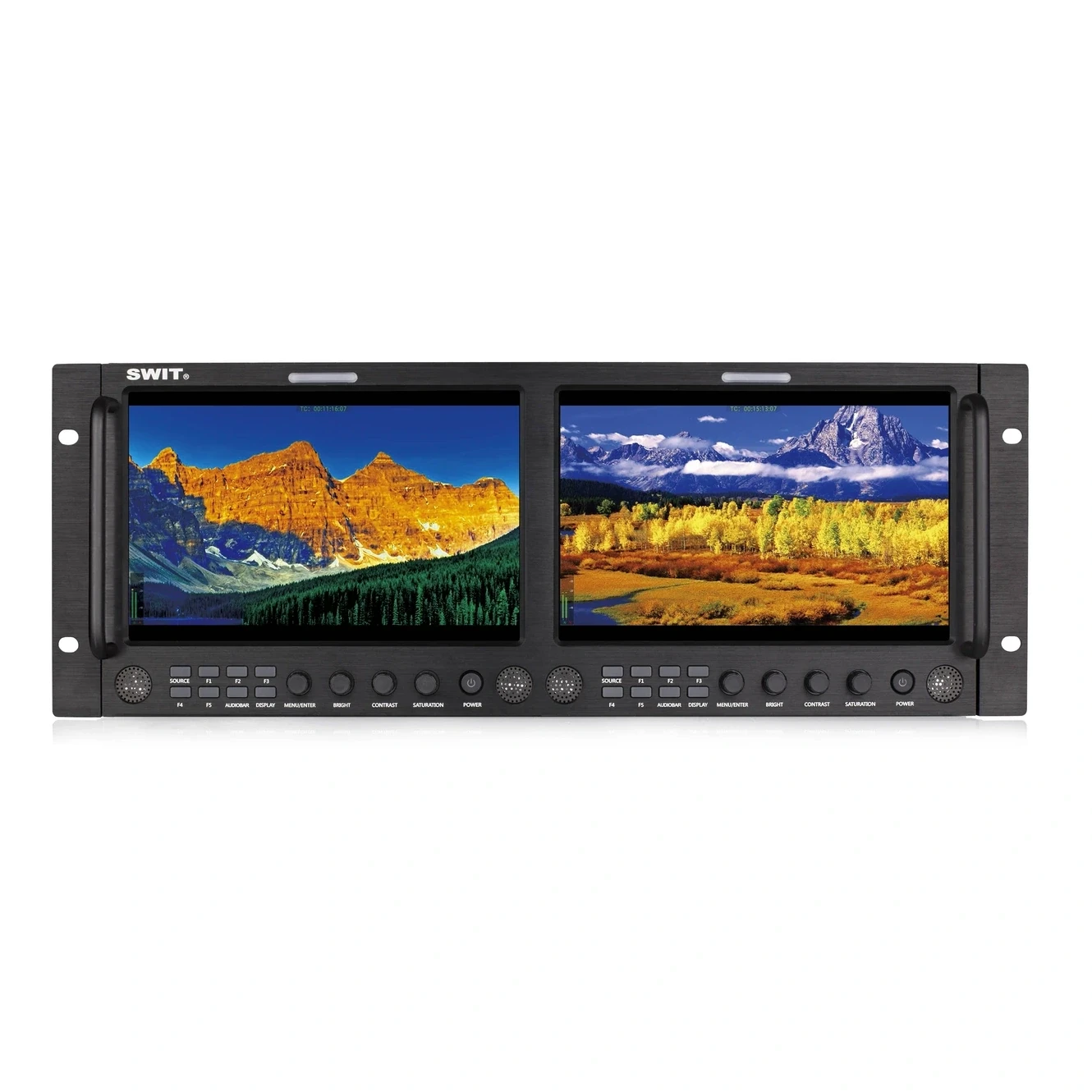

SWIT M-1093H 2x9" IPS LCD 19" rack 4U monitor

SWIT M-1093H 2x9" IPS LCD 19" rack 4U monitor with 1920×1200 resolution, 800:1 contrast ratio and 2x 2K/3G/HD/SD-SDI, HDMI and composite input (+loop output).

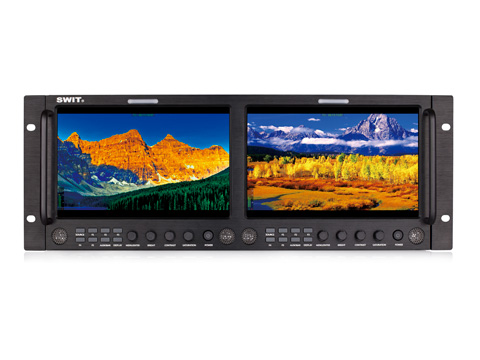

M-1093H

Dual 9-inch FHD Rack LCD Monitor

• 9-inch IPS LCD Panel ×2
• 1920×1200 resolution, 800:1 contrast
• 19-inch 4U rack mounting, ±30° rotatable
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 2-ch Embedded audio meters with alert
• AFD, H/V delay, R/G/B/Mono, False color
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• TALLY light and GPI control
• USB firmware upgrade

9-inch IPS LCD

IPS panel with LED backlight

The M-1093H adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

Input/Output Interfaces

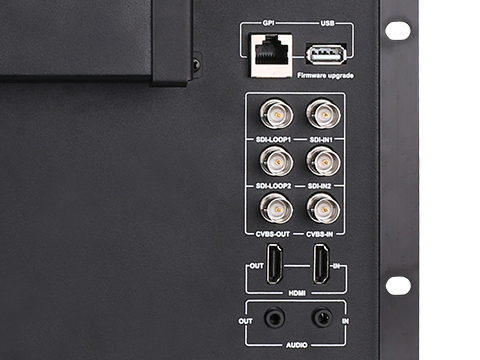

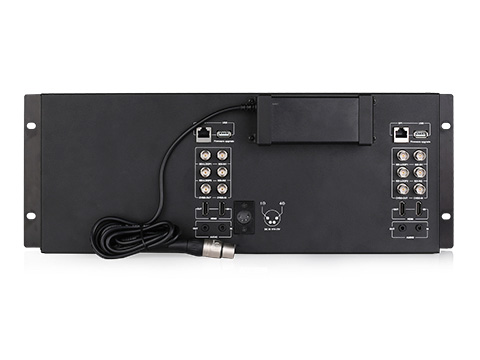

SDI / HDMI / CVBS / Analog Audio

Each LCD of M-1093H supports
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI 1.3 input × 1
HDMI 1.3 loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

Embedded Audio Monitoring

2-ch meters with alert

M-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

M-1093H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

Power Supply

M-1093H provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

M-1093H is standard 19" rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks
