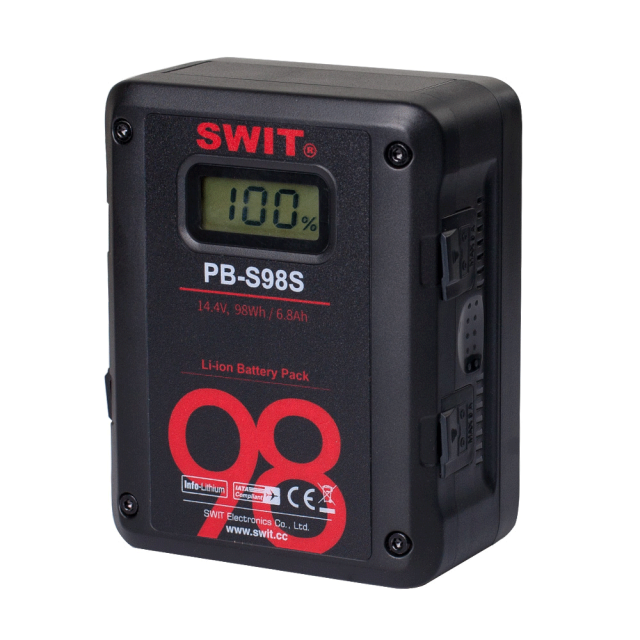

Swit PB-S98S 98Wh Mini V-Mount Battery

PB-S98S 98Wh Multi-sockets Square Digital Battery

PB-S98S98Wh Multi-sockets Square Digital Battery Pack
Square shape design for Cine-cameras
Max 100W, 8A load

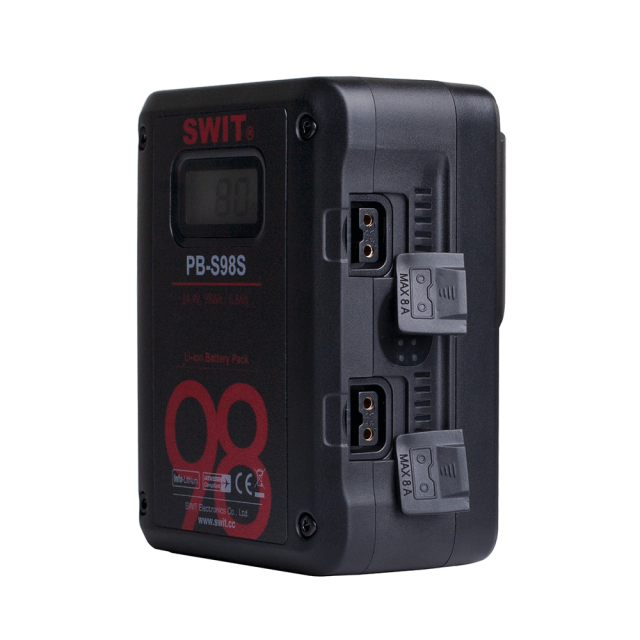

2× D-tap output sockets (Max 100W/8A in total)
1× USB 5V/2A power output sockets
LCD display accurate remaining run time
Display power info in both SONY & RED
Multiple circuit protections

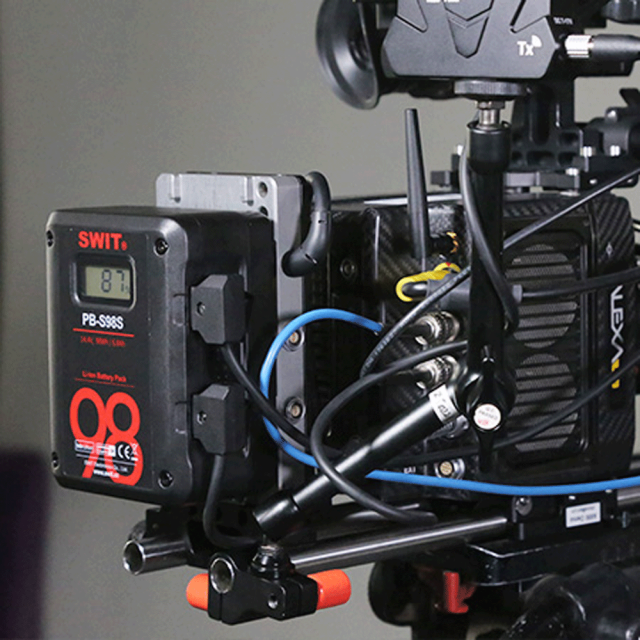

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

98Wh / 6.8Ah Capacity

Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity
Can run approx 3 hours for normal ENG cameras.

Multiple output sockets design

2× D-tap output sockets, 1× USB 5V/2A power output socket
PB-S98S is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W

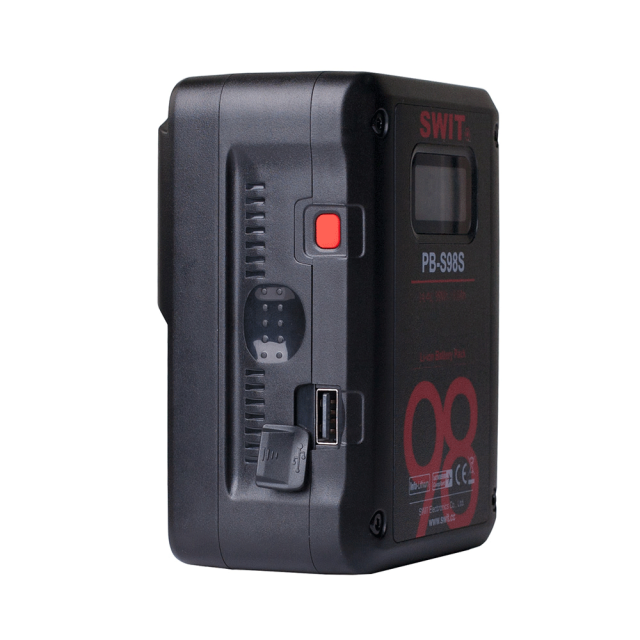

PB-S98S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

Digital Power Info

LCD display accurate remaining run time
The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

LCD alarm code description
(1)P01~P13: The battery trigger protection function and it can be recovered
(2) When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display
(3) E01~E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery.
