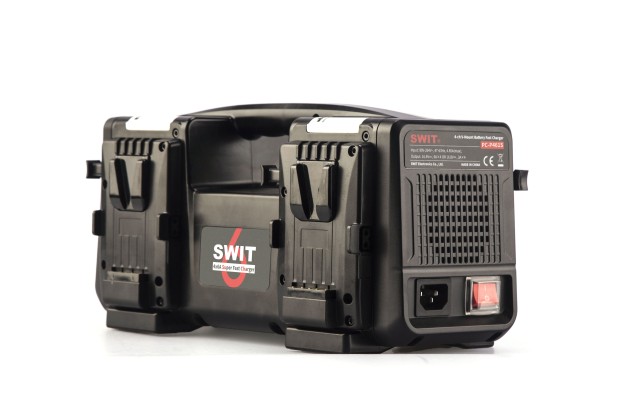

SWIT PC-P461S simultaneous 4-channel V-mount battery charger

The SWIT PC-P461S is a fully simultaneous 4-channel 4x100W Super Fast V-mount Charger with LCD info display for individual battery charging status.

The SWIT PC-P461S is a fully simultaneous 4-channel 4x100W Super Fast V-mount Charger with LCD info display for individual battery charging status.

Basic specifications of the SWIT PC-P461S 4x100W Super Fast V-mount Charger:

• 4-ch simultaneous fast charging
• Charge both 14.4V and 28.8V V-mount batteries
• 100W/6A for SWIT 14.4V & ≥160Wh batteies
• 100W/3A for SWIT 28.8V & ≥160Wh batteies
• 50W/3A for other batteies
• 3.5-inch color LCD info display
• Battery cycle times display
• Top large charging indicators

4x100W Fast Charger for both 14.4V and 28.8V batteries

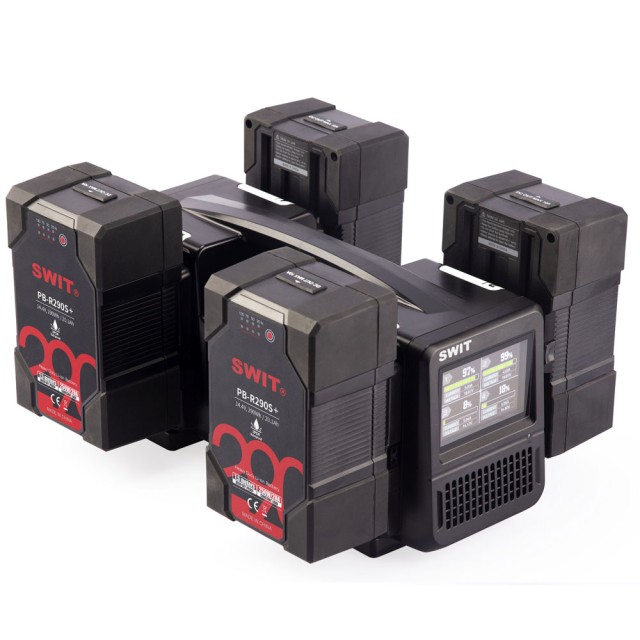

PC-P461S can charge 4 V-mount batteries simultaneously, support both 14.4V and 28.8V nominal voltage batteries. Super fast charging 100W/6A for 14.4V batteries, and 100W/3A for 28.8V batteries, save up to 60% charging time comparing to normal chargers.SWIT ≥160Wh batteries support 100W fast charging, for less capacity or other brand batteries, the charging current will limit to 50W/3A.

3.5-inch Color LCD Display

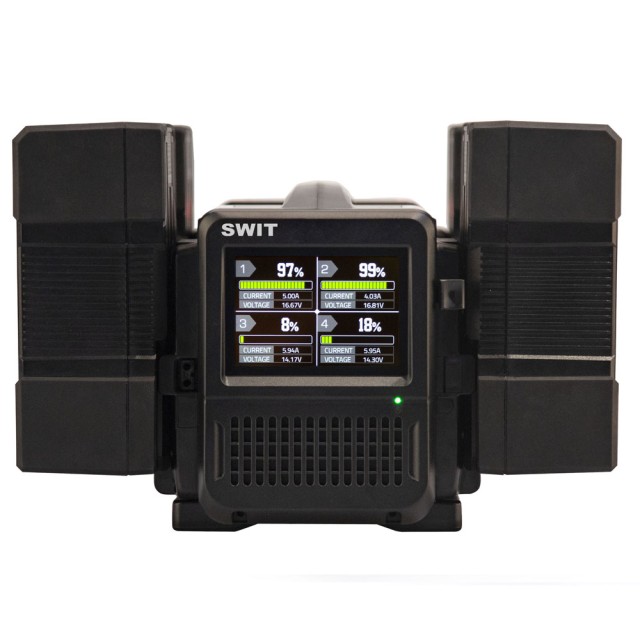

PC-P461S provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage. For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.

Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.

Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

Light Weight and Portable

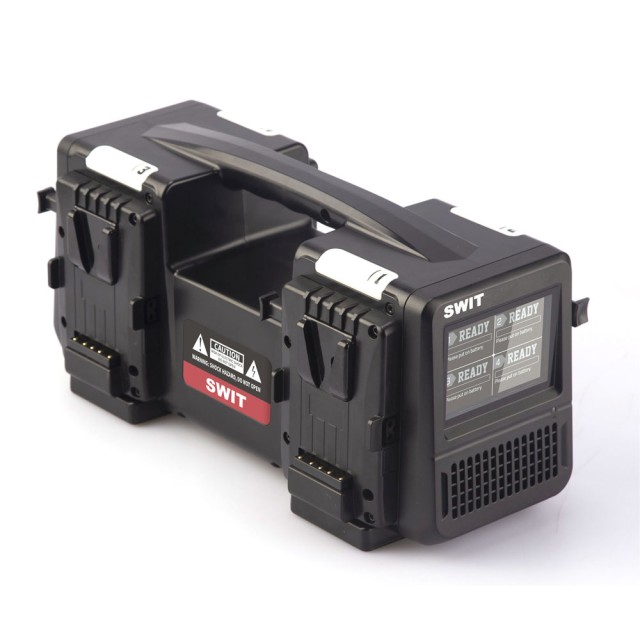

The 4 channel fast charger PC-P461S has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.

Specifications

• Power - Max 450W
• Input - AC100V-240V 50/60Hz
• Output

• DC 16.8V, 6Ax4 (SWIT 14.4V & ≥160Wh batteries)
• DC 33.6V, 3A×4 (SWIT 28.8V & ≥160Wh batteries)
• DC 16.8V, 3A×4 (Other batteries)

• Applicable battery - V-mount battery
• Dimensions - 330×153×162mm
• Net weight - Net 2.43kg; With package 3.3kg
