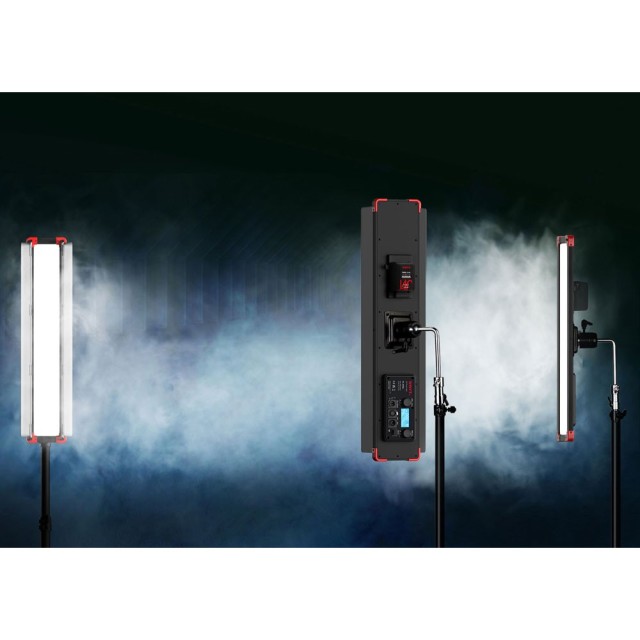

SWIT PL-E90L Soft 90W Bi-color LED Panel Light, ultra slim

PL-E90L has SMD-LEDs side mounted on the inner edge of the frame, and with SWIT innovative laser dots 90° reflection board, the light outputs high efficiant bright, soft and even beam to wrap around objects. The side mounted LEDs greatly reduce the light thickness. It’ s only 21mm, slim and portable for field application.

90W, 2000 Lux @ 1 meter
2700K-6500K Continuously Adjust

PL-E90L mixed with 90W 2700K LEDs and 90W 6500K LEDs, outputs 90W 2200Lux at 1 meter high intensity and any color temperature between 2700K to 6500K, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

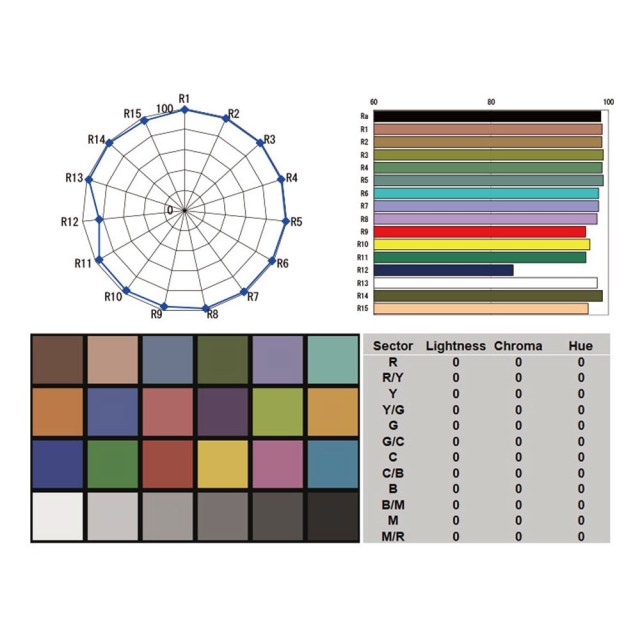

CRI 99, TLCI 99
PL-E90L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 99, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

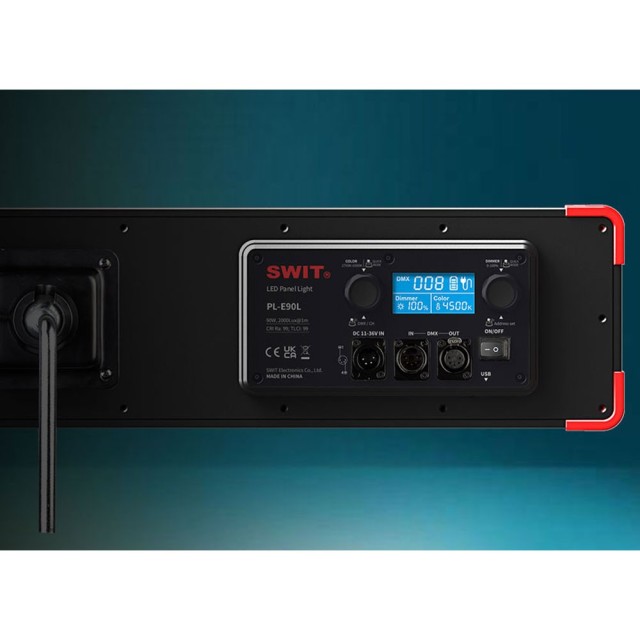

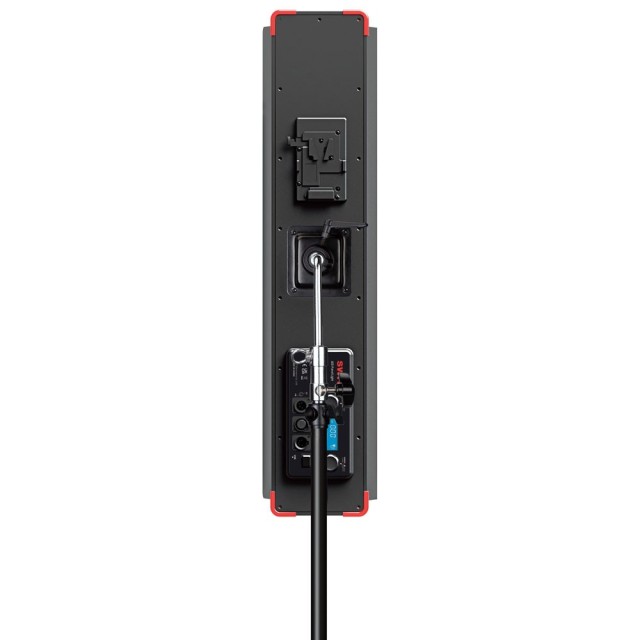

Control Panel
The rear control panel supports DMX512 in and out, USB power out for wireless DMX adaptor, DC 11-36V wide input. The LCD screen displays dimmer, color temperature, DMX address and power status.

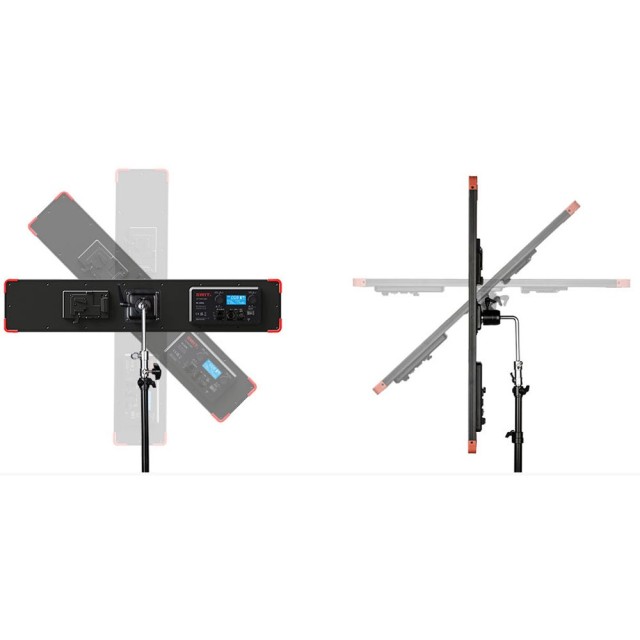

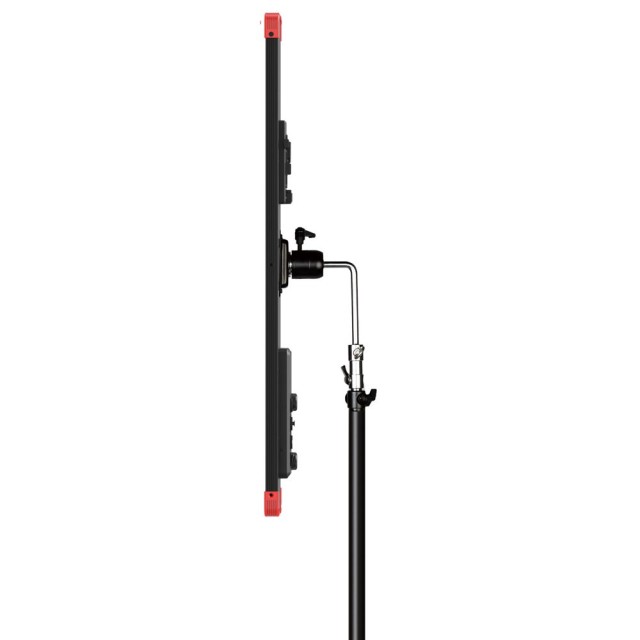

Rotatable Lighting Angle
PL-E90L provides a light stand connector with 360° rotatable and 180° tiltable.

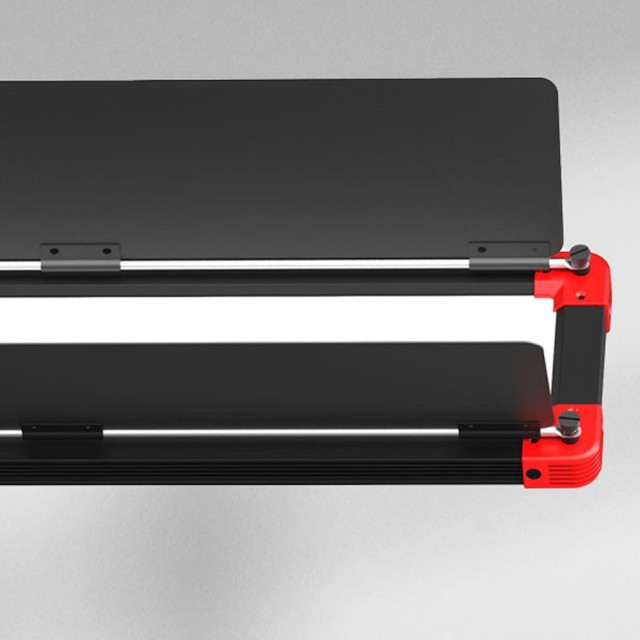

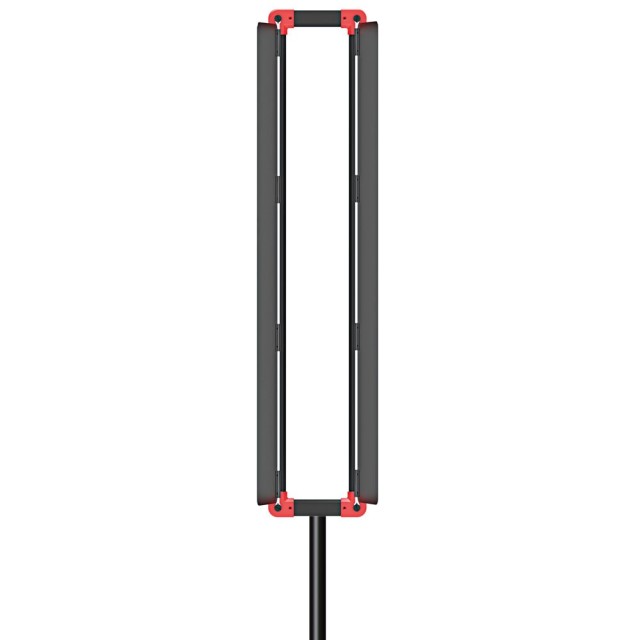

2-leaf Barn Doors
PL-E90L installed with 2-leaf metal barn doors and also could be removed easily by 4 screws.

Single Light Package
The single light package includes:
1x PL-E90L light with barndoor
1x Light stand connector
1x AC-DC adaptor

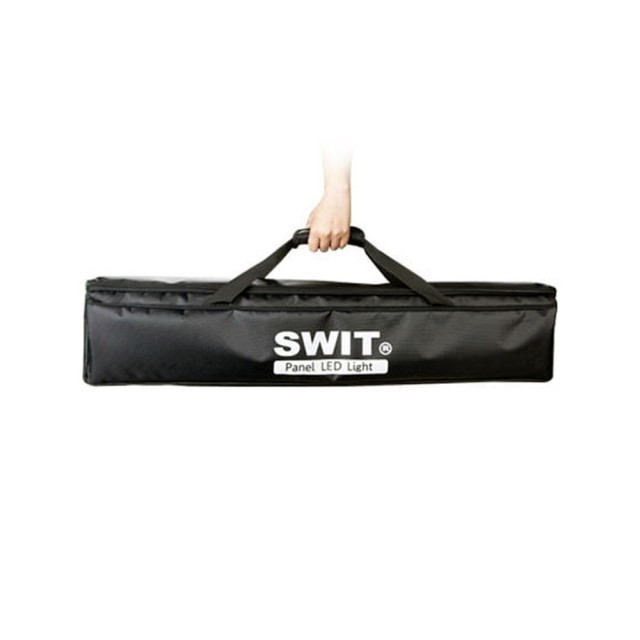

1x Carrying bag

Specifications

• LED - 480pcs SMD LEDs
• illuminance - 2000Lux @ 1m
• Beam angle - 70°
• Color Temperature - 2700K～6500K
• CRI - 99
• TLCI - 99
• Power - 90W
• Working voltage - DC11V～36V
• Dimension - 839×163×21mm
• Lighting area - 781×104mm
• Weight - Net 4.9kg; Single light package 8.4kg
