Dual-channel Fast Charger S-3812S

• 2-ch V-mount Fast Charger
• 2-ch simultaneous charging
• Identify battery type and adjust charging method
• 6A fast charging for SWIT particular batteries
• 3A charging for normal batteries
• Support AC to 4-pin XLR output
• Support battery to 4-pin XLR output
• LCD display charging/adapting info

Max charging current: 6A

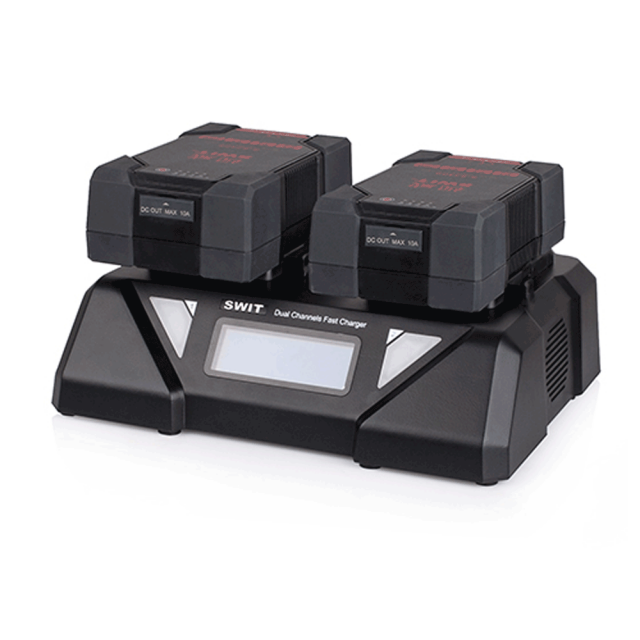

S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers
The following battery models support 6A fast charging
PB-H290S, PB-S220S, PB-R160S, PB-R290S, S-8340S, S-8360S, D-8161S, S-8180S, S-8113S, S-8183S
And for other batteries, the charging current is 3A

Charging time comparation

charging time

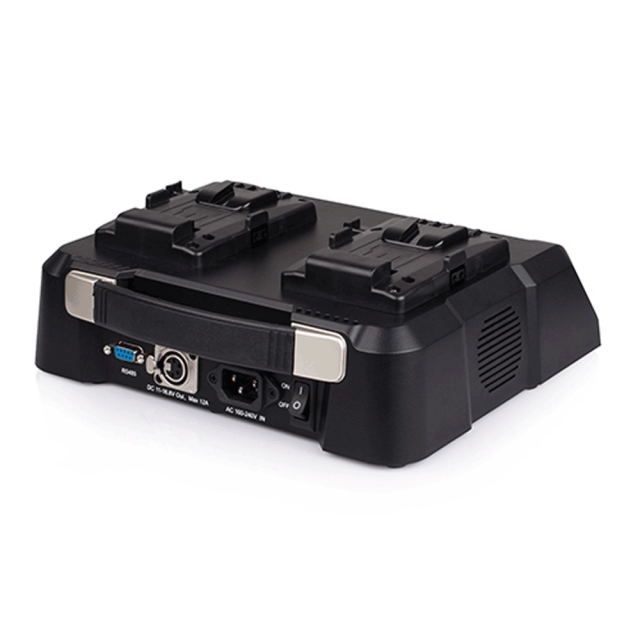

AC-DC Adapting Output

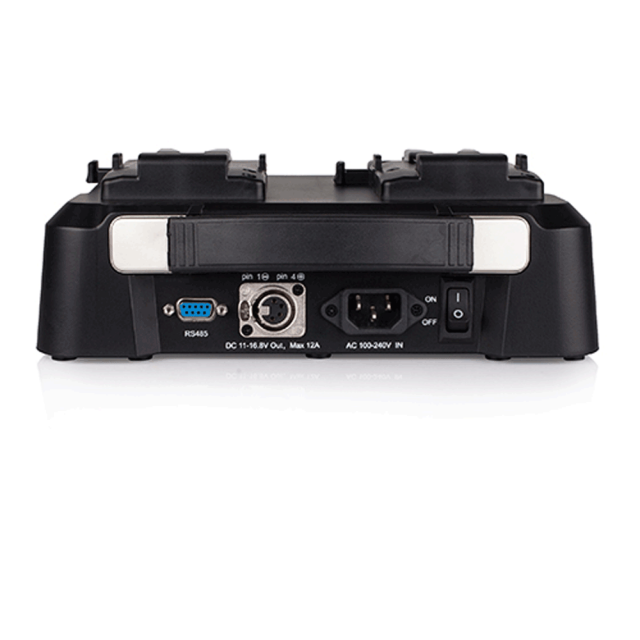

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A
When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential)
Remark: S-7102 cable is optional purchased

Battery-DC Adapting Output
You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A
Remark: S-7102 cable is optional purchased

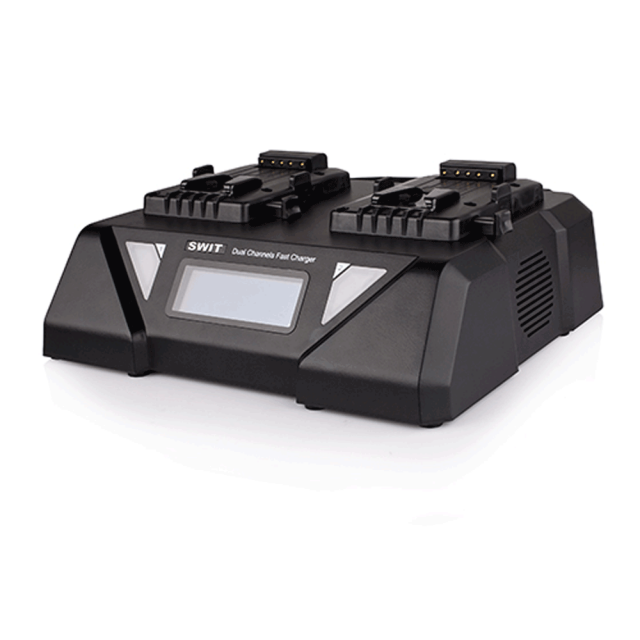

LCD Charging Info Display
S-3812S has an LCD screen to display the real time charging/adapting information, includes
Battery Charging/Discharging status
Real time capacity and percentage
Real time Voltage/Current
Remaining time to fully charged
Remaining time to fully discharged
Battery cycle times
Adapting output current and power

Remark: The battery info display only available with SWIT digital Li-ion batteries: S-8320S; S-8340S; S-8360S; D-8161S/R. For other non-digital batteries, the charger will only display real time voltage and current

3-color LED Indicators
S-3812S has the 3-color LED indicators for both 2 channels
Red light slowly flashes: The battery is charging
Red light fast flashes: The battery is about to fully charged
Green light constant: The battery is fully charged
Green light flashes: The battery is adapting output
Orange light flashes: Battery or Charger abnormal alert
