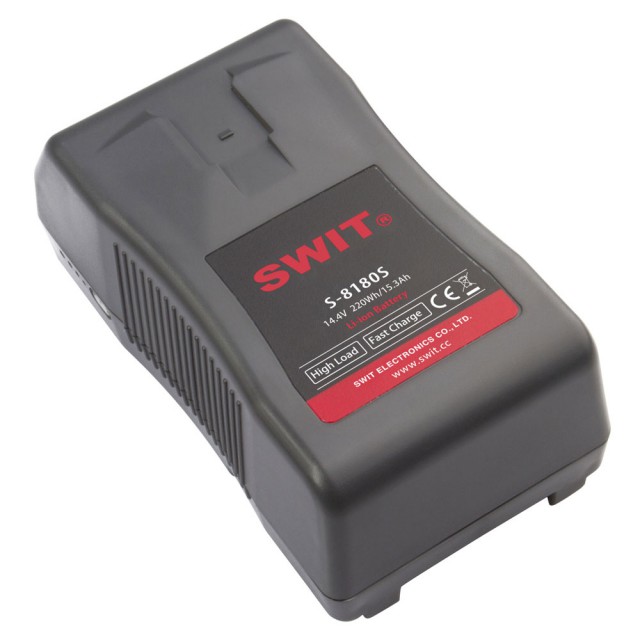

SWIT S-8180S 220Wh High Load V-mount Battery

The S-8180S is a 220Wh V-mount Li-ion battery for professional video cameras.

220Wh / 15.3Ah High Capacity
Consists of 24pcs 18650 battery cells, and reaches 220Wh/15.3Ah high capacity. run approx 7 hours for normal 30W ENG cameras

Reliable V-mount Connection

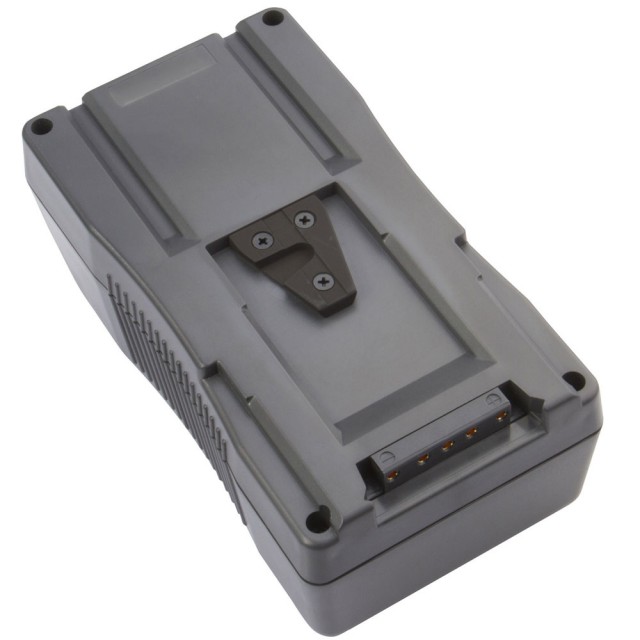

S-8180S is the standard SONY V-mount connection and we adopt the high quality metal V-wedge that ensures the reliable mounting

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8180S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

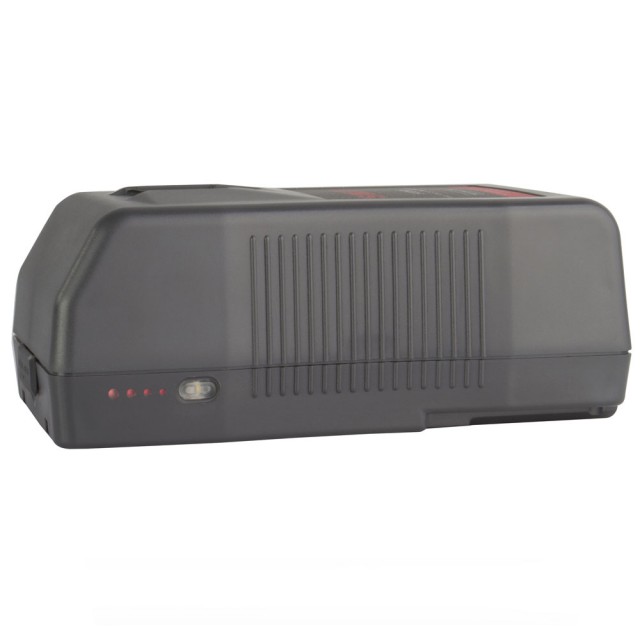

On the side of the battery, there're 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using

Adopted high quality Lithium cells
Over more than 15 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted
The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack
Moreover, the cells we're using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively

Strong and Durable Housing
Adopt the thicker and wider nickel slice to solder the cells, minimize the voltage drop, dissipate heating, and enhance the assembly intensity. The cells are arranged as triangular structure in the battery pack, stable and anti-shock. The cell holder inside can protect the cells pack, and separate the circuit board from the cells, to keep the boards away from internal pressure and ensure a stable working

Multiple Safety Protection Design
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected
Meanwhile, the battery housing adopts high-impact ABS material, with waist design and non-slip tread for secure handling

Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
