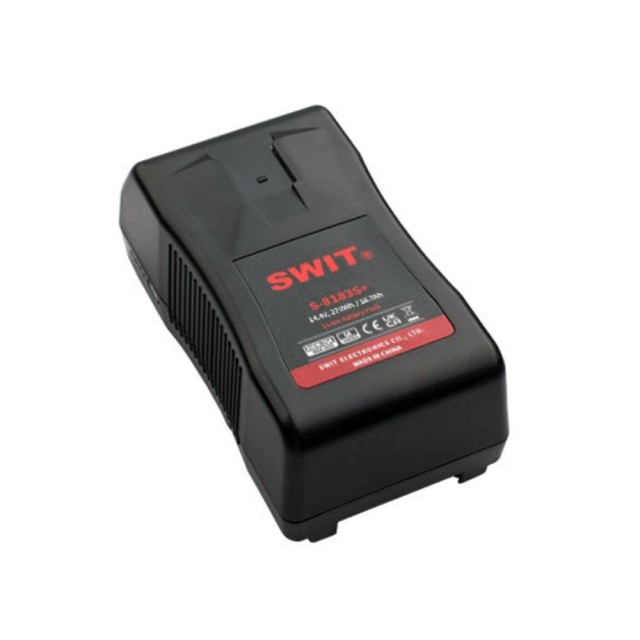

SWIT S-8183S+ 270Wh V-Mount battery

The S-8183S+ is a 270Wh V-mount Li-ion battery for professional video cameras.

250W/20A High-Load
Even only 1% capacity remains, S-8183S+ still can output at least 250W/20A high load, for high power equipment like cine cameras and cine lights, and will not reduce battery life during long time high power output.

270Wh High Capacity
Updated from S-8183S, the S-8183S+ provides 270Wh/18.75Ah higher capacity, to prolong the running time on equipments.

6A Fast Charging
S-8183S+ supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

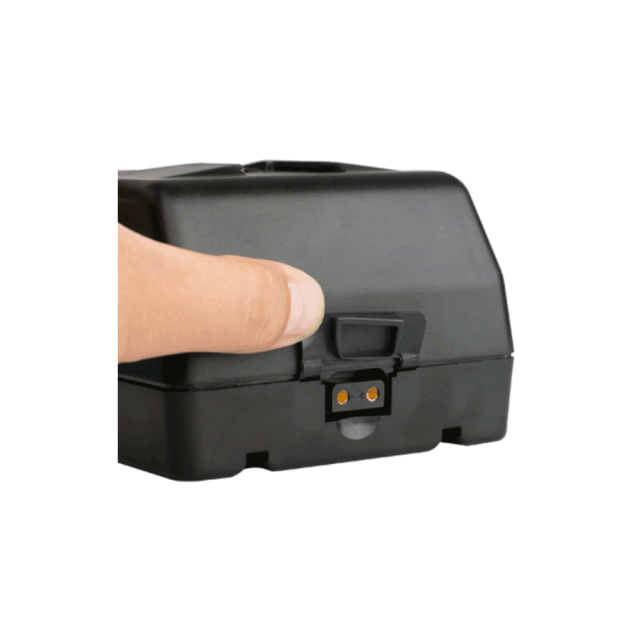

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8183S+ battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

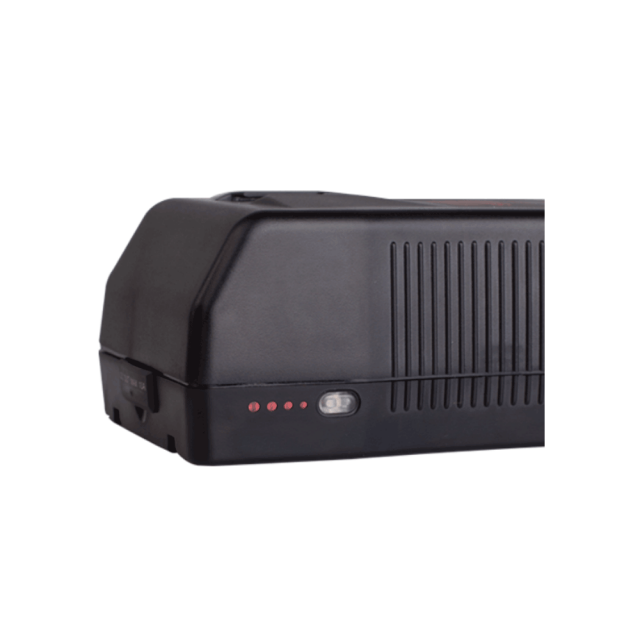

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

• Nominal Voltage: 14.4V
• Capacity: 270Wh/18.75Ah
• Max output power: In total:250W / Electrodes:250W,20A / D-tap:120W,10A
• Mount Type: V-mount
• Charging Temperature: 0-40°C
• Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
• Net weight: Approx 1.3kg
• Dimensions: 165×90×66mm
