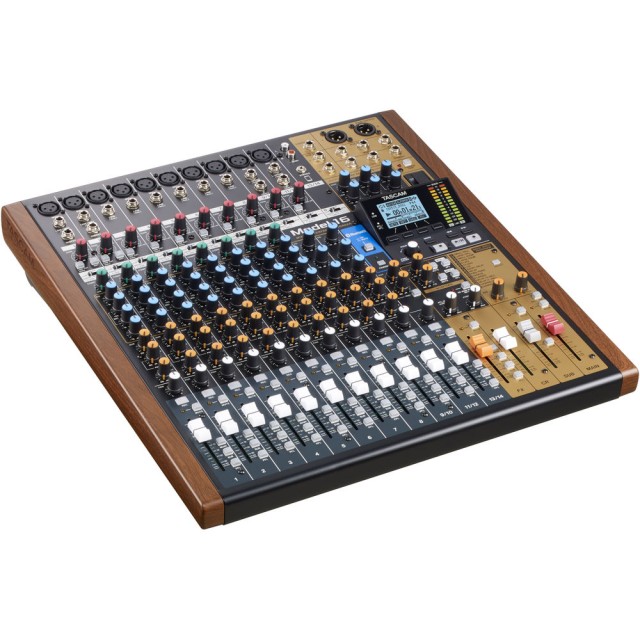

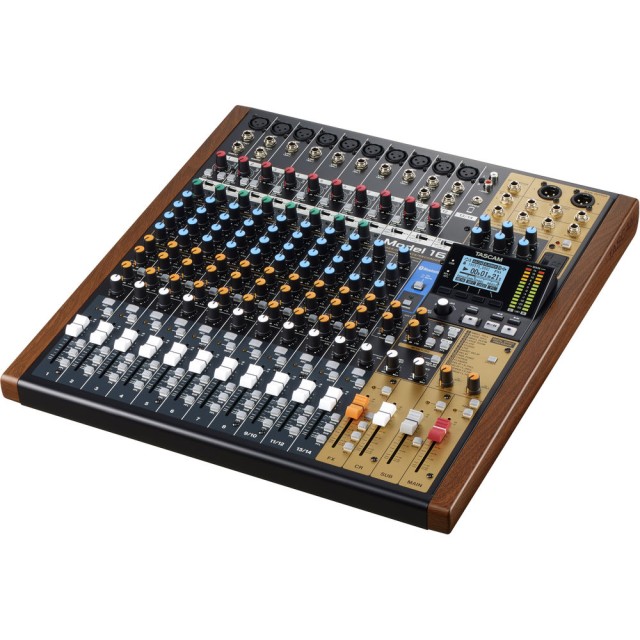

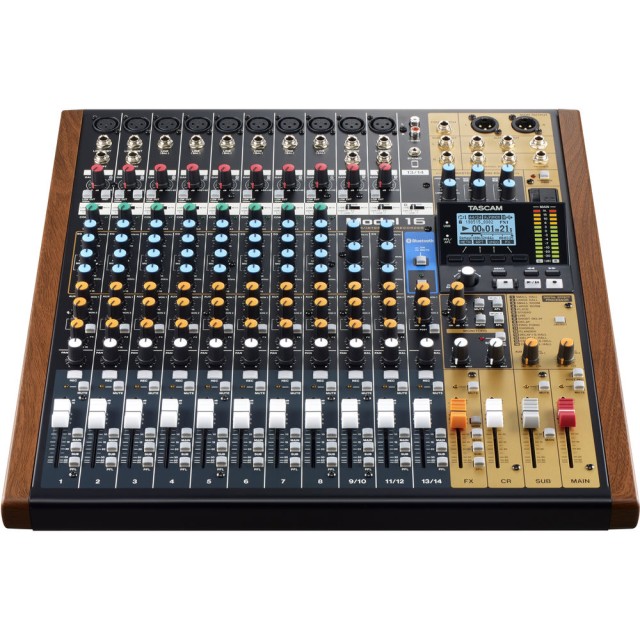

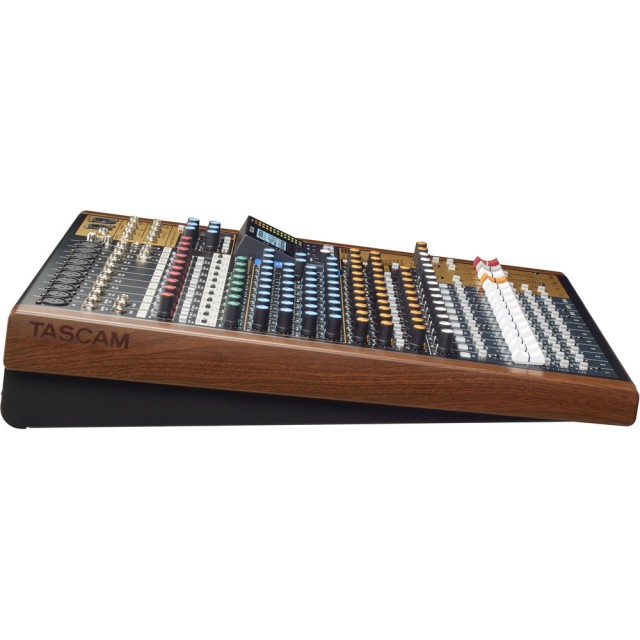

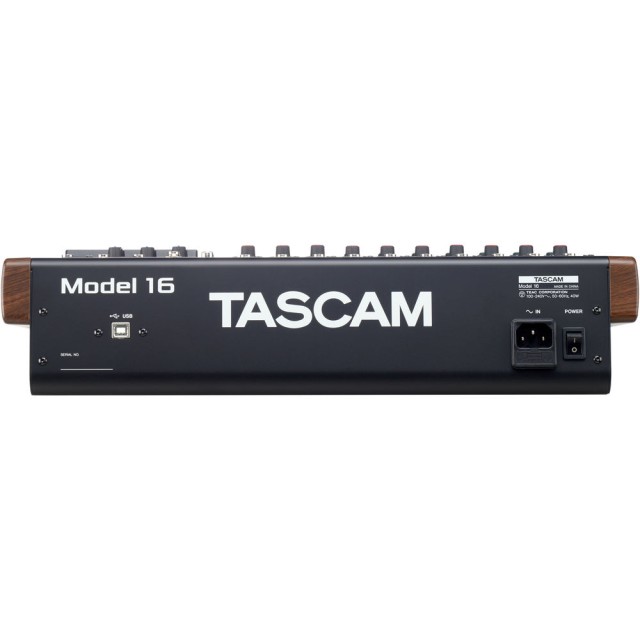

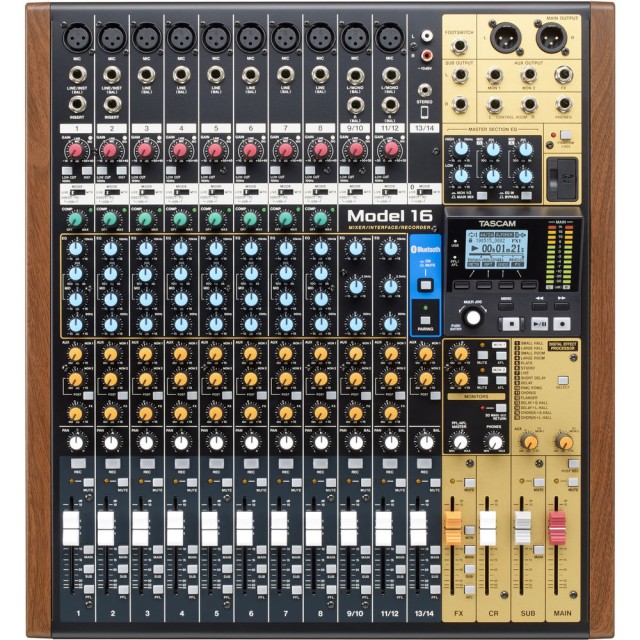

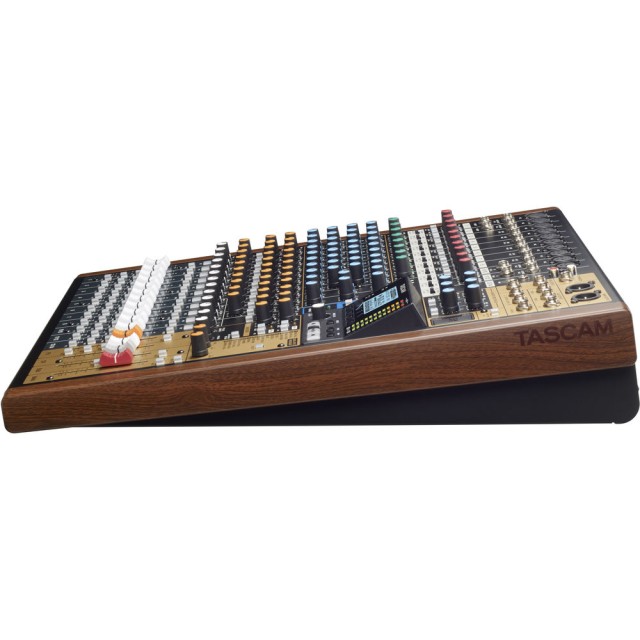

Tascam Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface

Name: Tascam Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface
Brand: TASCAM
SKU: Model 16
Price: 959 EUR
Availability: OutOfStock

SKU: Model 16

The highly flexible Tascam Model 16 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels including 10 HDDA microphone preamps with phantom power,…

More information

959 € with VAT 792.56 € without VAT

Price history

Availability

on request

SKU:
Model 16

Price history

DISCOUNTED SETS (1)

FeelWorld SDI HDMI PoE PTZ Camera with 20x Optical Zoom

Viltrox EF-M2 II (MFT – Canon EF Speed Booster 0.71x)

3 854.69 €save 69.22 €

DETAIL OF THE SET

Top accessories for Tascam Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface

Tascam AK-RM16 Rackmount Kit for Model 16

The Tascam AK-RM16 is a rackmount kit for the Model 16 mixer/recorder/interface.

55 €

In stock 2 pcs

Tascam AK-DC16 Dust Cover for Model 16

The Tascam AK-DC16 is a soft dust cover for the Model 16 mixer/recorder/interface.

58 €

In stock 1 pcs

Tascam Carrying Bag for Model 12 Mixer/Recorder

Dedicated padded carrying bag with external pocket and shoulder strap to enhance

68 €

on request

Product description SPECIFICATIONS

Product description

The highly flexible Tascam Model 16 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels including 10 HDDA microphone preamps with phantom power, two 1/4" Hi-Z jacks, eight balanced 1/4" mono line inputs, and two balanced 1/4" stereo line inputs. Additionally, the last stereo input can accept signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.

There is single-knob compression available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable and assignable 4-band semi-parametric EQ for fine tuning your mix. The Model 16 offers 15 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment. The integrated 16-track recorder takes its cue from Tascam's Portastudio line, offering multitrack recording with the ability to record the 14 input channels plus the main mix to an SD card as well as multichannel playback for advanced live performance backing or mixing. What's more, the simple interface allows you to overdub and punch in/out without extensive menu diving. Additionally, the Model 16 features a built-in 16x14 USB 2.0 audio interface (up to 24-bit / 48 kHz resolution) for DAW-based recording and playback.

Mixer

14 total input channels
10 microphone preamps with 48V phantom power
Two Hi-Z instrument inputs
12 balanced line inputs (eight mono, two stereo)
Single stereo channel for Bluetooth, USB, RCA, or 3.5mm stereo input
Inserts on channels 1-2
Main and sub stereo buses
Three aux sends (monitor 1, monitor 2, and effects)
Single-knob compressor for channels 1-8
4-band semi-parametric stereo EQ selectable for main or monitor outputs
Wireless Bluetooth 5.0 connectivity
Onboard effects processor with 16 editable and foot-controllable effects presets including reverb, delay, chorus, and flanger
60mm faders capable of fine adjustment
Independent input channel assign for live, internal MTR, or USB playback
Balanced XLR main outputs
Balanced 1/4" TRS sub outs, aux outputs, and control room outputs
1/4" stereo headphone output with dedicated volume control

Recorder

Multitrack recording function similar to the TASCAM Portastudio
16 tracks (14 input channels plus the main mix) can be recorded to an SD card
Multichannel playback for advanced live performance backing or mixing
Punch in/out recording capability
Overdub up to eight tracks simultaneously

Audio Interface

USB 2.0 audio interface
16 inputs (14 input channels plus the main mix)
14 outputs
Up to 24-bit / 48 kHz recording quality
Low round-trip latency

Optional Accessories

RC-1F footswitch (available separately) allows hands-free control of effects switching
Model 16 rackmount kit (available separately) enables convenient mounting in a 19" equipment rack
Model 16 dust cover (available separately) protects the Model 16 from dirt, scratches, and moisture

SPECIFICATIONS

Form Factor	Desktop
Number of Tracks	16
Maximum Simultaneous Tracks	14 x Recording
Maximum Sampling Rate	48 kHz / 24-Bit

Signal Processing

Gain/Trim Range	Mic Inputs: Up to 79 dB USB, SD: 24 dB XLR Mic Inputs: 0 dB to 50 dB 1/4" Line Inputs: -10 dB to +40 dB (Channels 1 to 8) -20 dB to +30 dB (Channels 9 to 12)
High-Pass Filter	100 Hz, 18 dB/Octave
EQ Parameters	Mono Channels: High: ±15 dB at 12 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.55 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz Mid: ±15 dB at 600 Hz, 0.55 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Master: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.5 to 5 Q (Parametric) Low: ±15 dB at 60 Hz (Shelving)

Connectivity

Analog Audio I/O	10 x XLR 3-Pin Balanced Mic Input 12 x 1/4" TRS Balanced Line Input 1 x Stereo RCA Coaxial Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Output 2 x 1/4" TRS Unbalanced Insert In/Out 2 x XLR 3-Pin Balanced Main Output 3 x 1/4" TRS Balanced Aux Output 2 x 1/4" TRS Balanced Control Room Output 2 x 1/4" TRS Balanced Subgroup/Bus Output 1 x 1/4" TRS Headphone Output
Phantom Power	48 V, Selectable On/Off
Host Connection Protocol	USB 2.0
Other I/O	1 x 1/4" TS Footswitch Input
Wireless Connectivity	Bluetooth

Performance

Frequency Response	Analog: 20 Hz to 30 kHz +0.5/-1 dB Digital: 20 Hz to 20 kHz +0.5/-1 dB
Maximum Input Level	XLR Mic Inputs: +10 dBu 1/4" Line Inputs: +22 dBu Insert Return: +18 dBu RCA Inputs: +8 dBV 1/8" / 3.5 mm Inputs: +8 dBV
Maximum Output Level	Main Outputs: +22 dBu Monitor/FX/Subgroup/Control Room Outputs: +16 dBu Insert Send: +18 dBu
Headphone Output Power	10 mW per Channel into 60 Ohms (Max)
Impedance	Main Outputs: 100 Ohms Control Room/FX/Monitor/Subgroup Outputs: 200 Ohms Insert Send: 100 Ohms Headphone Outputs: 32 Ohms XLR Mic Inputs: 1.8 Kilohms 1/4" Line Inputs: 22 Kilohms Insert Return: 10 Kilohms RCA Inputs: 10 Kilohms 1/8" / 3.5 mm Inputs: 10 Kilohms
THD	Mic Inputs: < 0.01% (Min Gain, +10 dBu Input, 1 kHz) < 0.004% (Min Gain, +4 dBu Input, 1 kHz)
Crosstalk	-80 dB (1 kHz)
EIN	-127 dBu (150-Ohm Source, Max Gain)
