24 Channel Multitrack Recorder with Integrated USB Audio Interface and Analog Mixer. TASCAM has been continuously providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface.
Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today’s working and recording musician.
Simple, Intuitive Design

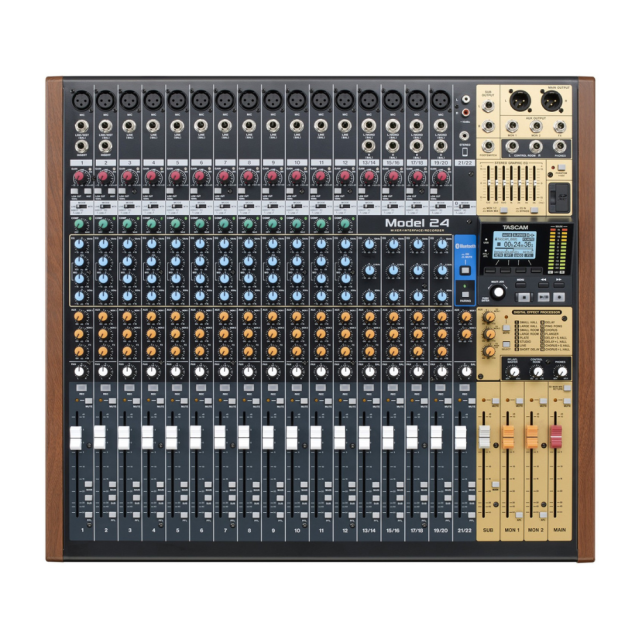

One glance is all you need. The TASCAM Model 24 was developed for easy operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access.
The Model 24 is truly a modern take on a classic design.
TASCAM’s Revolutionary Recording Technology
Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it’s time to record the TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to punch in/out eight tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for mixdown.
Flexible Connectivity
In addition to the studio quality mic preamps and powerful EQ and routing options, the Model 24 features a dedicated stereo channel 1/8”, dual RCA and Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface, and connects directly to your PC or Mac for easy integration with your DAW of choice.
Durability and Reliability
Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM’s legendary reliability will keep the music going.

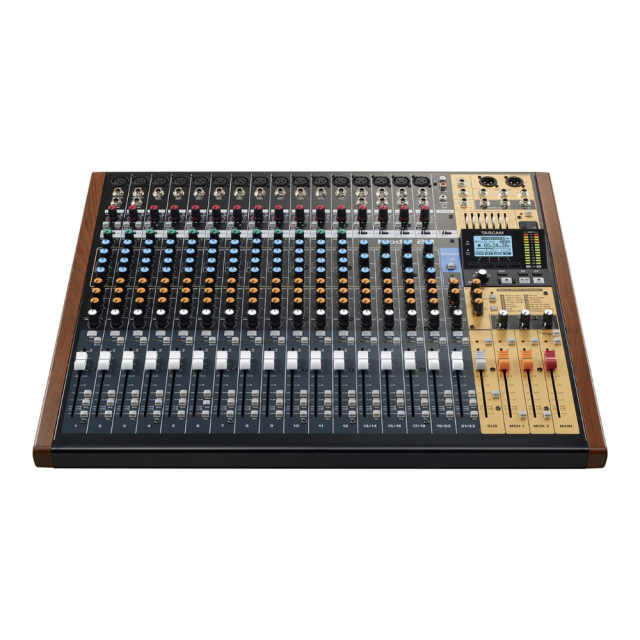

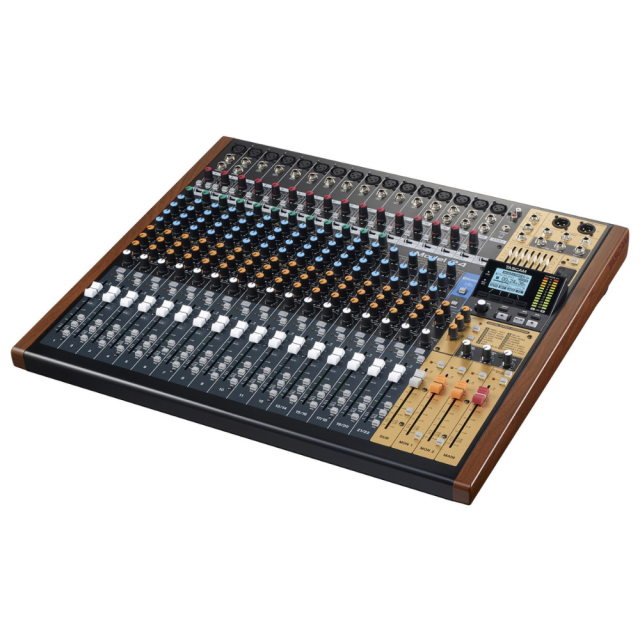

Model 24 consol
Recording section | |
Supported Media | SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required. |
File System | SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT |
Recording File Format | WAV(BWF) |
Playback Format | WAV(BWF) |
Sampling Frequency | 44.1k / 48k Hz |
Bit Depth | 16 / 24 bit |
Recordable Channel | Max. 24 channels (22ch + 2 stereo mix) |
Audio Inputs | |
MIC IN | CH1 to 12, 13/14 to 19/20 |
Connector | XLR 3-31 (1: GND, 2: HOT, 3: COLD) |
Maximum Input Level | +10dBu |
Nominal Input Level | –8dBu |
Minimum Input Level | –58dBu |
Gain Adjustable Range | 0 to 50dB |
Input Impedance | 1.8kohm |
Phantom Power supply | +48V |
LINE IN | CH1 to 20 |
Connector | 1/4" (6.3mm) TRS Phone jack (Balanced) |
Maximum Input Level | +22dBu |
Nominal Input Level | +4dBu |
Gain Adjustable Range | –10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20 |
Input Impedance | 22kohm |
INSERT | CH 1 and 2 |
Connector | 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND) |
Return (Ring) | |
Maximum Input Level | +18dBu |
Nominal Input Level | 0dBu |
Input Impedance | 10kohm |
Send (Tip) | |
Maximum Output Level | +18dBu |
Nominal Output Level | 0dBu |
Output Impedance | 100ohm |
RCA INPUT | |
Connector | RCA Pin jack (Unbalanced) |
Maximum Input Level | +8dBV |
Nominal Input Level | –10dBV |
Input Impedance | 10kohm |
STEREO INPUT | |
Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced) |
Maximum Input Level | +8dBV |
Nominal Input Level | –10dBV |
Input Impedance | 10kohm |
OUTPUTS | |
MAIN OUTPUT | |
Connector> | XLR 3-32 (1: GND, 2: HOT, 3: COLD) |
Maximum Output Level | +22dBu |
Nominal Output Level | +4dBu |
Output Impedance | 100ohm |
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT | |
Connector> | 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND) |
Maximum Output Level | +16dBu |
Nominal Output Level | -2dBu |
Output Impedance | 100ohm |
PHONES OUT | |
Connector | 1/4" (6.3mm) Stereo Phone jack |
Output Level | 80mW + 80mW (32 ohm loaded) |
Working impedance | 16 to 600 ohm |
REMOTE | Compatible with TASCAM RC-1F Foot Switch |
Connector | 1/4" (6.3mm) TS Phone jack |
USB | |
Connector | USB B type 4-pin |
Transfer Format | USB2.0 High-Speed |
Format | Mass-storage class/USB Audio Class 2.0 (USB class-compliant) |
USB Audio | |
Sampling Rate | 44.1k / 48k Hz |
Bit Depth | 16 / 24 bit |
INPUT | 24ch *Output from this unit |
OUTPUT | 22ch *Input to this unit |
Bluetooth® | |
Output Class | Class 2 (Transmission range: approx. 33ft. / 10 m) * Transmission range may vary, depending on surroundings. |
Bluetooth® version | 4.0 |
Supported Profile | A2DP, AVRCP 1.0 |
Supported A2DP Codecs | SBC, AAC |
A2DP Content Protection | SCMS-T |
Channel EQ | |
Low-Cut | 100Hz, –18dB / Octave |
Hi-Shelving | +15dB / –15dB, Cut off frequency: 12kHz |
Mid | Peaking (MONO): +15dB / –15dB, 100Hz to 8kHz Variable (STEREO): +15dB / –15dB, Center frequency = 600Hz MID Band Q Fix, 0.55 |
Low-Shelving | +15dB / –15dB, Cut off frequency = 80Hz |
Graphic EQ | |
Band | 7-Band |
Frequency | 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz |
Gain | +15dB / –15dB |
FX | |
Type | 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL |
Power | AC 100 to 240V, 50/60Hz |
Power Consumption | 52 W |
Dimensions (W×H×D) | 576 × 112.5 mm × 513 (including side panels, knobs and connectors) 540 × 112.5 mm × 503 (excluding side panels. including knobs and connectors) |
including Side panels | 22.67" × 4.43" × 20.20" / 576 × 112.5 mm × 513 (including knobs and connectors) |
excluding Side panels) | 20.26" 4.43" × 19.80" × / 540 × 112.5 mm × 503 (including knobs and connectors) |
Weight | 22.49 lbs. / 10.2 kg |
Operating Temperature | 41˚ to 95˚F / 5˚ to 35˚C |
Included Items | AC Cord, Owner's manual (incl. Warranty card), TASCAM ID registration guide |
Available Accessories | TASCAM RC-1F Footswitch |
NOTE: 0dBV = 1Vrms, 0dBu = 0.775Vrms
Residual Output Noise | –100dBu (MAIN OUT, MAIN fader: MIN) |
Equivalent Input Noise | –128dBu (Mono Input Channel, Rs: 150ohm, GAIN knob: Max) |
Total Harmonic Distortion | 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.) 0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.) |
Frequency Response | 20Hz to 30kHz (+0.5/–1.0dB: Analog) 20Hz to 20kHz (+0.5/–1.0dB: Digital) |
Crosstalk | –80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise) |
Maximum Gain | 74dB (MIC to MAIN OUT) 50dB (MIC to INSERT OUT) 74dB (MIC to SUB OUT) 79dB (MIC to CR OUT) 75dB (MIC to MONITOR OUT) 75dB (MIC to FX OUT) 24dB (USB/SD to MAIN OUT) (EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise) |
NOTE: 0dBu = 0.775Vrms
Windows | |
Compatible Computers | Windows-compatible computer with a USB2.0 port |
CPU | Dual core / 2GHz or faster |
Memory | 2GB or more |
Driver | USB Audio Class 2.0, ASIO2.0, WDM (MME) |
Screen Resolution | 1280 × 800 Dots or more |
Macintosh | |
Compatible Computers | Apple Macintosh computer with a USB2.0 port |
CPU | Dual core / 2GHz or faster |
Memory | 2GB or more |
Driver | Core Audio |
Screen Resolution | 1280 × 800 Dots or more |
Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7
macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra (10.12) , OS X El Capitan (10.11)
iOS 15 , iPadOS 15 , iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13
