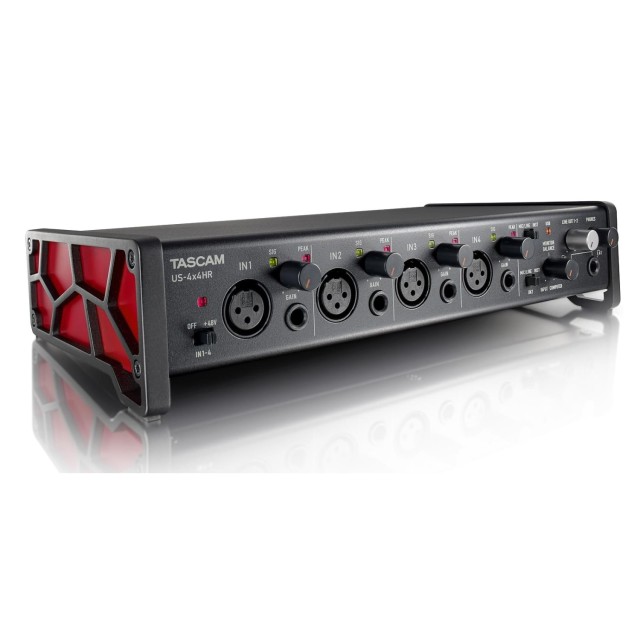

Tascam US-4x4HR USB Audio/MIDI Interface

+2
SKU: US-4x4HR

High-Resolution USB Audio/MIDI Interface (4 in, 4 out).

More information

287 € with VAT 237.19 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
SKU:
US-4x4HR
Add to Compare Price history

Top accessories for Tascam US-4x4HR USB Audio/MIDI Interface

Canare DMX203 kabel 3pin XLR (M) / XLR (F) 2m

Canare DMX203 3pin XLR (M) / XLR (F) cable. Custom made cable made of high quality
19 €
To be sent 4 pcs

Sennheiser HD 280 Pro

HD 280 PRO are closed, circumaural wired headphones designed for professional monitoring.
115 €
In stock 3 pcs
Product description

Product description

High-Resolution USB Audio/MIDI Interface (4 in, 4 out).

When two audio channels are not enough

The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4x4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad*. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.

Lower noise and distortion – better sound than ever

The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.Tascam US-4x4HR

Usability is key

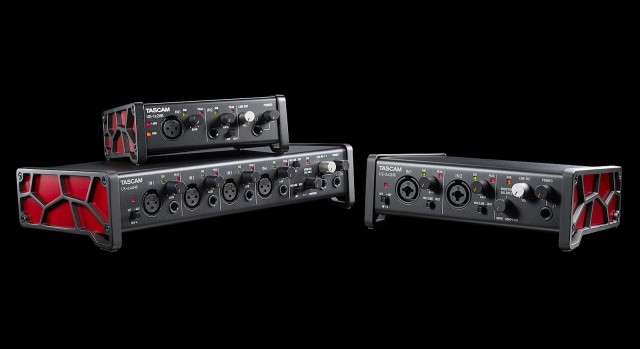

All US-HR models offer a unique dye-cast aluminum honeycomb structure on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won’t move when cables are connected or disconnected. Equally important, the upward tilt offers the ergonomic benefit of being angled in such a way as to make the interface easy to work with.

With four microphone preamps for multi-mic setups, four configurable balanced outputs, superb sound quality and easy operation, the US-4x4HR is the ideal choice for the demanding musician, producer or home-recordist requiring more than two audio channels.

* An optional battery pack or AC adapter is required when used with an iPhone or iPad.

Features at a glance

  • Advanced version of our popular US-4x4 with even better sound quality
  • Provides four audio inputs and four audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
  • Audio resolution up to 192 kHz / 24 bit
  • USB Audio Compliance 2.0 for iOS connection

Hardware features

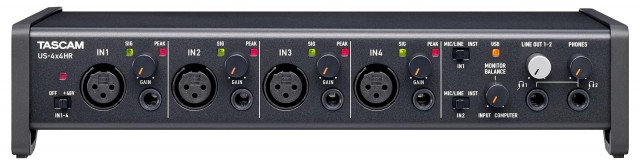

  • Four analogue mic/line inputs on individual XLR and TRS balanced connectors
  • High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –128 dBu)
  • Wide input gain range of 56 dB, ideal for dynamic microphones
  • Switchable 48-Volt phantom power on XLR inputs
  • TRS inputs 1/2 can each be switched to instrument-level for direct recording of guitar or bass

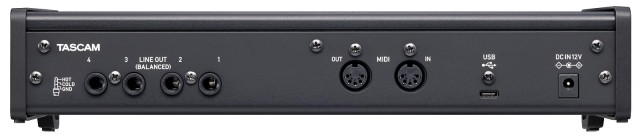

  • Four line outputs (balanced TRS)
  • Direct monitor option for low-latency monitoring
  • Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
  • Two headphones outputs delivering 45 mW per channel
  • Independent level controls for line and phones outputs
  • MIDI input/output
  • Standalone operation as a simple preamplifier for practice sessions and more
  • Rugged aluminum body
  • Angled industrial design for ease-of-use on a desktop

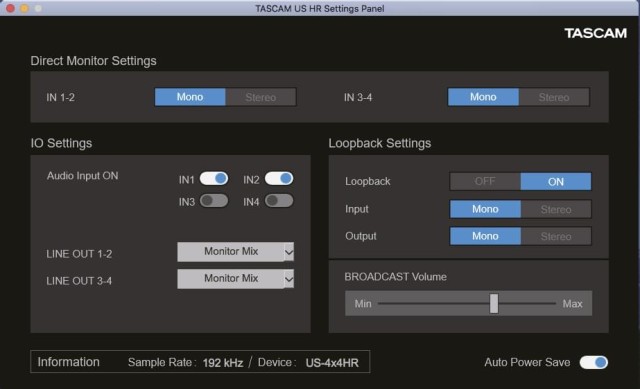

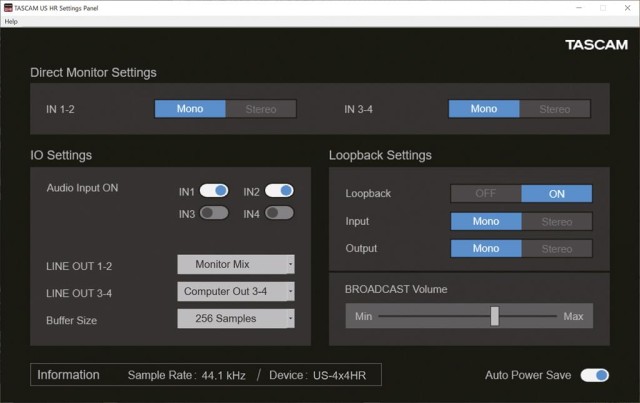

Software features

  • In-house developed driver for Windows devices ensures stable operation with low latency
  • The buffer size for Windows can be selcted up from 4 samples to facilitate a recording environment with ultra-low latency
  • Each input can be switched on/off individually
  • Input monitor mode can be selected between stereo and mono
  • You can select which signals are output at the line outputs
  • A loopback function allows two audio channels from the computer to be merged with the input signals and send this mix to the streaming or communication software
    • Input and computer signals can each be selected between stereo and mono
    • A slider lets you adjust the broadcast level
  • Switchable auto power save mode to reduce battery consumption on the laptop/tablet computer in mobile use
  • Automatic update function available for software, driver and firmware updates (you can install new updates with the press of a button)
  • Bundled with Cubase LE and Cubasis LE3, IK Multimedia SampleTank 4 SE and Antares Auto-Tune Unlimited (free 3-month subscription)
  • Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand)

New function with firmware v1.10

  • The loopback function now allows all four input channels to be mixed with a stereo signal from the computer
Parameters

Parameters

Manufacturer: TASCAM
Category: Audio interface
