Teradek Bolt 500 DSMC2 Wireless TX

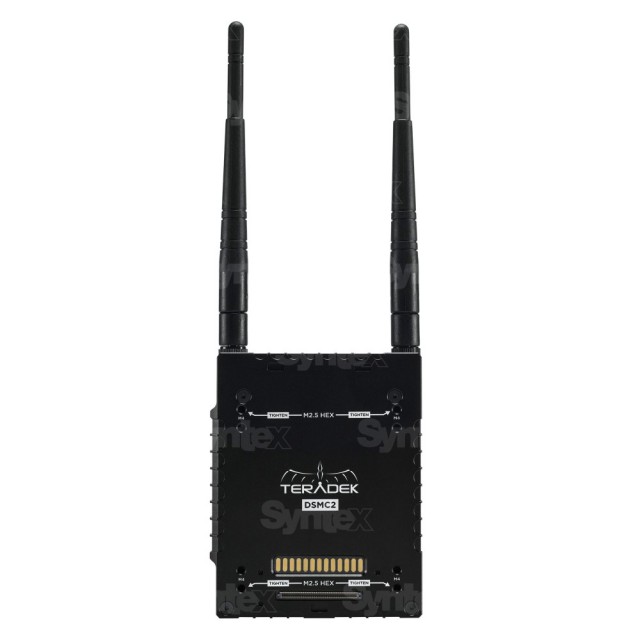

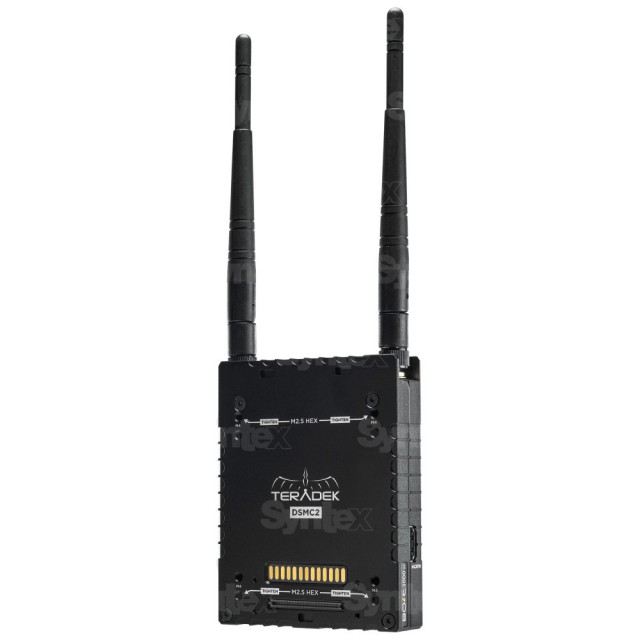

The Bolt DSMC2 is a wireless transmitter for direct mounting on RED DSMC2 series cameras. Available in 150 m (Bolt 500), 300 m (Bolt 1000) and 900 m (Bolt 3000) range versions.

• Bolt DSMC2 is a wireless video module for direct mounting on RED DSMC2 series cameras


• The Bolt DSMC2 models feature the same latent-free technology as the Bolt XT series and, by supporting RED DSMC2 cameras, allow you to create more compact and lighter camera Rigs, without excess cabling.


• The Bolt DSMC2 modules allow the connection of additional DSMC2 accessories, such as DSMC2 Base Expander or Battery Expander modules


• All models are the same size, only the 3000 variant is fitted with larger antennas

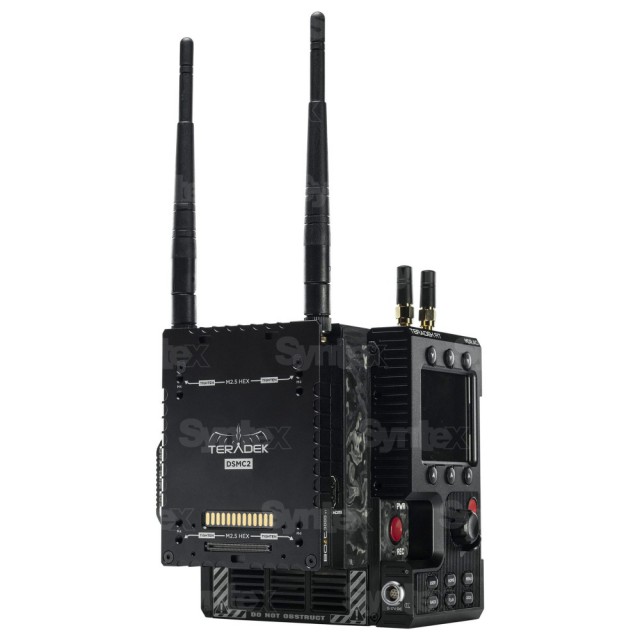

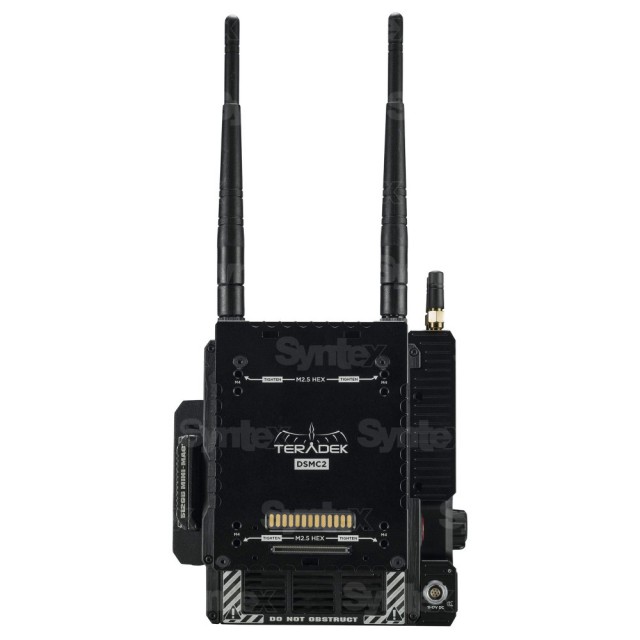

A built-in POGO connector interconnects the RED camera and uses the RED POGO connector system to supply current and secure the rear of the DSMX2 camera. The included antennas provide a strong signal that can travel up to 150 meters. The transmitter supports up to four receivers and built-in AES-128 encryption protects your video from prying eyes, while the noise-cancellation feature keeps your video clear, even when operating at 2.4 and 5.8 GHz frequencies.

The Bolt DSMC2 receives video from the HDMI monitor track on the camera, which is shared with the EVF/LCD port on the left side of the camera
Designed to integrate into the RED DSMC2 ecosystem
Compatible with Bolt 500 XT, 500 LT, Sidekick II and 703 Bolt universal receivers
