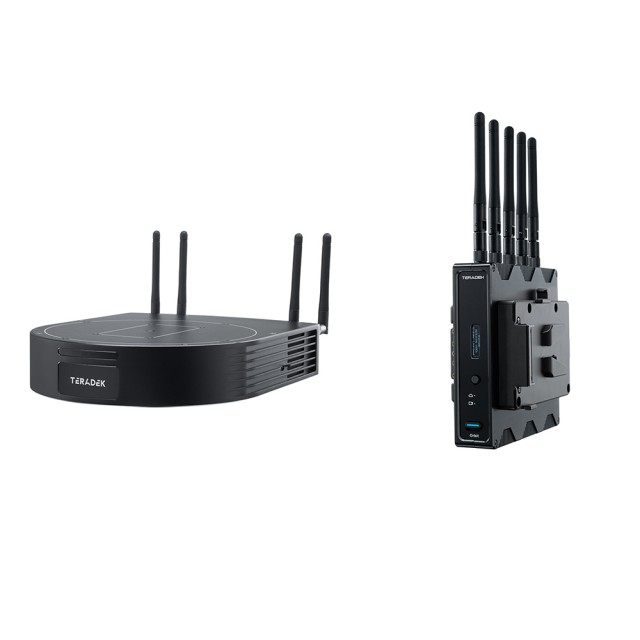

Teradek Orbit PTZ HD TX/RX Set

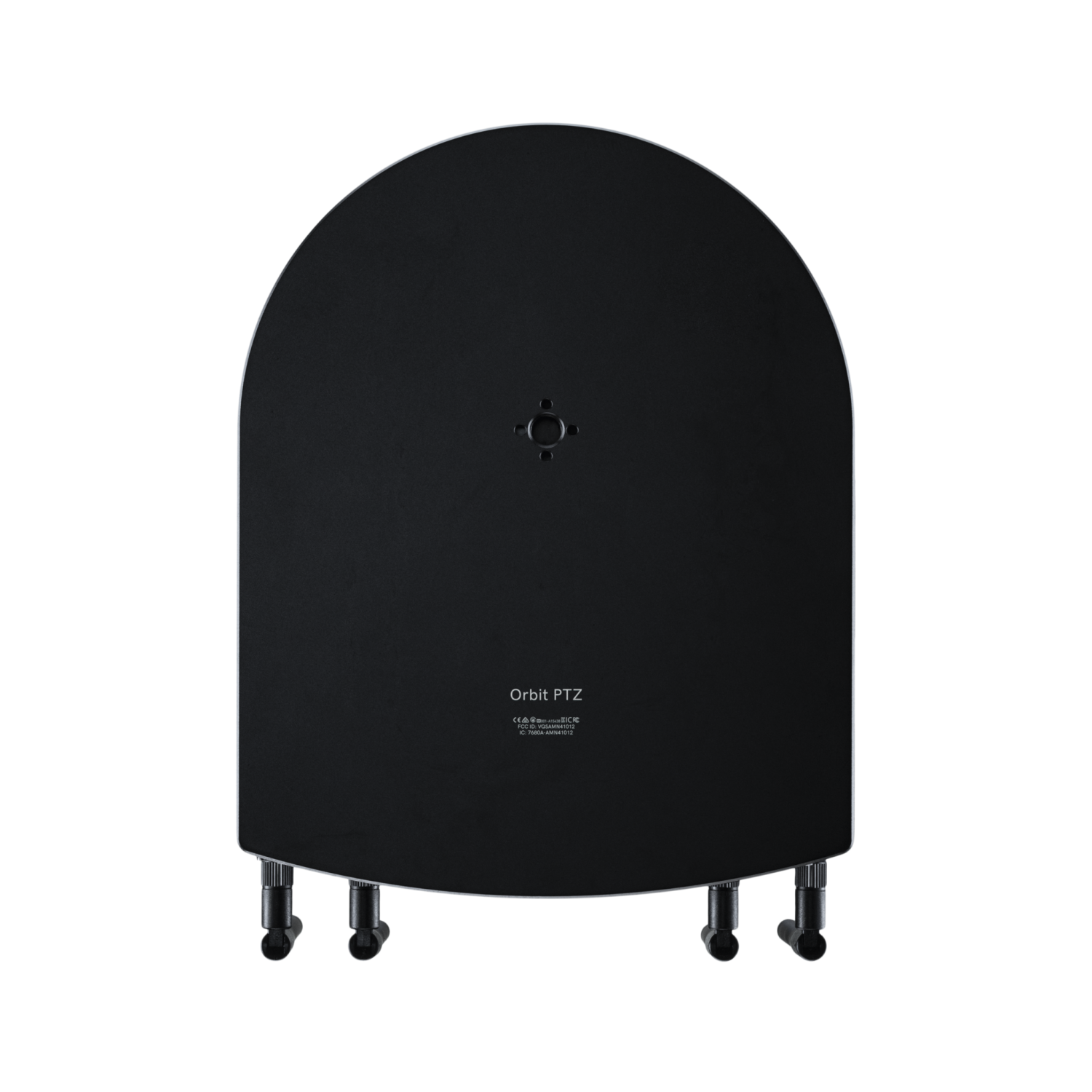

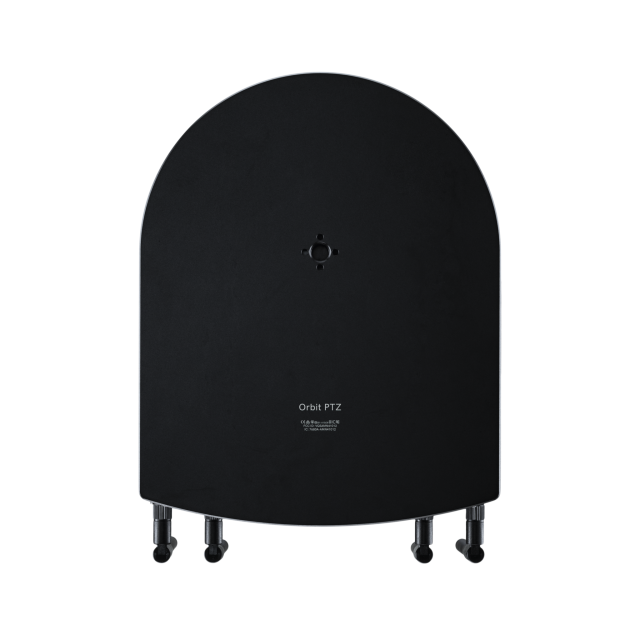

Transmit zero-delay, uncompressed, HD video and camera control commands over a range of up to 305 m. Orbit PTZ mounts beneath any PTZ camera and includes a looping power supply, giving you a seamless, long-range wireless solution for quick deployment and cable-free workflows.

4K Wireless Video & Control for PTZ Cameras
Transmit zero-delay, uncompressed, HD video and camera control commands over a range of up to 305 m. Orbit PTZ mounts beneath any PTZ camera and includes a looping power supply, giving you a seamless, long-range wireless solution for quick deployment and cable-free workflows.

Reliable, Efficient Wireless Transmission
Orbit PTZ uses Teradek’s patented Joint Source Channel Coding (JSCC), and MIMO and OFDM technologies, to transmit video over the unlicensed 5GHz band and 4.9GHz public safety band. This enables far better channel utilization and handling of interference than competing H.264 / HEVC transmission methods.

Real-Time Camera Control
Orbit PTZ features RS-232 and RS-422 connectivity for PTZ camera control. Camera commands travel over a zero-latency wireless link between transmitter and receiver, with support for VISCA and Panasonic AW protocols. Pair transmitters and receivers with the touch of a button, monitor channel interference, set operating frequencies, and control your PTZ cameras directly from the app, no cables needed!

Unbreakable Encryption
Orbit PTZ offers the industry’s best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization.

Easy Mobile Configuration
Command your wireless workflow from the palm of your hand with the Teradek Control app for iOS and Android. Pair transmitters and receivers with the touch of a button.

Wireless HD HDR video with < 1 ms latency
Uncompressed, 10-bit, 4:2:2 image quality
Up to 305 m of wireless range
License-free 5GHz operation

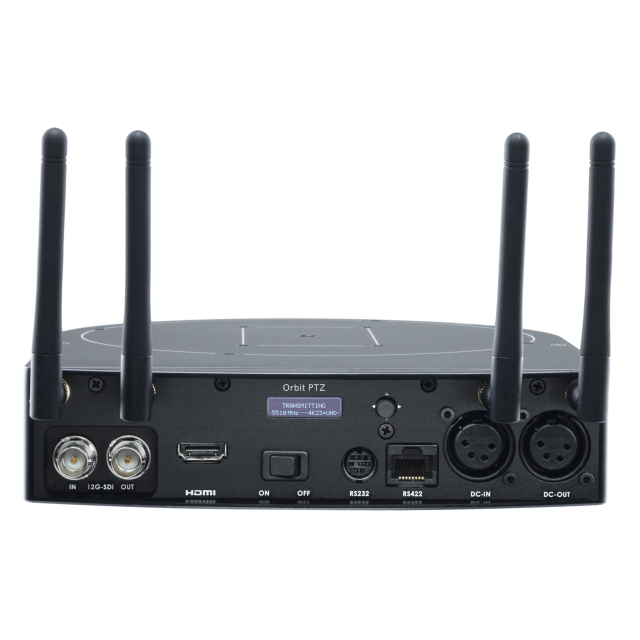

Transmit PTZ camera control commands via RS-232 and RS-422
AES-256 and RSA 1024 encryption
Supports all standard resolutions and frame rates, including HD

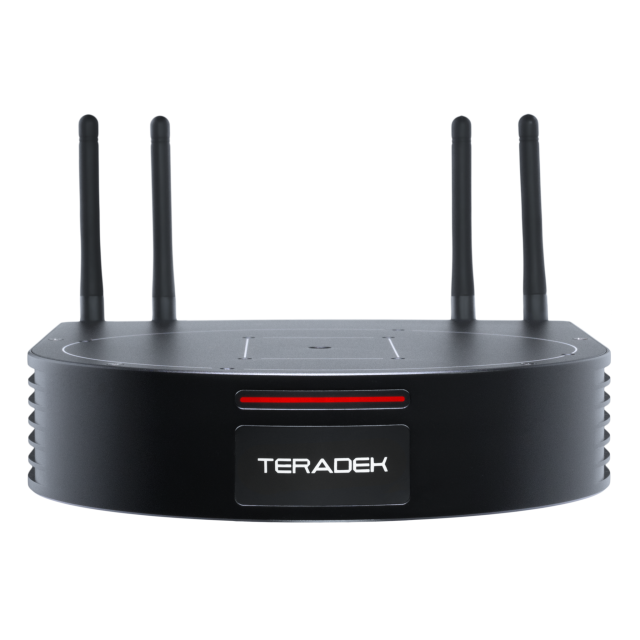

Integrated tally light
