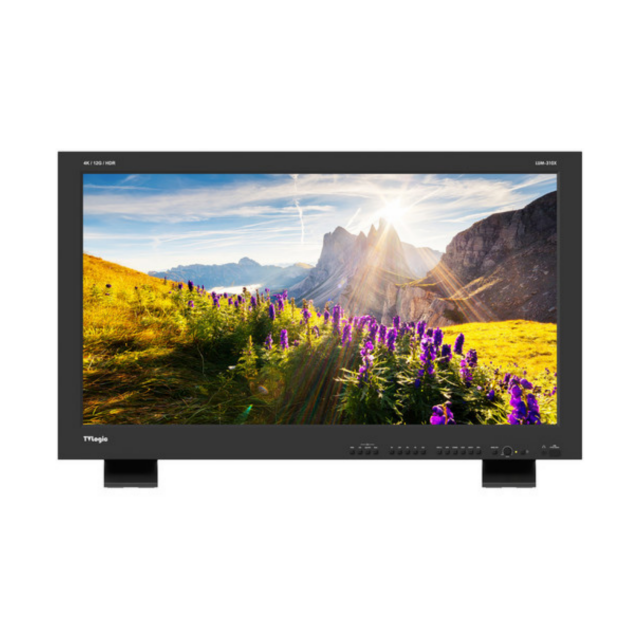

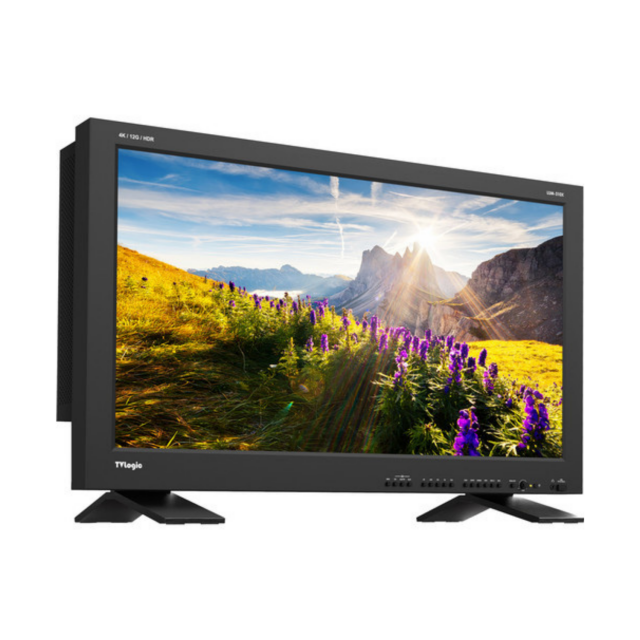

TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
SKU: TVL-LUM-310X
The LUM-310X 31" 4K HDR Reference Monitor from TVLogic features a dual-layer, in-plane switching (IPS) screen designed to reproduce reference HDR content at a maximum brightness of 1000 cd/m² with a simultaneous black minimum of 0.001 cd/m². The LUM-310X supports PQ, HLG, and S-Log3 HDR standards, as well as Rec. 709, Rec. 2020, and DCI color gamuts. It features…
Call us for pricing information
Availability
14-30 days
Top accessories for TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
INFINITEC HDMI TO HDMI ultra thin flixible 4K cable, 50cm
Ultra-thin and flexible HDMI cables for the needs of all creative professionals.
23 €
In stock 4 pcs
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 3m
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
22 €
In stock > 5 pcs
HDMI cable 2.0 UHD 4K High Speed + Ethernet 10m
Propojovací HDMI 2,0 kabel UHD 4K High Speed + Ethernet kabel s integrovaným zes
47 €
To be sent 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
7.9 €
In stock 2 pcs
Canare L-3C2VS BLK BNC 5m SDI cable
Canare L-3C2VS BLK BNC (M-male) / BNC (M-male) 5m
18 €
In stock 2 pcs
Product description
Product description

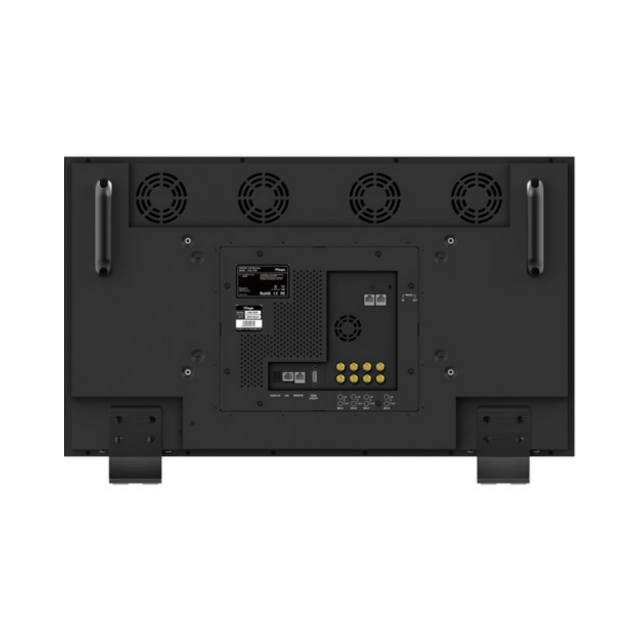

The LUM-310X 31" 4K HDR Reference Monitor from TVLogic features a dual-layer, in-plane switching (IPS) screen designed to reproduce reference HDR content at a maximum brightness of 1000 cd/m² with a simultaneous black minimum of 0.001 cd/m². The LUM-310X supports PQ, HLG, and S-Log3 HDR standards, as well as Rec. 709, Rec. 2020, and DCI color gamuts. It features a 4096 x 2160 maximum video resolution. Additional features include a 3D LUT for precise color reproduction, a 1,00,00:1 contrast ratio, 78/78° viewing angles, and a 1-second color switching speed. There are 12G/3G-SDI and HDMI ports for connectivity. Firmware can be updated via a USB memory stick (available separately). An AC power cable, a stand, and a carrying case are included.
- 31" 4096 X 2160 dual-layer LCD monitor
- Maximum brightness of 1000 cd/m² with simultaneous black minimum of 0.001 cd/m²
- Supports Perceptual Quantizer (PQ), SLog3, and hybrid-log gamma (HLG) HDR standards
- Blue only/mono channel (instead of red and green channels) adjusts the color tones (tones and saturation) of the screen using SMPTE color bars
- H/V delay allows you to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
- Marker displays various kinds of aspect ratios on the screen
- Waveform Y displays the luma YCbCr component of the input signal into waveform
- Vectorscope displays the color components 'B-Y' and 'R-Y' of the input signals onto the X-Y axis
- Underscan mode constrains the size of the image so the monitor shows everything the camera is seeing
- Overscan mode crops the extra area around the four edges of the image
- 1:1 pixel mapping modes for HD/SD displays the original image resolution without scaling to match a certain resolution or an aspect ratio
- Wide color gamut for accurate color reproductionCC-608 ANC, CC-608 LINE 21, and CC-708 closed caption feature
- 3D LUT (Look-Up-Table) for precise color reproduction
- User aspect feature adjusts the width/height display ratio
- Firmware updates via USB memory stick (available separately)
