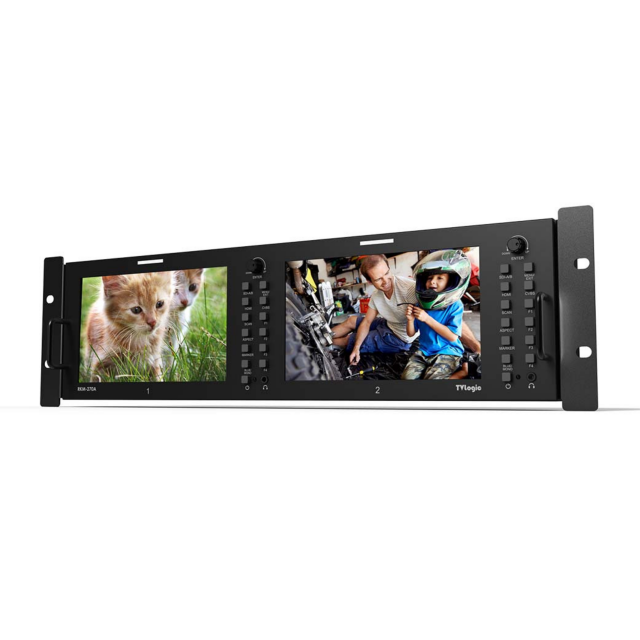

TVLogic RKM-270A Dual 7" HD/SD Multichannel LCD Rack Monitor

  • Free transport
SKU: TVL-RKM-270A

…

More information

3 299 € with VAT 2 726.45 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
TVL-RKM-270A
Add to Compare Price history

Top accessories for TVLogic RKM-270A Dual 7" HD/SD Multichannel LCD Rack Monitor

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 2m

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
18 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.1 €
In stock 4 pcs

SmallRig Ultra Slim 4K mini HDMI cable 55cm 3041

  • 4K / UHD
SmallRig Ultra Slim 4K HDMI cable (C to A) with a length of 55cm. The HDMI 2.0 version
12 €
In stock > 5 pcs

Canare L-3C2VS BLK BNC 1m

Canare L-3C2VS BLK BNC (M-male) / BNC (M-male) 1m
11 €
To be sent 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
7.9 €
In stock 2 pcs

TVLogic V-Mount-17

This V-Mount Battery Plate from TVLogic enables you to power your compatible monitor
339 €
on request

TVLogic V-Mount-F7H-C

V-Mount Battery Adapter for F-7H / F-7H mk2 (Cost Effective)
206 €
3-5 days

Show all accessories

Product description

Product description

A rack-mount monitor with 2 × 7" LCD screens, which has the same high performance display as LVM-074W. Wide viewing angle IPS LCD with 1024 x 600 resolution. It supports SDI in/out and HDMI input.
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor inputsSDI
Panel resolution1024x600
