Vaxis Storm 2000 Wireless Kit (V-Mount)

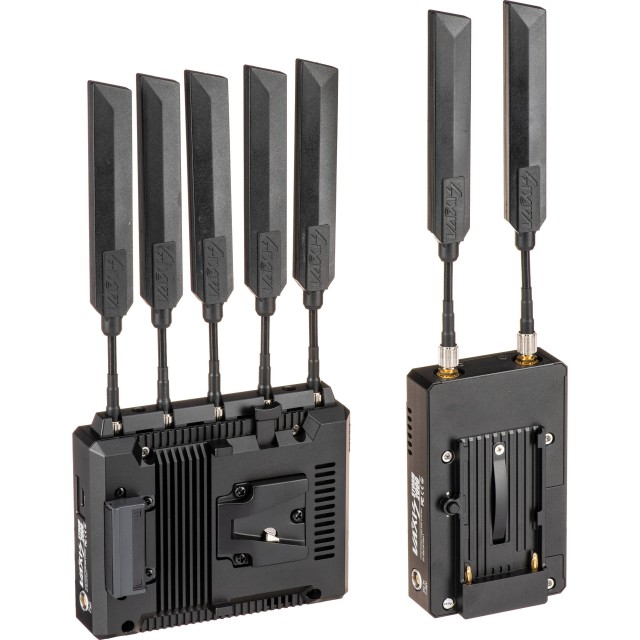

The Vaxis Storm 2000 HDMI/SDI wireless transmission system can transmit uncompressed 1080p60 video with near zero latency, and in the 5 GHz range. Included are seven antennas, two on the transmitter and five on the receiver, helping to transmit to a range approx. 600 m (line of sight). The transmitter supports multicast, allowing it to transmit a single video signal to multiple receivers, including other Vaxis models such as the Storm 058, 800, 1000S, and 5000. Each unit can be powered using its 2-pin LEMO type connector with a separately available cable and an AC or DC source. The receiver can also be powered by a V-Mount battery plate, available separately.

• Wireless Range: 600 m (Line-of-Sight)
• Number of Channels: 20
• Frequency Band: 5,1-5,9 GHz
• Bandwidth: 20/40 MHz
• Compression: none
• Latency: < 1 ms (supports ARRI 0S delay functionality)
• Video Format: 1080p24/23,98, 1080p60/59,94, 1080p50, 1080i60/59,94, 1080i50, 1080PsF30/29,97, 1080PsF24/25/23,98, 720p60/59,94, 720p50, 525i, 625i
• DC Input Power: 7 - 36 V= (2-Pin LEMO Input)
• Battery: Receiver 1x V-Mount
• Video I/O: Transmitter: 1x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Loop Output, 1x HDMI Type A Input; Receiver: 2x BNC (3G-SDI) Output, 1x HDMI Type A Output
• Dimensions: Transmitter 113 x 70 x 36 mm, Receiver 126 x 94 x 39,4 mm
• Weight: Transmitter 254 g, Receiver: 405 g
