Viltrox DC-550 Pro

The Viltrox DC-550 Pro is a compact 5.5-inch high-brightness monitor with 1200 Nits brightness, Full HD resolution, and professional…

More information

230 € with VAT 190.08 € without VAT
-+
Availability
on request
Product description

Product description

The Viltrox DC-550 Pro is a compact 5.5-inch high-brightness monitor with 1200 Nits brightness, Full HD resolution, and professional monitoring tools, making it an ideal choice for filmmakers and content creators.

The Viltrox DC-550 Pro is a high-performance 5.5-inch Full HD monitor designed for precise and reliable on-set monitoring. Featuring 1920x1080 resolution, 1200 Nits brightness, and a 1200:1 contrast ratio, it ensures crisp visuals even in bright environments. The 178° ultra-wide viewing angle allows clear monitoring from multiple perspectives, enhancing usability for professional film and video production.

Supporting 4K 30Hz signal input and output via HDMI 1.4, the DC-550 Pro provides seamless connectivity with various camera systems. It also includes RGB/Luminance histogram and three parade waveforms, offering advanced exposure and color analysis for accurate shooting. The monitor is firmware upgradeable via SD card, ensuring it stays up-to-date with the latest features.

Its compact and lightweight design, combined with NP-F series battery support and Type-C/12V power input, makes it an excellent choice for portable video production. A 3.5mm headphone jack allows for real-time audio monitoring, enhancing workflow efficiency.

Key Features:

  • 5.5-inch Full HD Display: 1920x1080 resolution with a high 1200:1 contrast ratio.

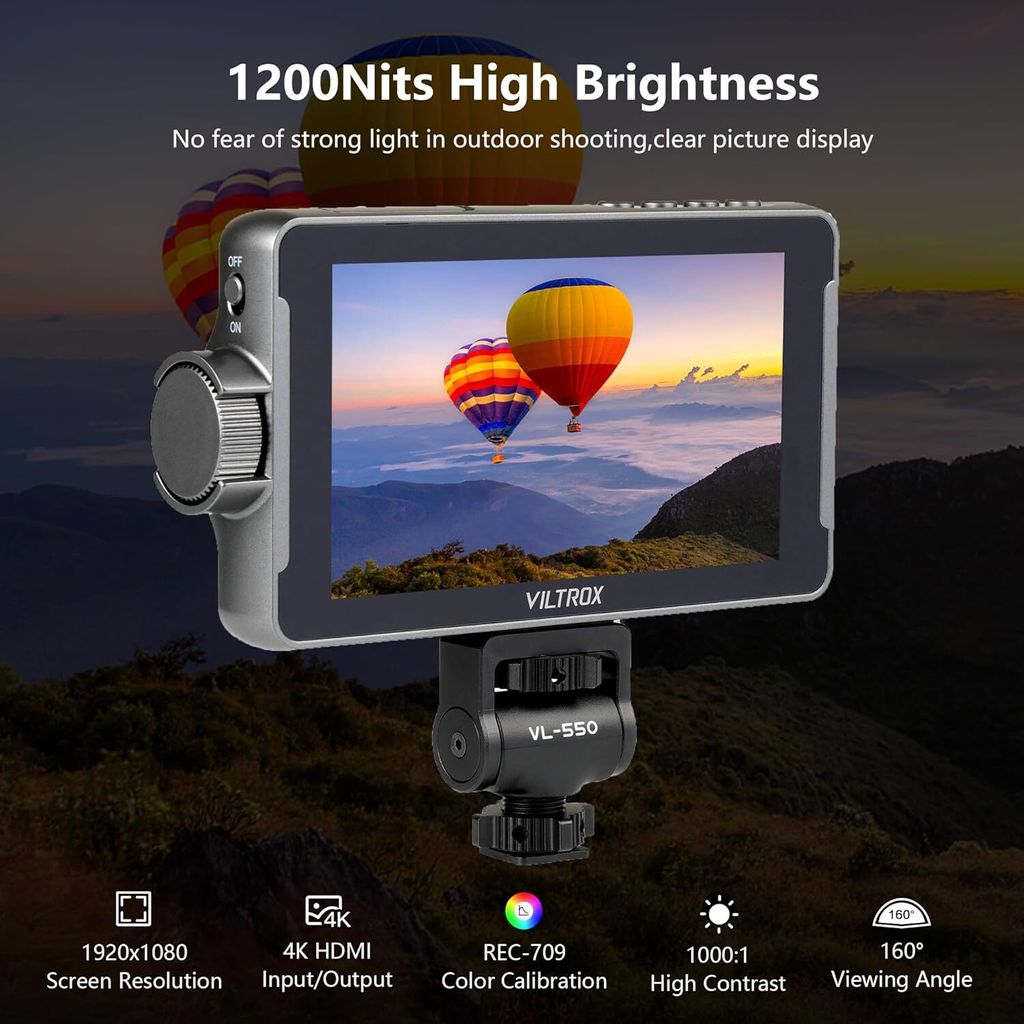

  • 1200 Nits Brightness: Ensures clear visibility in outdoor and bright lighting conditions.
  • 4K 30Hz HDMI Input/Output: Seamless integration with cameras and video setups.
  • Professional Monitoring Tools: Includes RGB/Luminance histogram, 3 parade waveforms.
  • Wide Viewing Angle: 178° ultra-wide design for flexible monitoring.
  • Versatile Power Options: Supports NP-F550/F570/F750/F770/F960/F970 batteries, DC12V, and Type-C power.
  • Compact & Lightweight: Only 280g, making it highly portable for on-the-go use.

Specifications:

  • Screen Size: 5.5-inch LED
  • Resolution: 1920x1080 pixels
  • Brightness: 1200cd/m²
  • Contrast Ratio: 1200:1
  • Viewing Angle: 178°

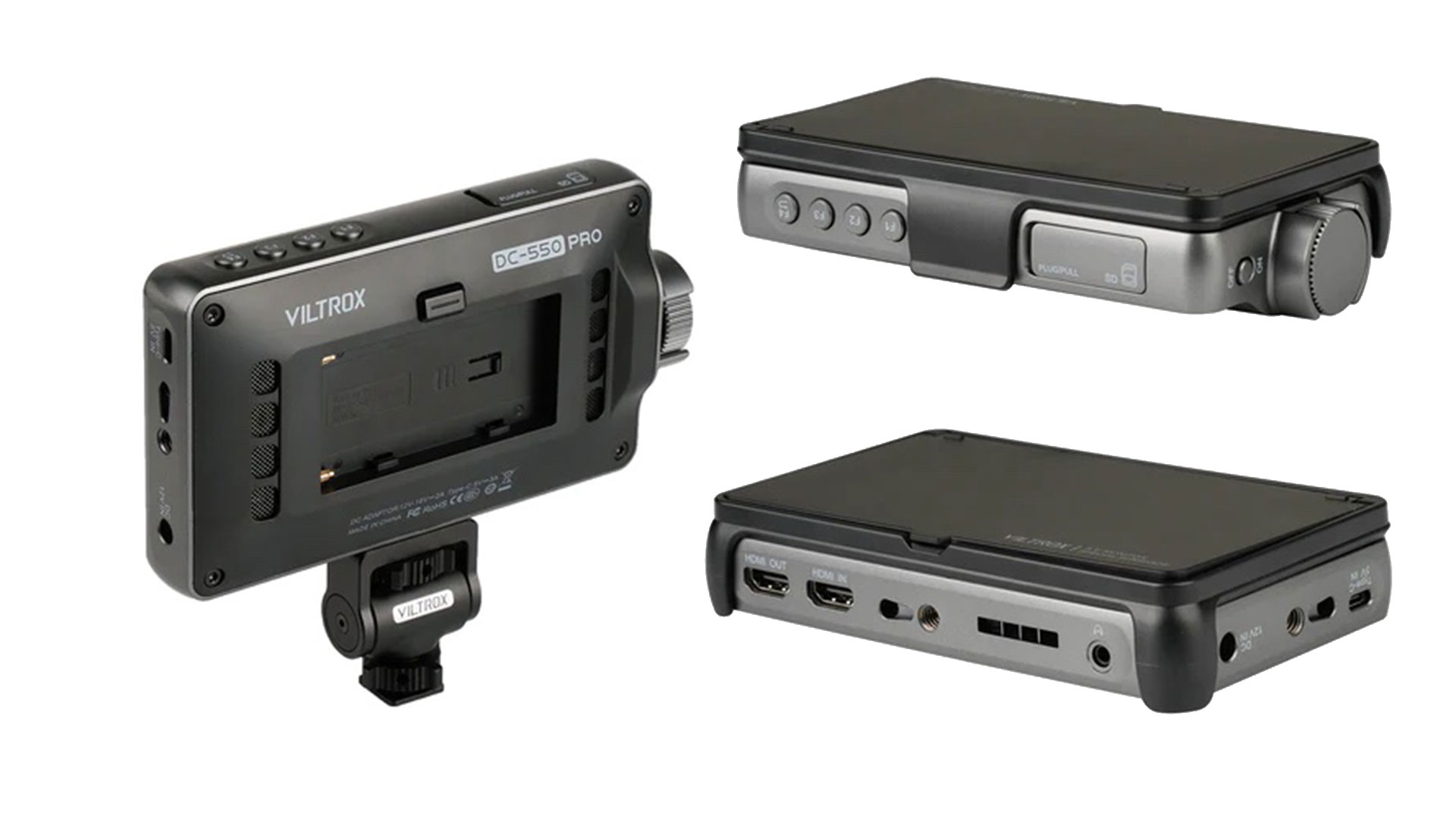

  • Input/Output: HDMI 1.4 (supports 4K 30Hz)
  • Audio Output: 3.5mm headphone jack
  • Firmware Upgrade: SD card
  • Power Supply: DC 12-18V/2A, Type-C 5V/3A
  • Battery Compatibility: NP-F550/F570/F750/F770/F960/F970
  • Operating Temperature: 0 to +40°C
  • Storage Temperature: -20 to +60°C
  • Dimensions: 165x91x28.5mm
  • Weight: Approx. 280g
Parameters

Parameters

Manufacturer: Viltrox
Category: Studio Monitors
