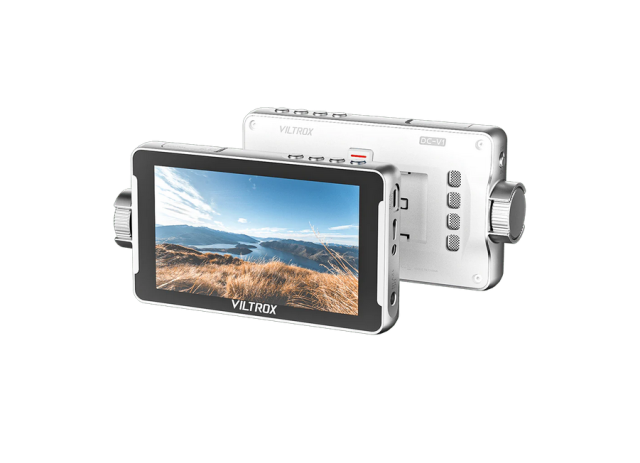

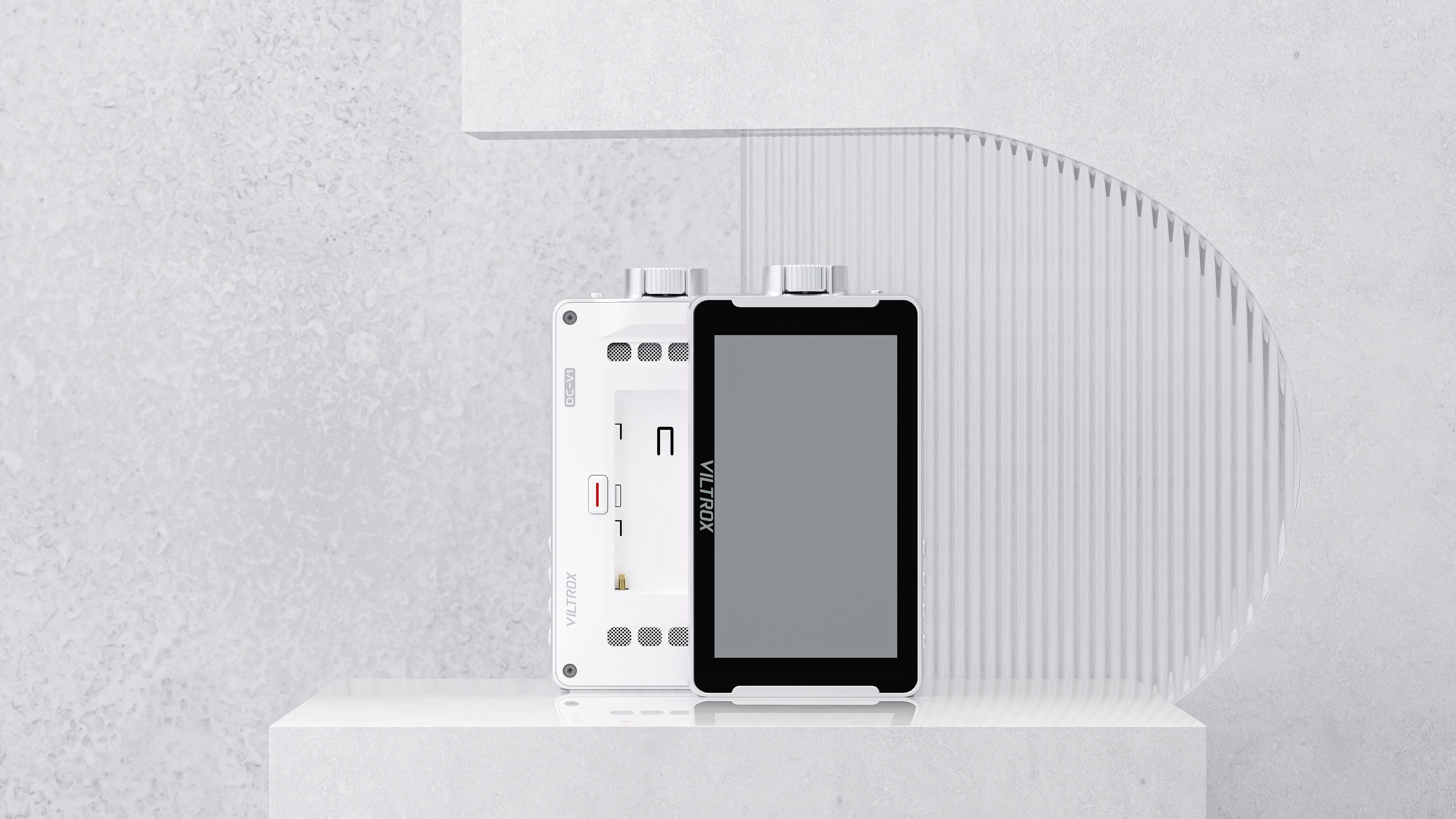

Viltrox DC-V1

The Viltrox DC-V1 is a 5.5-inch Full HD IPS touchscreen monitor with waveform and 3D LUT support, offering precision focus and real-time color grading for filmmakers and videographers.

The Viltrox DC-V1 is a lightweight, high-performance 5.5-inch Full HD IPS monitor designed for professional video monitoring. With a 1920x1080 resolution, 1000:1 contrast ratio, and 160° wide viewing angle, it delivers true-to-life colors with 100% sRGB/Rec.709 color accuracy. The 400 PPI pixel density ensures sharp, detailed visuals, while the 8-bit color depth provides smooth gradients.

This monitor features advanced monitoring tools like waveform, peak focus accuracy, and 3D LUT support, giving filmmakers full control over image quality. The intuitive touchscreen interface and programmable quick keys allow for an efficient workflow. It supports HDMI input and output, DC 12-18V or Type-C 5V/3A power supply, and NP-F series batteries, making it highly versatile for on-the-go shooting.

Key Features:

• 5.5-inch Full HD IPS Display: 1920x1080 resolution with 100% sRGB/Rec.709 for accurate color reproduction.
• Ultra-Lightweight & Portable: Weighing only 292.8g, perfect for handheld setups.
• Waveform & 3D LUT Support: Essential tools for precise image control and color grading.

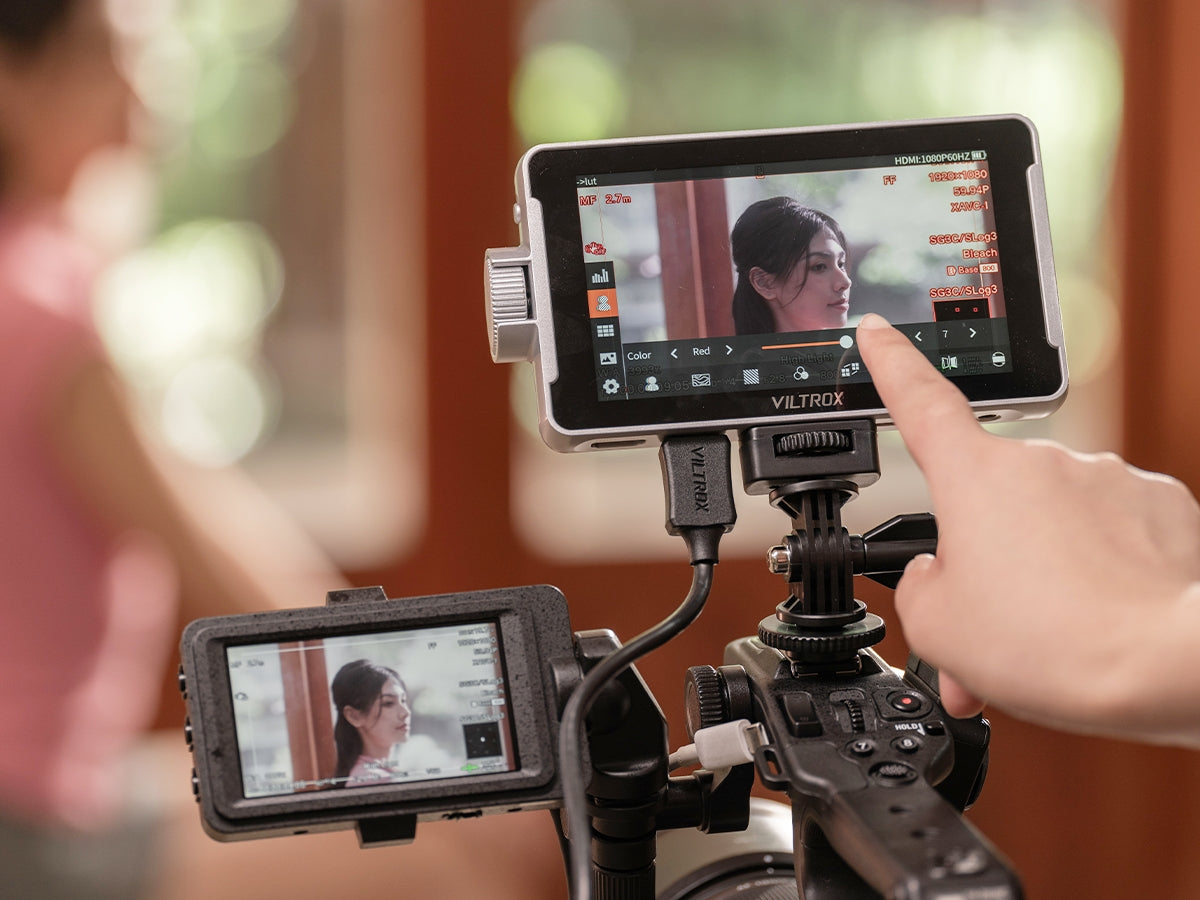

• Intuitive Touchscreen: Easy-to-use interface with programmable quick keys for efficiency.

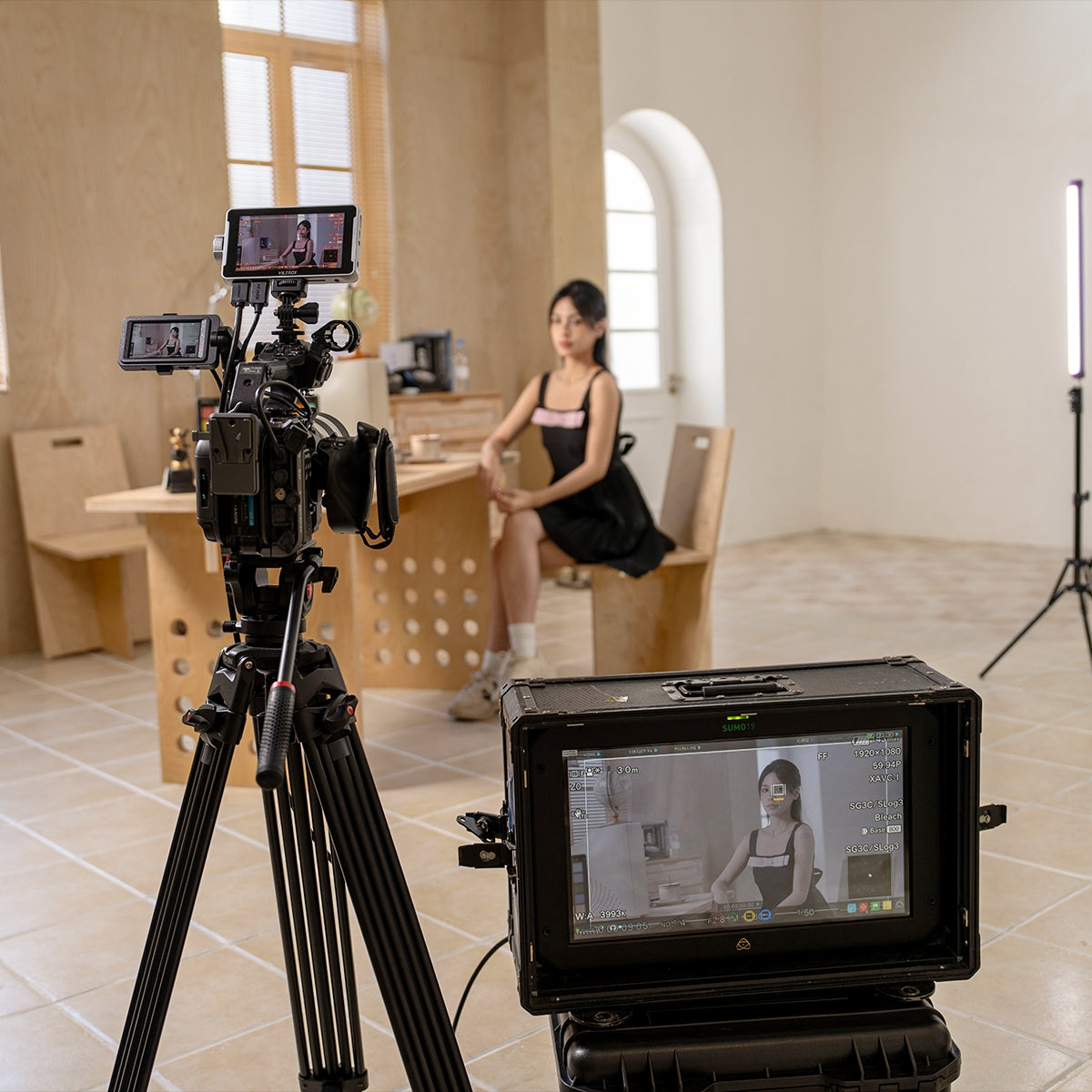

• Versatile Connectivity & Power Options: HDMI input/output, DC 12-18V, Type-C 5V/3A, and NP-F battery compatibility.

Specifications:

• Screen Size: 5.5-inch IPS Touchscreen
• Resolution: 1920x1080 pixels
• Contrast Ratio: 1000:1
• Refresh Rate: 60Hz
• Viewing Angle: 160°
• Pixel Density: 400PPI
• Color Depth: 8-bit
• Input/Output Interface: HDMI
• Audio Output: 3.5mm headphone jack
• Power Supply: DC 12-18V / Type-C 5V-3A / NP-F series batteries
• Dimensions: 165×91×28.5mm
• Weight: 292.8g
• Storage Temperature: 0℃~75℃
