Wooden camera - Unifield VCT Wedge Plate

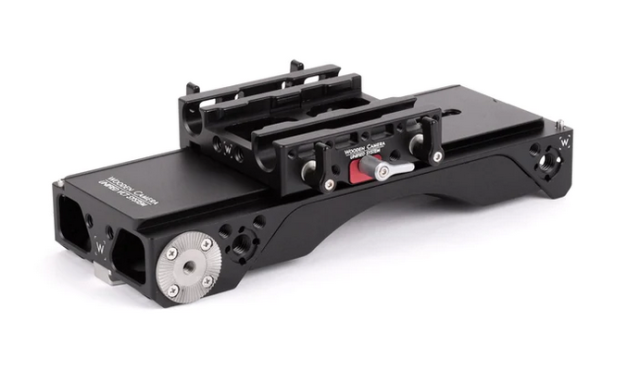

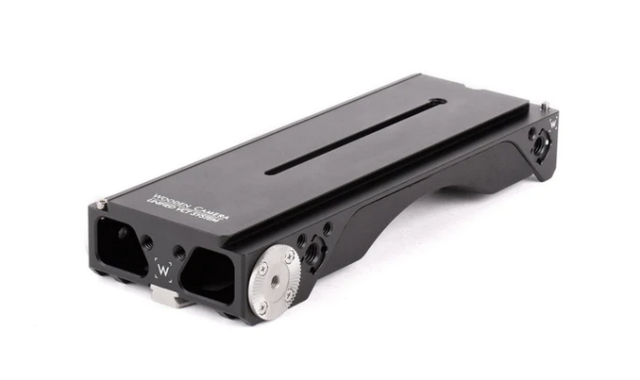

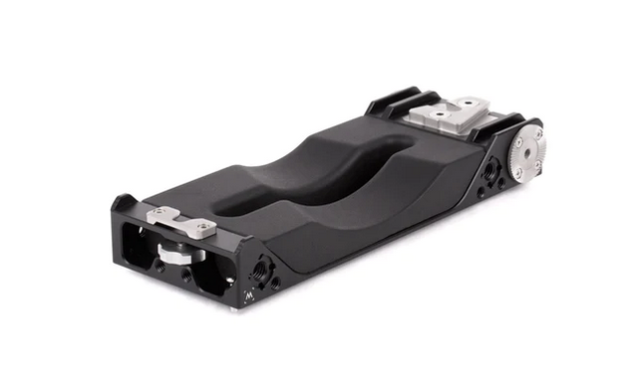

Unified VCT Wedge Plate is a Sony VCT-14 standard device that interfaces with the bottom of all Unified Baseplates. Our special reduced height ARRI dovetail shape allows each Unified camera rig to be quickly installed and balanced properly over your shoulder. Safety pin and stopper screws on the ends prevent accidental removal. Threaded M6 ARRI standard rosettes are found on each side and can be combined with our Rosette Standoffs and Rosette Arms for a quick, handheld configuration. Also present are 1/4-20 threaded holes and the ARRI standard accessory mounts (3/8-16 threaded hole with locating pins adjacent). At the rear of the wedge plate, a knob is present which can be tightened after installing onto the VCT-14 Tripod Plate to prevent any potential wiggle.

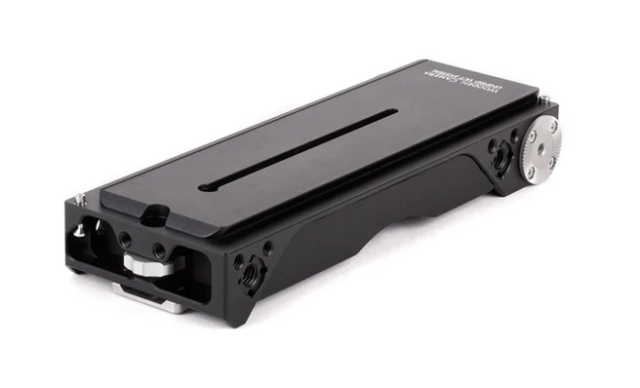

A key slot is also present on the top center for times when you might need to attach the Wedge Plate directly to the camera bottom using the included 1/4-20 and 3/8-16 low profile screws.

Included:
(2) 1/4-20 Low Profile Screws
(2) 3/8-16 Low Profile Screws

Specifications:
Weight: 610g (1.3 lbs)
Dimensions: 50.8 x 101.6 x 254 mm ( 2 x 4 x 10 in)
