Yamaha MG20XU

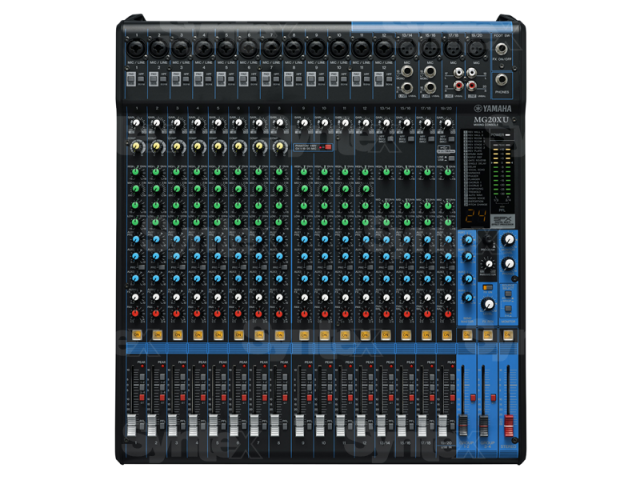

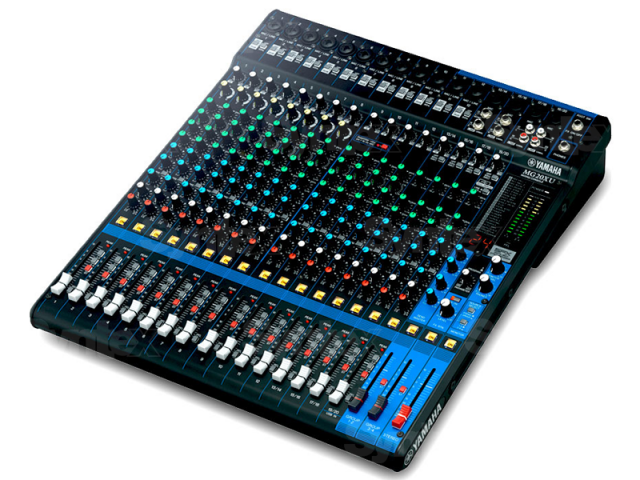

The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

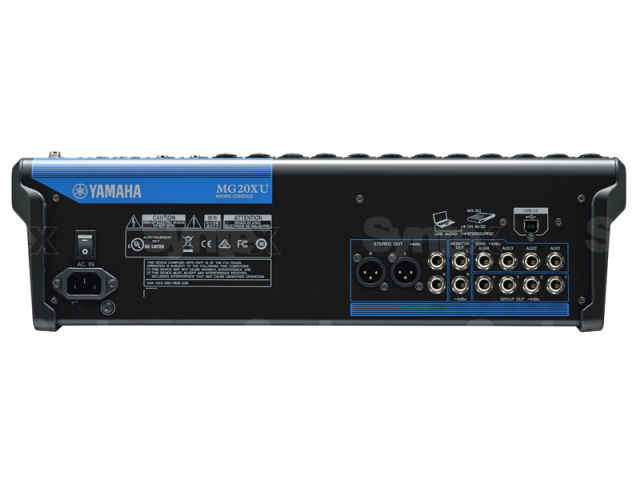

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.

Built-in Effects SPX Algorithm: 24 Programs
Parameter Control: 1 x Foot SW: (FX RTN CH On/Off)
Phantom Power +48 V
Digital I/O USB: USB Audio Class 2.0 Compliant
Sampling Frequency: Max 192 kHz
Bit Depth: 24-Bit
Input Channels 12 x Mono [Mic/Line]
4 x Mono/Stereo [Mic/Line]
Output Channels 2 x Stereo Out
1 x Monitor Out
1 x Headphone Out
4 x Aux Out
4 x Group Out
Bus Stereo: 1
Group: 4
Aux: 4
Pad 26 dB (Mono)
HPF 80 Hz, 12 dB/Oct (Mono/Stereo: Mic Only)
Compressor Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output Level: 0 dB to 7 dB
Attack Time: Approx 25 ms
Release Time: Approx 300 ms
Equalizer EQ High Gain: +15 dB / -15 dB, Frequency: 10 kHz Shelving
EQ Mid Gain: +15 dB / -15 dB, Frequency: Mono 250 Hz to 5 kHz Peaking, Stereo 2.5 kHz Peaking
EQ Low Gain: +15 dB / -15 dB, Frequency: 100 Hz Shelving
LED Peak LED: Turns On When Post EQ Signal Reaches 3 dB Below Clipping (Mono)
Level Meter: 2 x 12-Segment LED Meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total Harmonic Distortion 0.03% at +14 dBu (20 Hz to 20 kHz), GAIN Knob: Min, 0.005% at +24 dBu (1 kHz), GAIN Knob: Min
Frequency Response +0.5 dB / -1.5 dB (20 Hz to 48 kHz), Refer to the Nominal Output Level at 1 kHz, GAIN Knob: Min
Equivalent Input Noise -128 dBu (Mono Input Channel, Rs: 150 Ohms, GAIN Knob: Max)
Residual Output Noise -102 dBu (STEREO OUT, STEREO Master Fader: Min)
Crosstalk -78 dB
Power Requirement AC 100 to 240 VAC, 50 / 60 Hz
Power Consumption 36 W
Dimensions 17.5 x 5.1 x 19.7" / 444 x 130 x 500 mm
Net Weight 15.7 lb / 7.1 kg
