Yamaha MSP3A

The MSP series has become the new standard in reference monitors, and is now augmented by a new, compact member: the MSP3A. Although compact in size, the MSP3A faithfully delivers the high-quality reference sound you expect from the MSP series, and is an ideal choice not only for the small private studio or post-production setup, but also as a monitor…

More information

290 € with VAT 239.67 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The MSP series has become the new standard in reference monitors, and is now augmented by a new, compact member: the MSP3A. Although compact in size, the MSP3A faithfully delivers the high-quality reference sound you expect from the MSP series, and is an ideal choice not only for the small private studio or post-production setup, but also as a monitor for electronic musical instruments or surround reproduction.

Price is per 1pc, sold separately.

MSP3A powered monitor speaker provides faithful sound reproduction in a compact form The MSP3, a compact reference monitor speaker loved for many years, has been renewed as the MSP3A. This new reference monitor is the first in this series to include our Twisted Flare Port™ technology and provides an even clearer and tighter low-end while also realizing faithful sound reproduction.


The built-in 22W power amplifier is optimized for the speaker unit, which comprises a 10 cm (4") woofer and a 2.2 cm (0.8") tweeter, to achieve a clear and natural reference sound. The cabinet features a refined, simple design and weighs a mere 3.6 kilograms (7.9 pounds), making it easy to reposition and carry to different locations.

Just like its predecessor, this monitor has multiple input connectors and controls, and is compatible with a variety of optional brackets, making it useful for a wide range of uses. These include serious audio and music monitoring in settings from small-scale studios to broadcast and postproduction suites, as well as monitoring audio from digital musical instruments and ICT devices, and surround sound playback.

PACKAGE CONTENT

  • Power cord
  • Owner's Manual

SPECIFICATIONS

  • System Type: Powered speaker
  • Frequency Response: (-10 dB) 67 Hz - 22 kHz
  • Crossover Frequency: 4kHz
  • Maximum Output Level (Measured peak、IEC noise@1m): 99dB SPL
  • Power Consumption: 30W
  • Dimensions (W x H x D): System (maximum) 144 x 236 x 166 mm
  • Weight: 3.6 kg
  • Maximum Output THD 0.1%, 1kHz ,RL=4Ω: 22W
  • Input Sensitivity, Input Impedance: LINE 1: -10 dBu, 10kΩ (RCA)
  • Input Sensitivity, Input Impedance: LINE 2: +4.0 dBu, 10kΩ (COMBO)

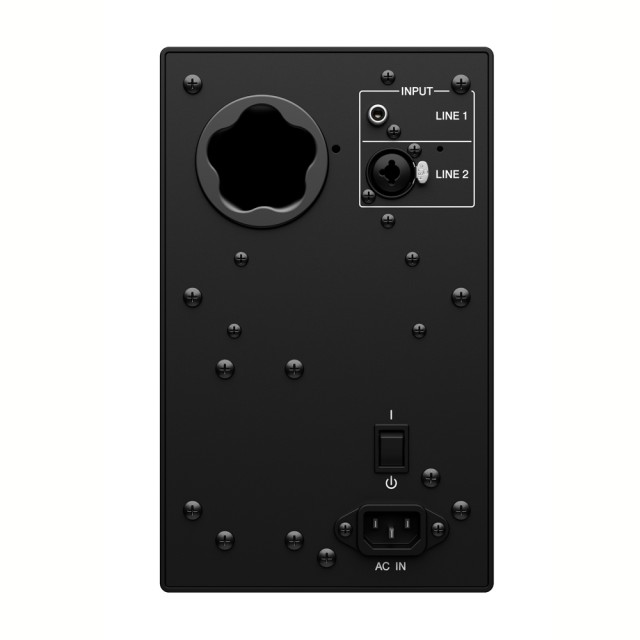

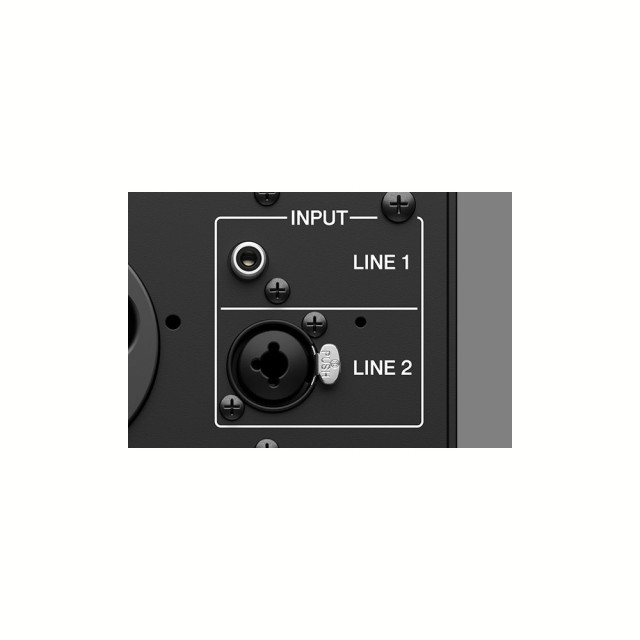

  • Input Connector LINE 1: RCA
  • Input Connector LINE 2: COMBO (XLR/PHONE)

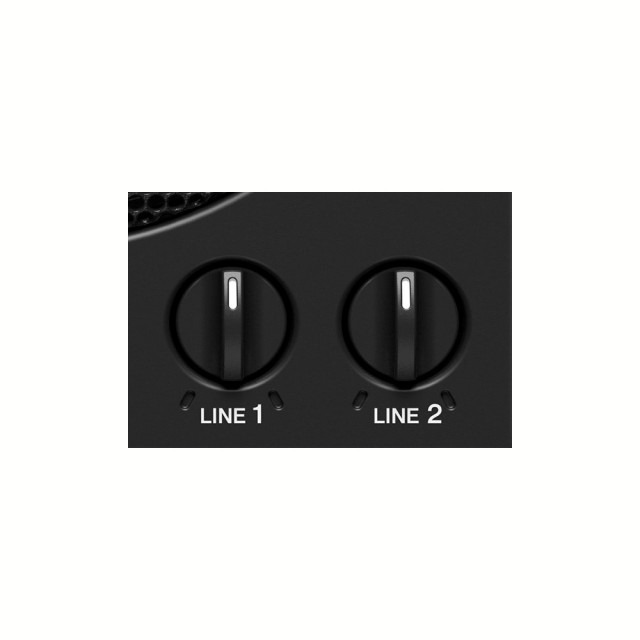

  • Level control: LINE1,LINE2
  • Indicator: Green LED
  • Enclosure: 2Way, Bass-reflex type
  • HF (Tweeter): 0.8"(2.2 cm)Dome
  • LF (Woofer): 4"(10 cm)Cone
  • Impedance HF (Tweeter): 4Ω
  • Impedance LF (Woofer): 4Ω
  • Impedance LINE 1: -10 dBu, 10kΩ (RCA)
  • Impedance LINE 2: +4.0 dBu, 10kΩ (COMBO)
  • Power rating: NOISE 20W
  • Power rating: PGM 40W
  • Power rating: MAX 80W
