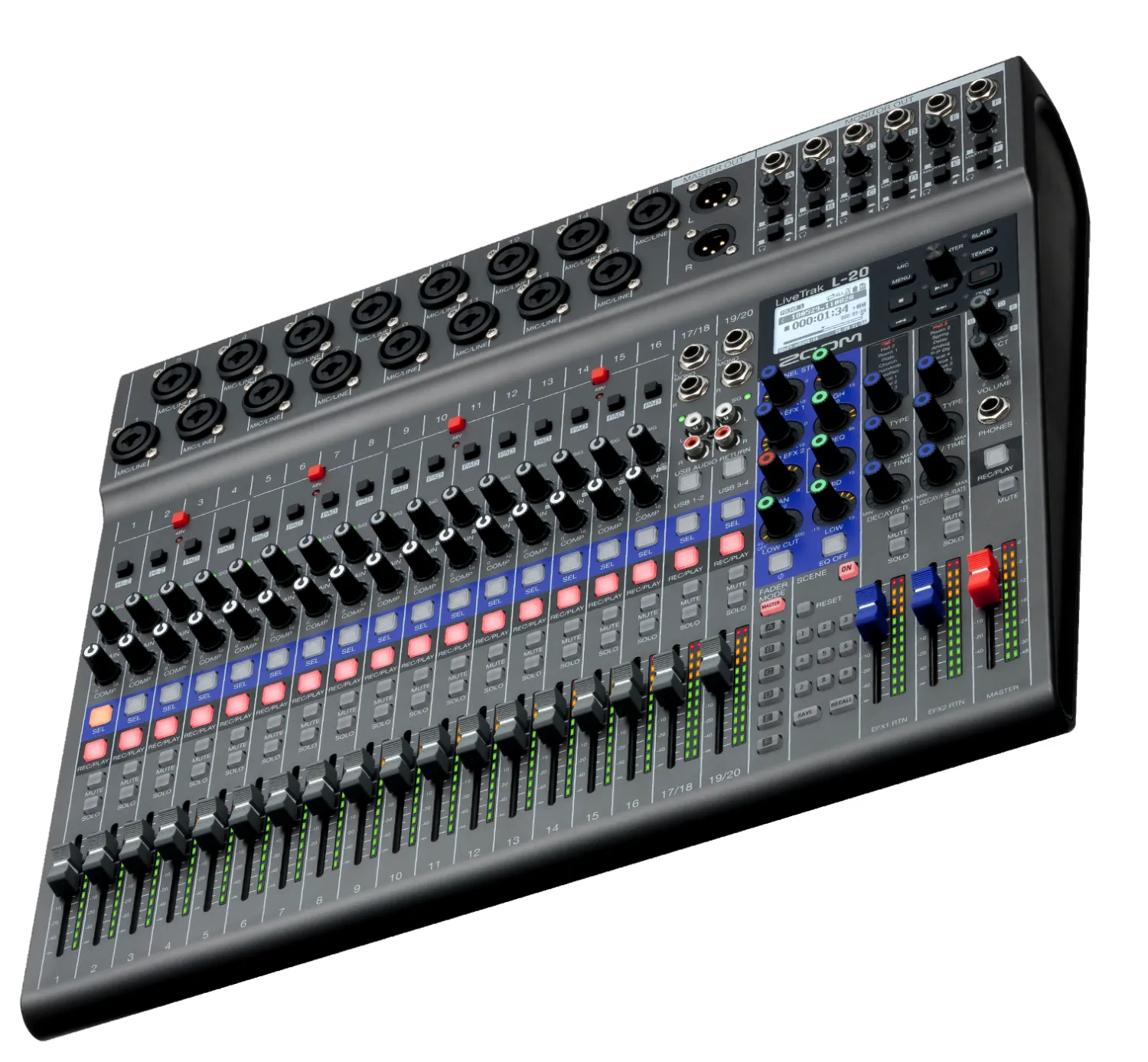

ZOOM L-20 DIGITAL MIXING CONSOLE + RECORDER
The LiveTrak L-20 is a new digital mixing console that offers creators everything they need to mix, monitor and record complex productions. With 20 discrete audio channels and six individual monitoring mixes, it is designed for more ambitious projects.
DISTINCTIVE FEATURES
20 discrete channels (16 mono and 2 stereo) with XLR and 6.3 mm jack connectors
Audio recording at up to 24 bit/96 kHz resolution to SD cards
48 V phantom power supply
Hi-Z connectivity (channels 1 and 2)
26 dB pad (channels 3 to 16)
Internal compression control (channels 1 to 16)
Solo pushbuttons for individual channels
Variable frequency upper passband
Main outputs plus 6 customizable monitoring outputs
Separate headphone output for sound engineer
Scene storage function (up to 9 scenes at once)
20 internal chorus, delay and reverb effects with adjustable parameters
Two effect buses
Built-in slate microphone
Class-compliant mode (for iOS compatibility)
Compatible with Remote Mixer app for iPad
Auto start/stop recording function
Pre-Record function
Import and export project via USB 2.0 interface
Compatible features for ZOOM FS01 footswitch
Automatic power saving function

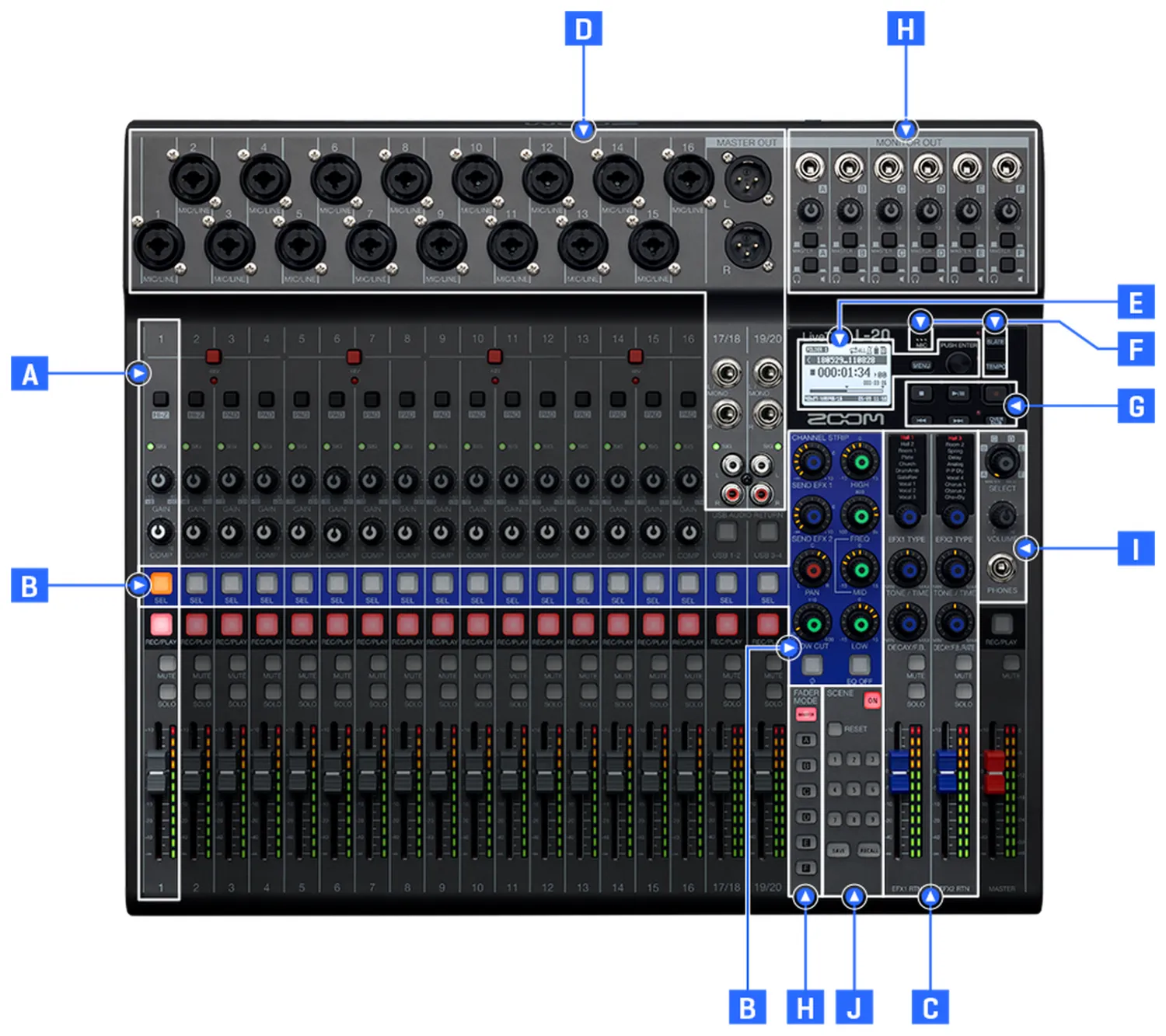

A
CHANNEL STRIP
B
EQUALIZER CONTROL
C
2 EFX SENDS
D
RICH CONNECTIVITY
E
DISPLAY AND CONTROLS
F
SLATE MICROPHONE AND METRONOME
G
TRANSPORT BUTTONS AND OVERDUB FUNCTION
H
6 INDIVIDUAL MONITORING MIXES
I
HEADPHONE OUTPUT FOR FOH
J
SETTING CUSTOM SCENES
20 INPUTS FOR A RICHER AUDIO EXPERIENCE
With LiveTrak L-20, you can mix in style. It has 20 inputs (16 mono mic/line inputs and two stereo inputs), each with an independent 3-band EQ with parametric mids. Its 16 mono inputs offer separate compression control.
CREATE SIX CUSTOM MONITOR MIXES
With six independent monitoring outputs, every musician can have their own mix, including effects. These can be easily switched from the powerful headphone output to the symmetrical line outputs for stage monitors.
AND ONE FOR THE FOH!
The LiveTrak L-20 features a dedicated seventh output for FOH sound engineers. This allows the sound engineer to monitor the main mix and any of the submixes and adjust them to the musician's needs.
LARGE BEAUTIFUL INTERFACE
Although the LiveTrak L-20 was designed as an independent recording and mixing console, it can also be used as a USB audio interface with 22 inputs and 4 outputs. Audio interface mode allows you to route inputs to any DAW or streaming software, even when recording to an SD card.

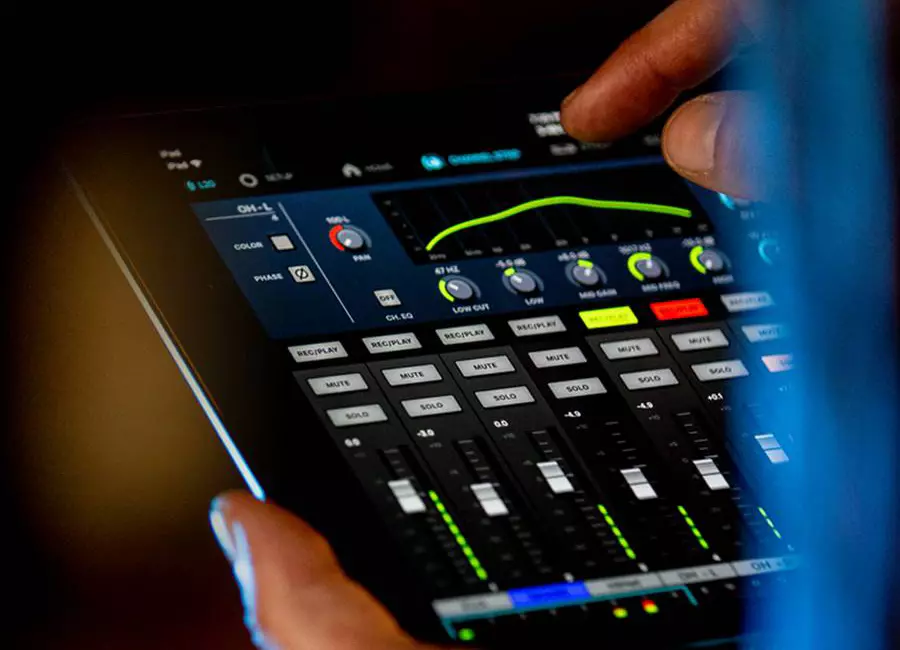

WIRELESS MIXING
LiveTrak L-20 can be controlled wirelessly* via the iOS mobile app, which supports most of its features including fader levels and mode, scenes, equalizer, EFX sends, returns, parameters and more. You can even manage your library of effects and scenes right on your mobile device. *A wireless Zoom adapter (e.g. BTA-1) is required.
