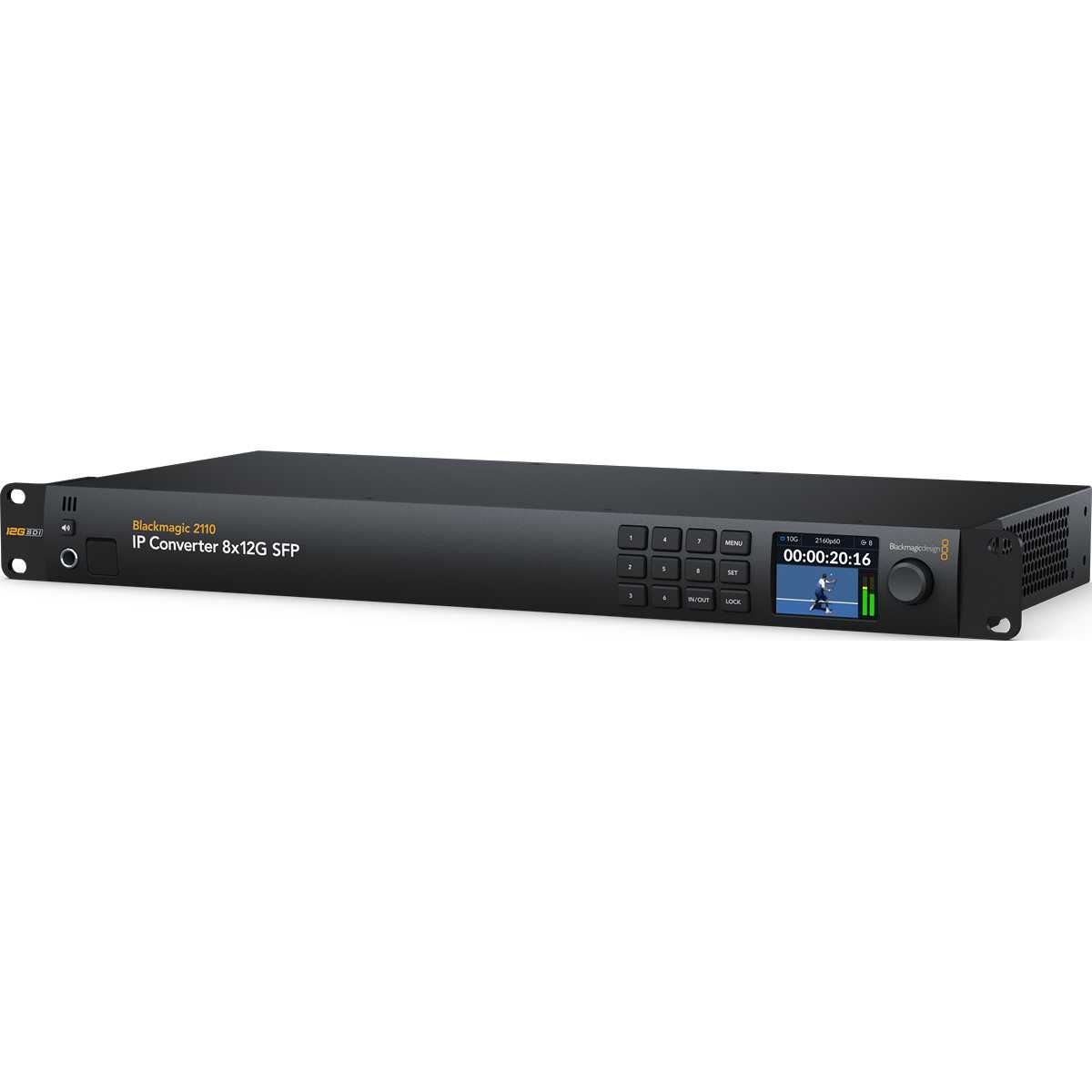

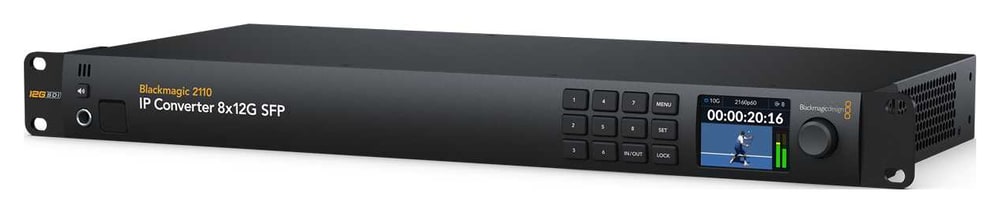

Blackmagic Design 2110 IP Converter 8x12G SFP

The Blackmagic Design 2110 IP Converter 8x12G SFP is a versatile solution for converting 3 separate 3G-SDI video channels to 2110 IP systems. It supports 10G Ethernet for high-speed, simultaneous video input and output, with an elegant front panel for monitoring and diagnostics. Ideal for integrating SDI devices into IP workflows.

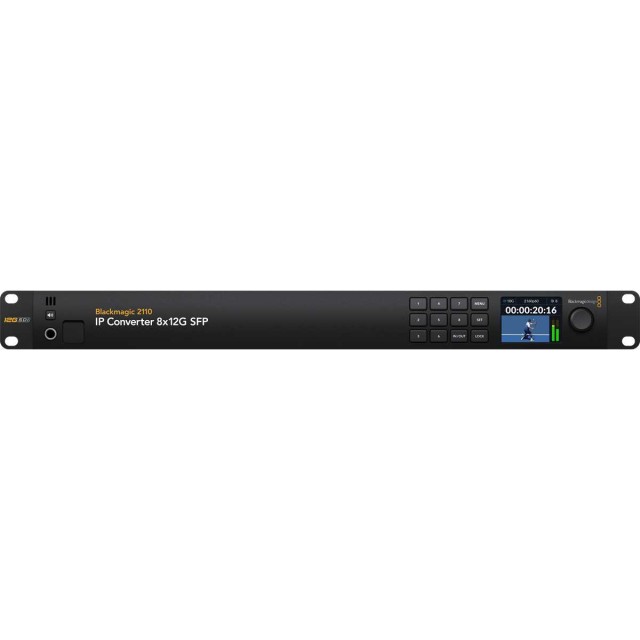

The Blackmagic Design 2110 IP Converter 8x12G SFP enables seamless conversion of 3 separate 3G-SDI devices to SMPTE 2110 IP video systems. Equipped with a 10G Ethernet connection, this converter supports 3 video input channels and 3 output channels simultaneously. Each channel has independent SDI inputs and outputs, allowing for connection with up to 6 different SDI devices. With loop outputs for each 3G-SDI input, it integrates easily into existing SDI setups. It features a reference output timed to the 2110 PTP clock and includes a front panel with a color LCD for monitoring, menus, and diagnostics.

Key Features

• 10G Ethernet: Handles 3 video channels for input and output.
• Independent SDI Inputs/Outputs: Connect up to 6 SDI devices.
• Loop Outputs: For integration within existing SDI systems.
• Reference Output: Timed to the 2110 PTP clock.

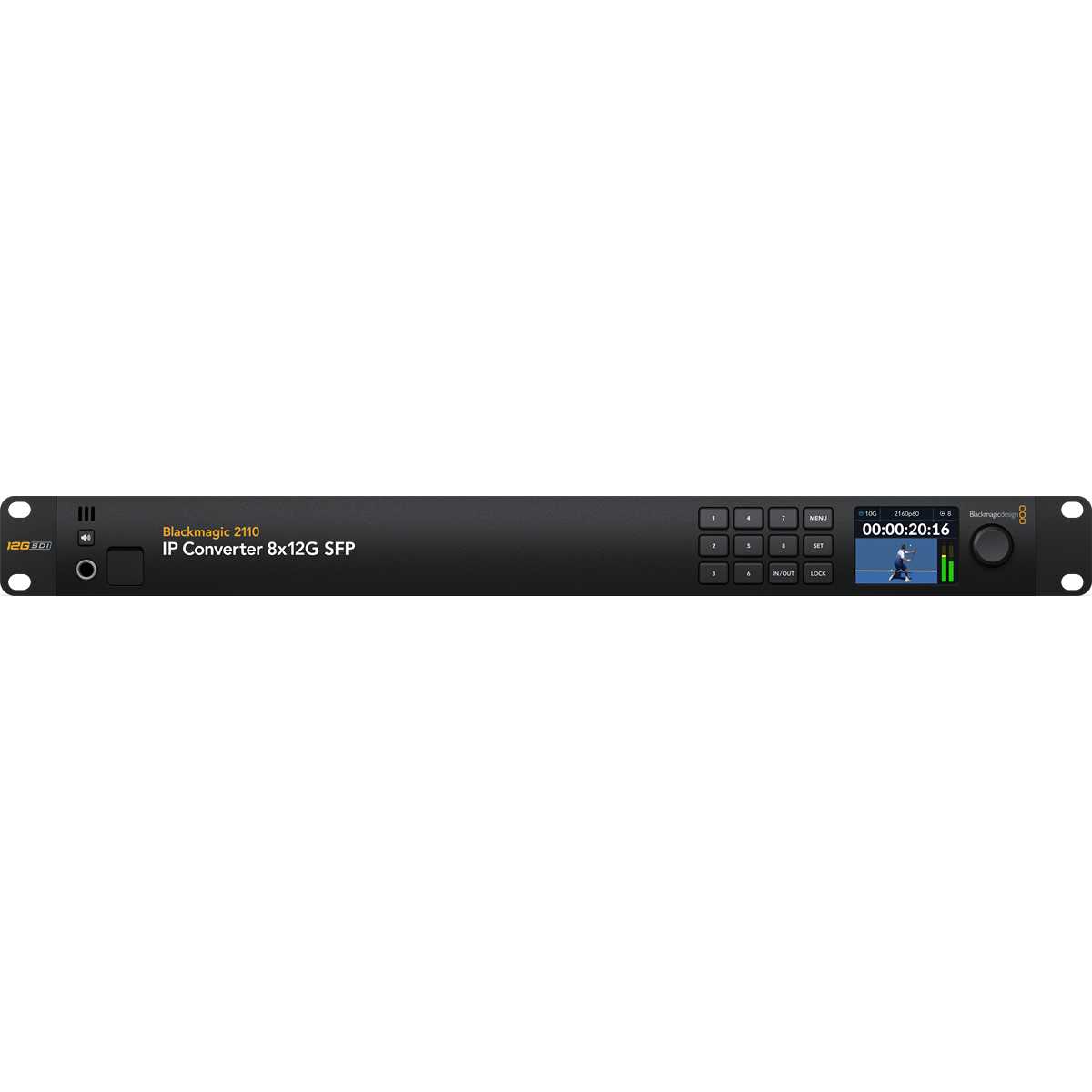

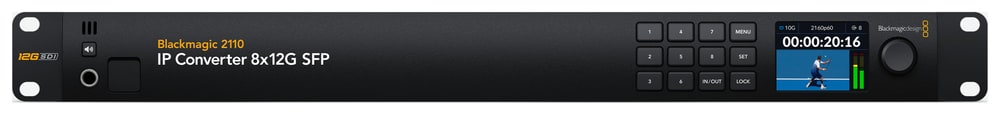

• Color LCD Front Panel: For monitoring and routing IP inputs.

Specifications

• SDI Inputs: 3
• SDI Loop Outputs: 3
• SDI Outputs: 3
• SDI Audio Inputs: 16 channels embedded audio.
• 10G Ethernet Port: 1 x 10Gb/s PoE+ RJ‑45, supports 10/100/1000/10G BASE-T.
• Reference Output: Tri-Sync or Black Burst.
• Computer Interface: USB-C for updates, configuration, and control.
• Supported Video Standards: HD Video standards up to 1080p60.
• SDI Compliance: Includes SMPTE 259M, 292M, 424M, and others.
• Audio Sampling: 48 kHz, 24 bit.
• Color Precision: 8, 10-bit RGB 4:4:4, YUV 4:2:2.
• IP Video Compliance: SMPTE 2110 standards, IEEE 1588-2008 PTP v2.
• NMOS Support: IS-04, IS-05, BCP-002-01, BCP-004-01.

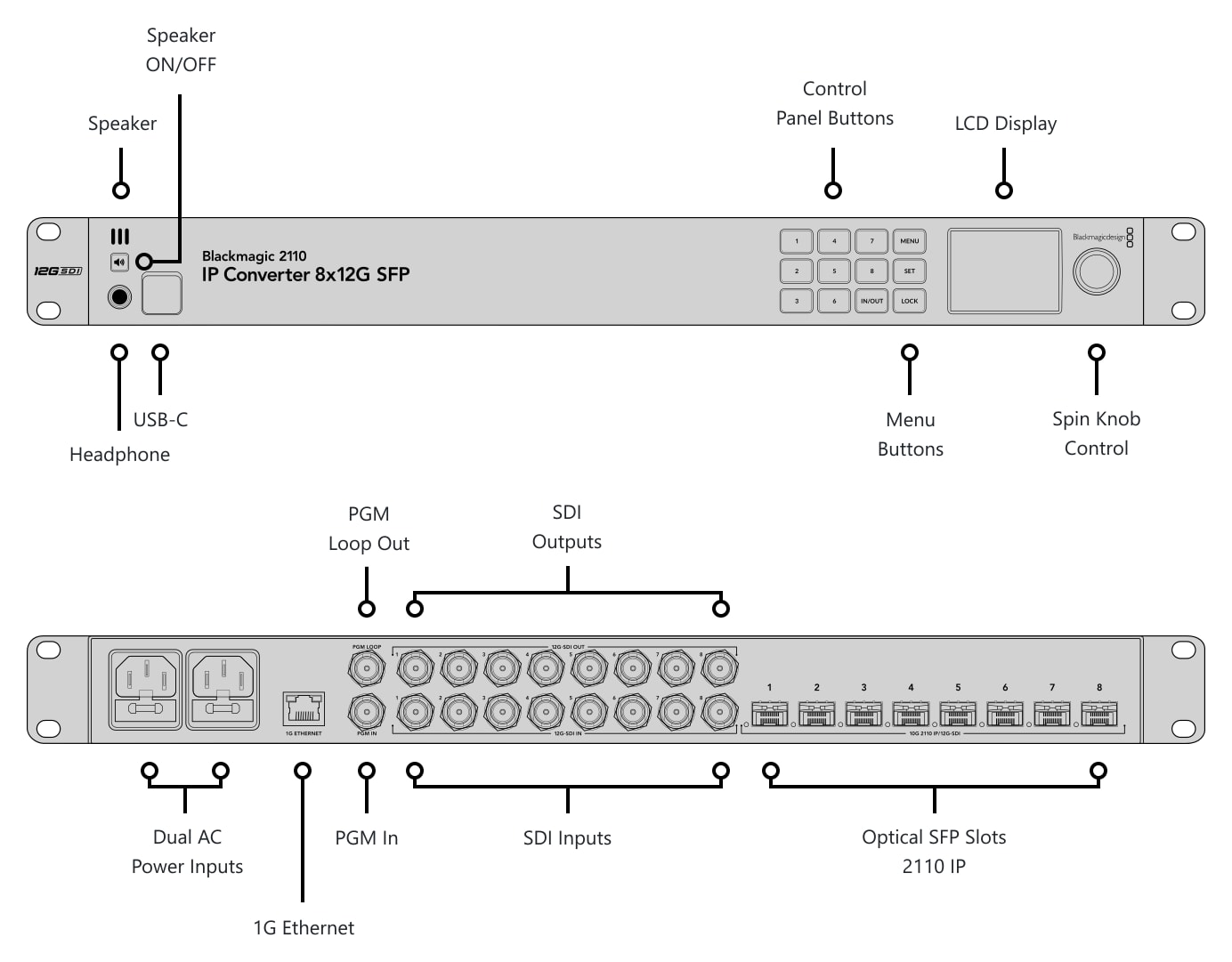

• Built-in Control Panel: 6 buttons, spin knob, 2.2 inch color display.
• Power Requirements: 20W, AC 100 - 240V, PoE+ support.
• Operating Temperature: 5° to 40 °C.
• Storage Temperature: -20° to 60 °C.
• Humidity: 0% to 90% non-condensing.

What's Included

• Blackmagic 2110 IP Converter 8x12G SFP
• Welcome Wallet: Includes QR code for software download.
