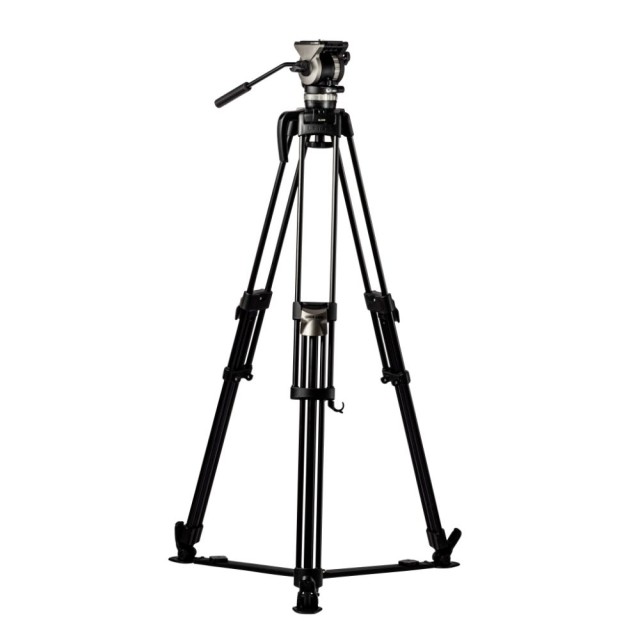

Libec NX-300Q

The Libec NX-300Q is a tripod assembly with a bottom spacer. It consists of QL40B tripod legs, NH30 head, SP-1B spreader bar and sliding quick release plate Long Plate S. Also included is the RC-40 bag.

QL40B tripod

The locking mechanism of the QL40B tripod allows users to conveniently adjust the height using the leg locks located at the top of the tripod. The flip-type Quick Lock shape is ergonomically designed, making it easy to grasp with fingers from both the bottom and sides. This allows for quick and easy installation.

Using the included special screwdriver, users can easily adjust the strength of the tripod lock. A handle is included for easy carrying. The handle can be easily removed when not in use.

Despite being a long aluminum tripod, the QL40B weighs only 2.6 kg. When using the carry handle, it feels much lighter than the previous RT30B model. The QL40B has a 40 kg carrying capacity, providing a higher capacity than other quick release tripods. It can safely carry heavier camera systems without any problems. The maximum height of the QL40B is approximately 30 cm higher than the current RT30B tripod with a 75mm base. With the video head and bottom strut, this tripod can reach heights of up to 198 cm. Since the camera lens can easily exceed 200 cm in height, high angle shots can be achieved without the need for additional accessories.

When the Quick Lock is released, the legs extend smoothly without resistance, allowing the tripod to be mounted quickly and smoothly. A 1/4" and 3/8" threaded accessory port is located on three sides of the tripod base, providing a convenient way to securely mount accessories such as monitors and lights. With safety in mind, the tripod legs are carefully designed to prevent users from getting their fingers pinched when intentionally or unintentionally folding the tripod.

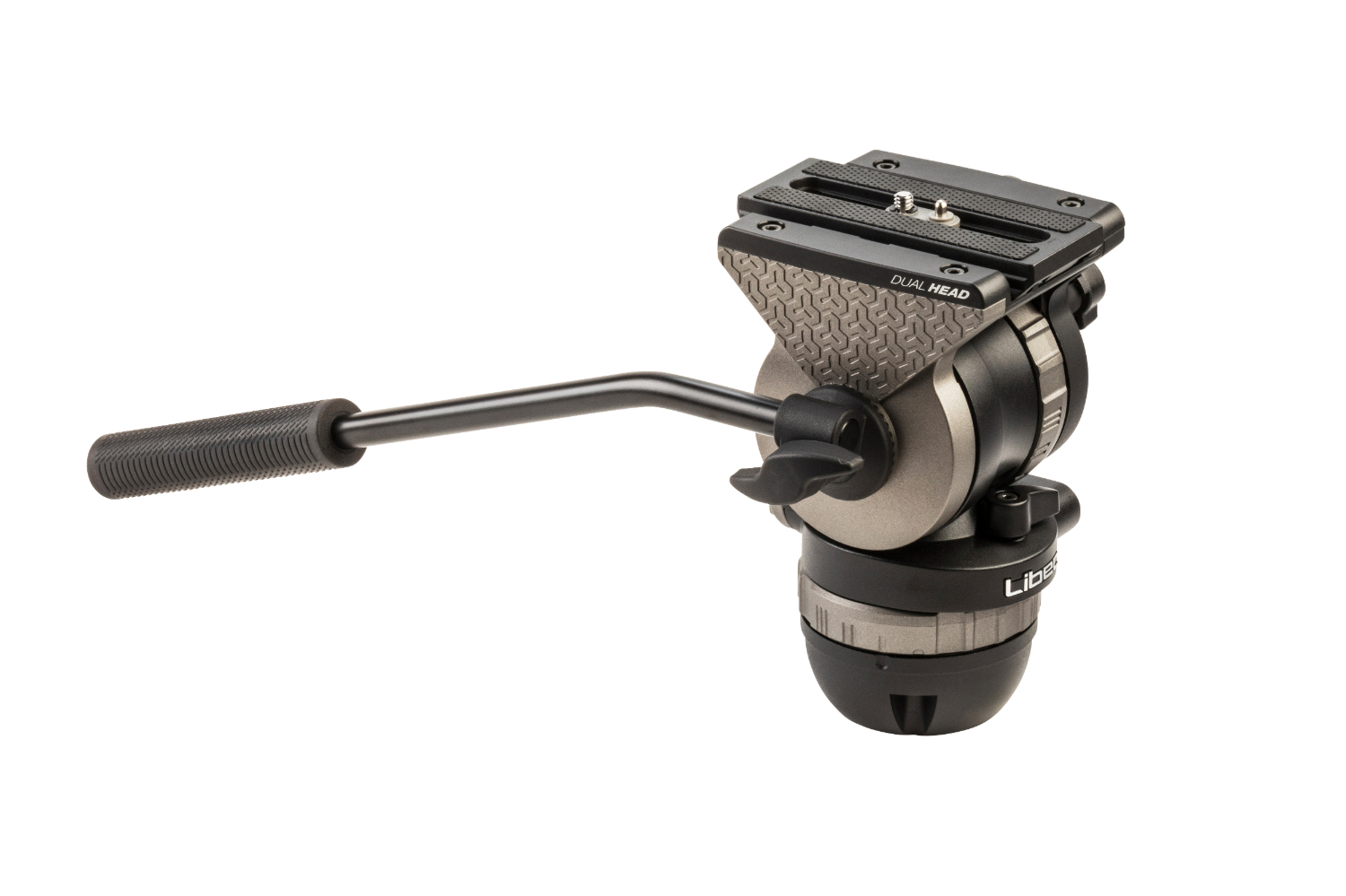

NH30 head

A video head (for 75mm ball and flat mount) with a celebration lever and a 10kg load capacity. It is equipped with 1/4 and 3/8" threads on the side of the base, e.g. for connecting a mounting arm, monitor or headlamp. The loudspeaker lever can be attached to either side. The sliding quick release plate is also compatible with the TH-M monopod, TH-G3 stabilizer and other accessories. A spirit level with LED backlighting is standard.

SP-1B spreader bar

Lightweight bottom spacer for Libec tripods.

Sliding quick release plate Long Plate S

The plate is also compatible with the TH-M monopod, TH-G3 stabilizer and other accessories. A spirit level with LED backlight is a must.

Technical Specifications:

• Counterweight range: 0 to 10 kg (C.G. 55 mm)
• Load capacity: 10 kg
• Counterweight: free plus 5 feet
• Tilt friction range: free plus 3 feet
• Tilt system: multi-layer metal construction
• Tilt angle: +90° to -70°
• Temperature range: -40°C to +60°C
• Bubble level: backlit
• Plate: sliding plate compatible with Manfrotto and Sachtler heads
• Travel range: +/- 30 mm
• Head base: 75 mm ball/flat base
• Plate connection: 1/4" screw with video pin
• Accessory connection: 1/4" and 3/8" threads
• Replacement screw: 1/4" and 3/8" screws
• Weight: 5.2 kg
• Height: 71.5 to 198.3 cm
• Head connection: 75 mm bowl
• Pipe material: Aluminum
• Section: 2 stages
